822B Series
Manufacturer: NorComp Inc.
Beta
⌘K
CIRCULAR CONNECTOR, QUIK-LOQ 822B SERIES, PANEL MOUNT RECEPTACLE, 4 CONTACTS, SOLDER SOCKET
| Part | Current Rating (Amps) | Fastening Type | Contact Finish - Mating | Number of Positions | Shielding | Mounting Feature | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Color | Contact Material | Connector Type | Primary Material | Voltage Rating | Insert Material | Shell Material | Mounting Type | Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Shell Finish | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Backshell Material, Plating | Features | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Applications | Cable Opening | Cable Opening |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | 15 A | Push-Pull | Gold | 4 | Shielded | Bulkhead - Front Side Nut | 7 µin | 0.178 µm | Silver | Copper Alloy | Receptacle Female Sockets | Metal | 610 V | Polyphenylene Sulfide (PPS) | Brass | Panel Mount | Keyed | -40 C | 200 °C | IP50 - Dust Protected | Nickel | |||||||||||||

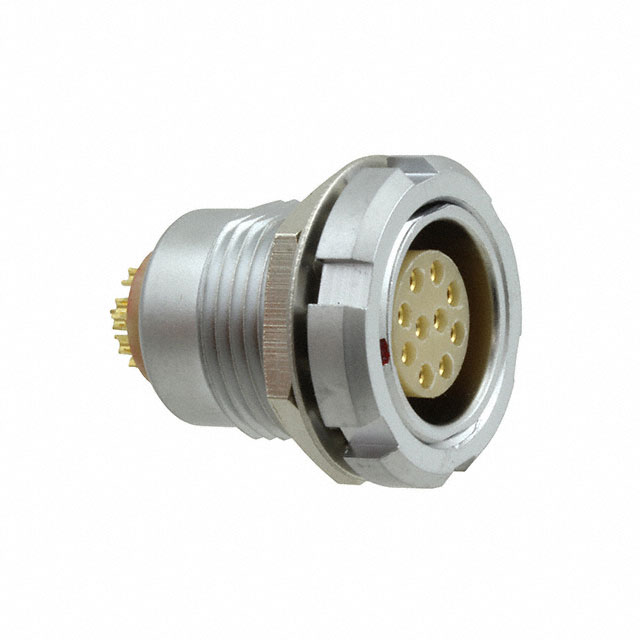

 NorComp Inc. | 8 A | Push-Pull | Gold | 10 | Shielded | Bulkhead - Front Side Nut | 7 µin | 0.178 µm | Silver | Copper Alloy | Receptacle Female Sockets | Metal | 500 V | Polyphenylene Sulfide (PPS) | Brass | Panel Mount | Keyed | -40 C | 200 °C | IP50 - Dust Protected | Nickel | |||||||||||||
NorComp Inc. | 6.5 A | Push-Pull | Gold | 14 | Shielded | 7 µin | 0.178 µm | Black Silver | Copper Alloy | Receptacle Female Sockets | Metal | 380 V | Polyphenylene Sulfide (PPS) | Brass | Free Hanging (In-Line) | Keyed | -40 C | 200 °C | IP50 - Dust Protected | Nickel | 9.3 mm | 0.402 in | 10.2 mm | 0.366 in | Brass Chrome | Backshell Strain Relief | ||||||||
 NorComp Inc. | 6 A | Push-Pull | Gold | 16 | Shielded | 7 µin | 0.178 µm | Black Silver | Copper Alloy | Receptacle Female Sockets | Metal | 315 V | Polyphenylene Sulfide (PPS) | Brass | Free Hanging (In-Line) | Keyed | -40 C | 200 °C | IP50 - Dust Protected | Nickel | 9.3 mm | 0.402 in | 10.2 mm | 0.366 in | Brass Chrome | Backshell Strain Relief | ||||||||
NorComp Inc. | 6 A | Push-Pull | Gold | 16 | Shielded | 7 µin | 0.178 µm | Black Silver | Copper Alloy | Receptacle Female Sockets | Metal | 315 V | Polyphenylene Sulfide (PPS) | Brass | Free Hanging (In-Line) | Keyed | -40 C | 200 °C | IP50 - Dust Protected | Nickel | Brass Chrome | Backshell Strain Relief | 5.3 mm | 0.244 " | 6.2 mm | 0.209 in | ||||||||
NorComp Inc. | 17 A | Push-Pull | Gold | Shielded | 7 µin | 0.178 µm | Black Silver | Copper Alloy | Receptacle Female Sockets | Metal | 800 V | Polyphenylene Sulfide (PPS) | Brass | Free Hanging (In-Line) | Keyed | -40 C | 200 °C | IP50 - Dust Protected | Nickel | 9.3 mm | 0.402 in | 10.2 mm | 0.366 in | Brass Chrome | Backshell Strain Relief | |||||||||

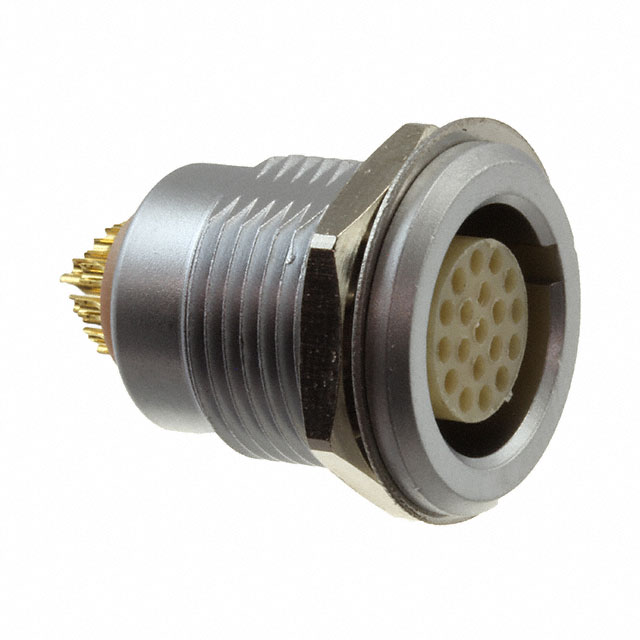

 NorComp Inc. | Push-Pull | Gold | 19 | Shielded | Bulkhead - Rear Side Nut | 7 µin | 0.178 µm | Silver | Copper Alloy | Receptacle Female Sockets | Metal | 280 V | Polyphenylene Sulfide (PPS) | Brass | Panel Mount | Keyed | -40 C | 200 °C | IP50 - Dust Protected | Nickel | Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement | |||||||||||||
NorComp Inc. | 6.5 A | Push-Pull | Gold | 14 | Shielded | 7 µin | 0.178 µm | Black Silver | Copper Alloy | Receptacle Female Sockets | Metal | 380 V | Polyphenylene Sulfide (PPS) | Brass | Free Hanging (In-Line) | Keyed | -40 C | 200 °C | IP50 - Dust Protected | Nickel | 6.3 mm | 0.283 " | 7.2 mm | 0.248 " | Brass Chrome | Backshell Strain Relief | ||||||||
 NorComp Inc. | 8 A | Push-Pull | Gold | 10 | Shielded | Bulkhead - Rear Side Nut | 7 µin | 0.178 µm | Silver | Copper Alloy | Plug Male Pins | Metal | 500 V | Polyphenylene Sulfide (PPS) | Brass | Panel Mount | Keyed | -40 C | 200 °C | IP50 - Dust Protected | Nickel | 0.531 in | 13.5 mm | |||||||||||

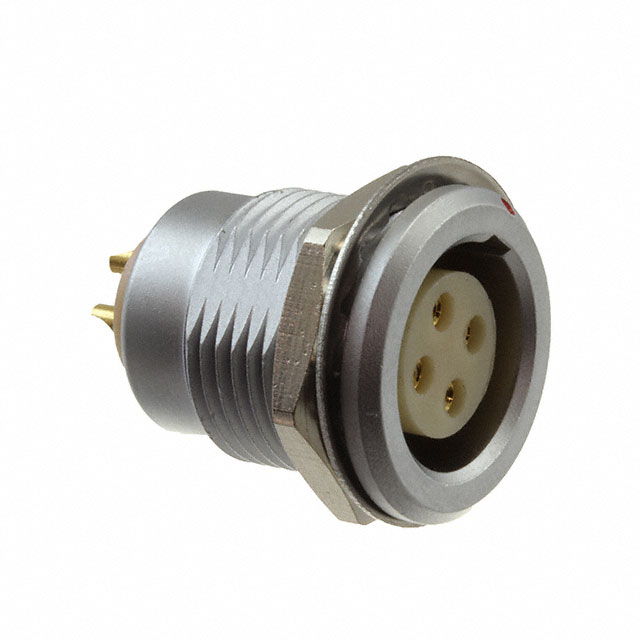

 NorComp Inc. | Push-Pull | Gold | 4 | Shielded | Bulkhead - Rear Side Nut | 7 µin | 0.178 µm | Silver | Copper Alloy | Receptacle Female Sockets | Metal | 610 V | Polyphenylene Sulfide (PPS) | Brass | Panel Mount | Keyed | -40 C | 200 °C | IP50 - Dust Protected | Nickel | Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement |
