TPS728 Series

Catalog

200-MA, LOW-DROPOUT VOLTAGE REGULATOR WITH LOW-IQ & ENABLE

Part	Control Features	Voltage - Input (Max) [Max]	Supplier Device Package	Output Configuration	Number of Regulators	Current - Output	Voltage Dropout (Max) [Max]	Voltage - Output (Min/Fixed)	Operating Temperature [Max]	Operating Temperature [Min]	PSRR [Min]	PSRR [Max]	Current - Quiescent (Iq)	Protection Features	Current - Supply (Max) [Max]	Mounting Type	Package / Case	Board Type	Supplied Contents	Voltage - Input [Min]	Voltage - Input [Max]	Contents	Voltage - Output	Channels per IC	Regulator Type	Utilized IC / Part
Texas Instruments TPS728175295YZUT	Enable	6.5 V	5-DSBGA	Positive	1	0.2 A	0.4 V	1.75 V 2.95 V	125 °C	-40 C	40 dB	65 dB	80 µA	Over Current Over Temperature Under Voltage Lockout (UVLO)	120 µA	Surface Mount	5-UFBGA DSBGA

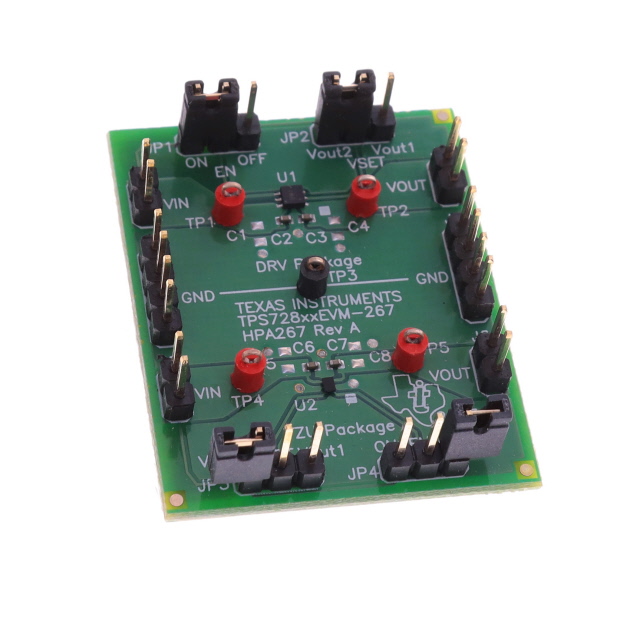

Texas Instruments TPS728185315EVM267						0.2 A												Fully Populated	Board(s)	2.7 V	6.5 V	Board(s)	1.85 V 3.15 V	1	Positive Fixed	TPS728185315
Texas Instruments TPS728120150DRVT	Enable	6.5 V	6-WSON (2x2)	Positive	1	0.2 A	0.4 V	1.2 V 1.5 V	125 °C	-40 C	40 dB	65 dB	80 µA	Over Current Over Temperature Under Voltage Lockout (UVLO)	120 µA	Surface Mount
Texas Instruments TPS728120150DRVR	Enable	6.5 V	6-WSON (2x2)	Positive	1	0.2 A	0.4 V	1.2 V 1.5 V	125 °C	-40 C	40 dB	65 dB	80 µA	Over Current Over Temperature Under Voltage Lockout (UVLO)	120 µA	Surface Mount
Texas Instruments TPS728100180DRVR	Enable	6.5 V	6-WSON (2x2)	Positive	2	0.2 A	0.4 V	1 V 1.8 V	125 °C	-40 C	40 dB	65 dB	80 µA	Over Current Over Temperature Under Voltage Lockout (UVLO)		Surface Mount
Texas Instruments TPS728180300YZUT	Enable	6.5 V	5-DSBGA	Positive	1	0.2 A	0.4 V	1.8 V 3 V	125 °C	-40 C	40 dB	65 dB	80 µA	Over Current Over Temperature Under Voltage Lockout (UVLO)	120 µA	Surface Mount	5-UFBGA DSBGA
Texas Instruments TPS728180300YZUR	Enable	6.5 V	5-DSBGA	Positive	1	0.2 A	0.4 V	1.8 V 3 V	125 °C	-40 C	40 dB	65 dB	80 µA	Over Current Over Temperature Under Voltage Lockout (UVLO)	120 µA	Surface Mount	5-UFBGA DSBGA
Texas Instruments TPS728185295YZUR	Enable	6.5 V	5-DSBGA	Positive	1	0.2 A	0.4 V	1.85 V 2.95 V	125 °C	-40 C	40 dB	65 dB	80 µA	Over Current Over Temperature Under Voltage Lockout (UVLO)	120 µA	Surface Mount	5-UFBGA DSBGA
Texas Instruments TPS728180285YZUR	Enable	6.5 V	5-DSBGA	Positive	1	0.2 A	0.4 V	1.8 V 2.85 V	125 °C	-40 C	40 dB	65 dB	80 µA	Over Current Over Temperature Under Voltage Lockout (UVLO)	120 µA	Surface Mount	5-UFBGA DSBGA
Texas Instruments TPS728185315DRVR	Enable	6.5 V	6-WSON (2x2)	Positive	1	0.2 A	0.4 V	1.85 V 3.15 V	125 °C	-40 C	40 dB	65 dB	80 µA	Over Current Over Temperature Under Voltage Lockout (UVLO)	120 µA	Surface Mount
