M2023BB Series

Catalog

SWITCH TOGGLE DPDT 6A 125V

Part	Actuator Material	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Circuit	Actuator Length [x]	Panel Cutout Dimensions [diameter]	Bushing Thread	Switch Function	Voltage Rating - DC	Actuator Type	Mounting Type	Current Rating (Amps)	Termination Style	Voltage Rating - AC	Features
NKK Switches M2023BB1W01-AT402S	Brass Chrome Plated	25000 Steps	85 °C	-30 ░C	Non-Illuminated	DPDT	11.5 mm	12.5 mm	M12 x 1	On-Off-On	30 V	Standard Round	Panel Mount	3 A 6 A	Solder Lug	125 V

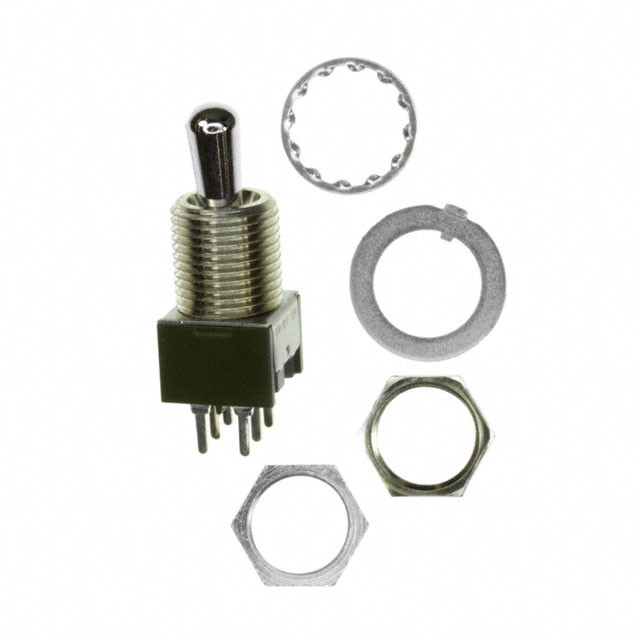

NKK Switches M2023BB1W03	Brass Chrome Plated	25000 Steps	85 °C	-30 ░C	Non-Illuminated	DPDT	11.5 mm	12.5 mm	M12 x 1	On-Off-On	30 V	Standard Round	Panel Mount	3 A 6 A	PC Pin	125 V	Epoxy Sealed Terminals
NKK Switches M2023BB1G01	Brass Chrome Plated	50000 Cycles	85 °C	-30 ░C	Non-Illuminated	DPDT	11.5 mm	12.5 mm	M12 x 1	On-Off-On	28 V	Standard Round	Panel Mount	0.4 VA	Solder Lug	28 V	Epoxy Sealed Terminals
NKK Switches M2023BB1W01-RA	Brass Chrome Plated	25000 Steps	85 °C	-30 ░C	Non-Illuminated	DPDT	12.3 mm	12.5 mm	M12 x 1	On-Off-On	30 V	Standard Round with Cap	Panel Mount	3 A 6 A	Solder Lug	125 V	Black Cap
NKK Switches M2023BB1G01-AT402S	Brass Chrome Plated	50000 Cycles	85 °C	-30 ░C	Non-Illuminated	DPDT	11.5 mm	12.5 mm	M12 x 1	On-Off-On	28 V	Standard Round	Panel Mount	0.4 VA	Solder Lug	28 V

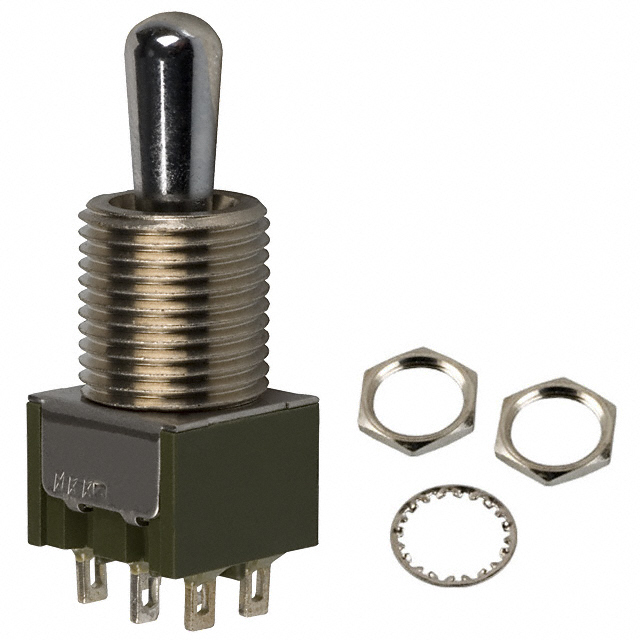

NKK Switches M2023BB1W01	Brass Chrome Plated	25000 Steps	85 °C	-30 ░C	Non-Illuminated	DPDT	11.5 mm	12.5 mm	M12 x 1	On-Off-On	30 V	Standard Round	Panel Mount	3 A 6 A	Solder Lug	125 V	Epoxy Sealed Terminals

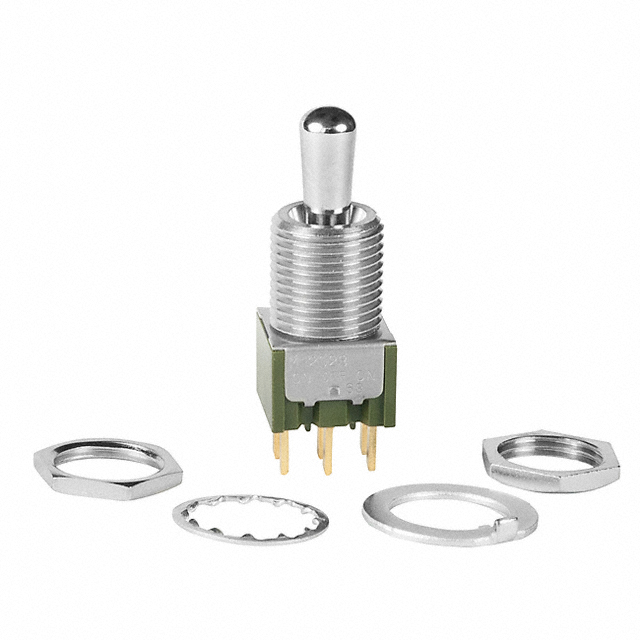

NKK Switches M2023BB1G02	Brass Chrome Plated	50000 Cycles	85 °C	-30 ░C	Non-Illuminated	DPDT	11.5 mm	12.5 mm	M12 x 1	On-Off-On	28 V	Standard Round	Panel Mount	0.4 VA	Quick Connect - 0.062" (1.5mm)	28 V	Epoxy Sealed Terminals
