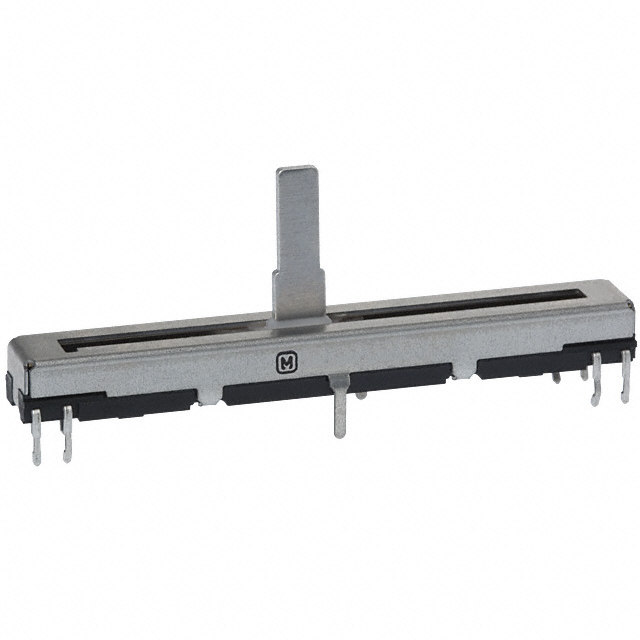

EWA-P Series

Catalog

SLIDE POT 10K OHM 0.05W TOP 45MM

Part	Power (Watts)	Power (Watts)	Adjustment Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Travel Range	Mounting Type	Resistance	Tolerance [Max]	Tolerance [Min]	Fader Type
Panasonic Industrial Automation Sales EWA-P10C15A14	0.05 W	50 mW	Top	8 mm	7 mm	60 mm	0.315 in	0.276 in	2.362 in	45 mm	Through Hole	10000 Ohms	40 %	-20 %	Standard
Panasonic Industrial Automation Sales EWA-P30C15A14	0.05 W	50 mW	Top	8 mm	7 mm	60 mm	0.315 in	0.276 in	2.362 in	45 mm	Through Hole	10000 Ohms	40 %	-20 %	Dual
Panasonic Industrial Automation Sales EWA-P10C15D14	0.05 W	50 mW	Top	8 mm	7 mm	60 mm	0.315 in	0.276 in	2.362 in	45 mm	Through Hole	10000 Ohms	40 %	-20 %	Standard
