090120 Series

2.54mm Pitch C-Grid III Header, Single Row, Vertical, 35 Circuits, 0.38µm Gold (Au) Selective Plating

Manufacturer: Molex

Catalog

2.54mm Pitch C-Grid III Header, Single Row, Vertical, 35 Circuits, 0.38µm Gold (Au) Selective Plating

Part	Shrouding	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Overall Contact Length	Overall Contact Length	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Termination	Number of Rows	Insulation Height [z]	Insulation Height [z]	Style	Contact Finish - Post	Connector Type	Contact Shape	Applications	Mounting Type	Insulation Color	Contact Type	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Number of Positions

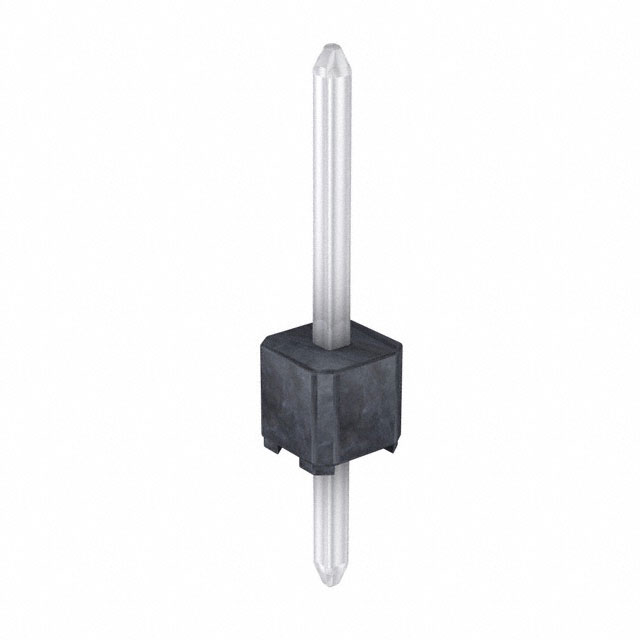

Molex 0901200121	Unshrouded	All	0.114 in	2.9 mm	1	-55 °C	125 °C	Polyester Glass Filled	0.478 in	12.15 mm	Push-Pull	118.1 µin	3 µm	Brass	Solder	1	0.098 in	2.5 mm	Board to Board Cable	Tin	Breakaway Header	Square	Automotive General Purpose	Through Hole	Black	Male Pin	0.266 in	6.75 mm	UL94 V-0

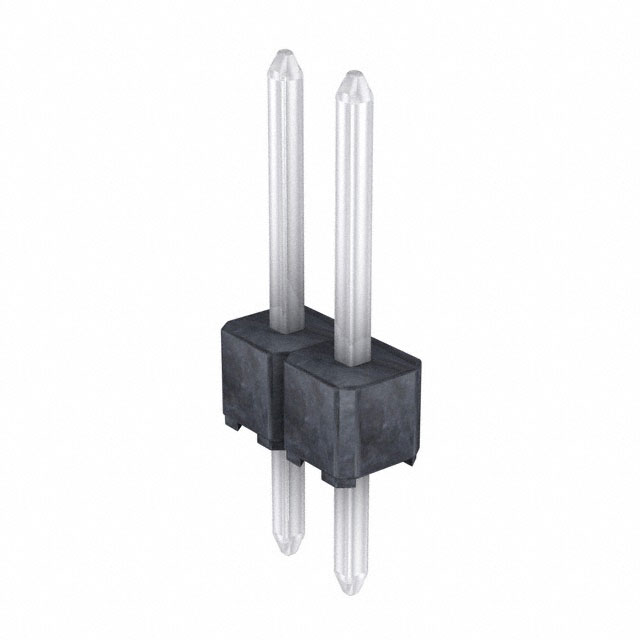

Molex 0901200122	Unshrouded	All	0.114 in	2.9 mm	2	-55 °C	125 °C	Polyester Glass Filled	0.478 in	12.15 mm	Push-Pull	118.1 µin	3 µm	Brass	Solder	1	0.098 in	2.5 mm	Board to Board Cable	Tin	Breakaway Header	Square	Automotive General Purpose	Through Hole	Black	Male Pin	0.266 in	6.75 mm	UL94 V-0	0.1 in	2.54 mm
Molex 0901200763	Unshrouded	All	0.114 in	2.9 mm		-55 °C	125 °C	Polyester Glass Filled	0.478 in	12.15 mm	Push-Pull	0.38 µm		Brass	Solder	1	0.098 in	2.5 mm	Board to Board Cable	Tin	Breakaway Header	Square	Automotive General Purpose	Through Hole	Black	Male Pin	0.266 in	6.75 mm	UL94 V-0	0.1 in	2.54 mm	Gold	3 µm	118.1 µin	15 µin
Molex 0901200126	Unshrouded	All	0.114 in	2.9 mm	6	-55 °C	125 °C	Polyester Glass Filled	0.478 in	12.15 mm	Push-Pull	118.1 µin	3 µm	Brass	Solder	1	0.098 in	2.5 mm	Board to Board Cable	Tin	Breakaway Header	Square	Automotive General Purpose	Through Hole	Black	Male Pin	0.266 in	6.75 mm	UL94 V-0	0.1 in	2.54 mm
Molex 0901200779	Unshrouded	All	0.114 in	2.9 mm	19	-55 °C	125 °C	Polyester Glass Filled	0.478 in	12.15 mm	Push-Pull	0.38 µm		Brass	Solder	1	0.098 in	2.5 mm	Board to Board Cable	Tin	Breakaway Header	Square	Automotive General Purpose	Through Hole	Black	Male Pin	0.266 in	6.75 mm	UL94 V-0	0.1 in	2.54 mm	Gold	3 µm	118.1 µin	15 µin
Molex 0901200782	Unshrouded	All	0.114 in	2.9 mm	22 positions	-55 °C	125 °C	Polyester Glass Filled	0.478 in	12.15 mm	Push-Pull	0.38 µm		Brass	Solder	1	0.098 in	2.5 mm	Board to Board Cable	Tin	Breakaway Header	Square	Automotive General Purpose	Through Hole	Black	Male Pin	0.266 in	6.75 mm	UL94 V-0	0.1 in	2.54 mm	Gold	3 µm	118.1 µin	15 µin
Molex 0901200936	Unshrouded	All	0.114 in	2.9 mm		-55 °C	125 °C	Polyester Glass Filled	0.478 in	12.15 mm	Push-Pull	0.76 Ám		Brass	Solder	1	0.098 in	2.5 mm	Board to Board Cable	Tin	Breakaway Header	Square	Automotive General Purpose	Through Hole	Black	Male Pin	0.266 in	6.75 mm	UL94 V-0	0.1 in	2.54 mm	Gold	3 µm	118.1 µin	30 Áin	16
Molex 0901200926	Unshrouded	All	0.114 in	2.9 mm	6	-55 °C	125 °C	Polyester Glass Filled	0.478 in	12.15 mm	Push-Pull	0.76 Ám		Brass	Solder	1	0.098 in	2.5 mm	Board to Board Cable	Tin	Breakaway Header	Square	Automotive General Purpose	Through Hole	Black	Male Pin	0.266 in	6.75 mm	UL94 V-0	0.1 in	2.54 mm	Gold	3 µm	118.1 µin	30 Áin
Molex 0901200799	Unshrouded	All	0.114 in	2.9 mm	39	-55 °C	125 °C	Polyester Glass Filled	0.478 in	12.15 mm	Push-Pull	0.38 µm		Brass	Solder	1	0.098 in	2.5 mm	Board to Board Cable	Tin	Breakaway Header	Square	Automotive General Purpose	Through Hole	Black	Male Pin	0.266 in	6.75 mm	UL94 V-0	0.1 in	2.54 mm	Gold	3 µm	118.1 µin	15 µin
Molex 0901200775	Unshrouded	All	0.114 in	2.9 mm	15	-55 °C	125 °C	Polyester Glass Filled	0.478 in	12.15 mm	Push-Pull	0.38 µm		Brass	Solder	1	0.098 in	2.5 mm	Board to Board Cable	Tin	Breakaway Header	Square	Automotive General Purpose	Through Hole	Black	Male Pin	0.266 in	6.75 mm	UL94 V-0	0.1 in	2.54 mm	Gold	3 µm	118.1 µin	15 µin
