787-74 Series
Manufacturer: WAGO Corporation
Beta
⌘K

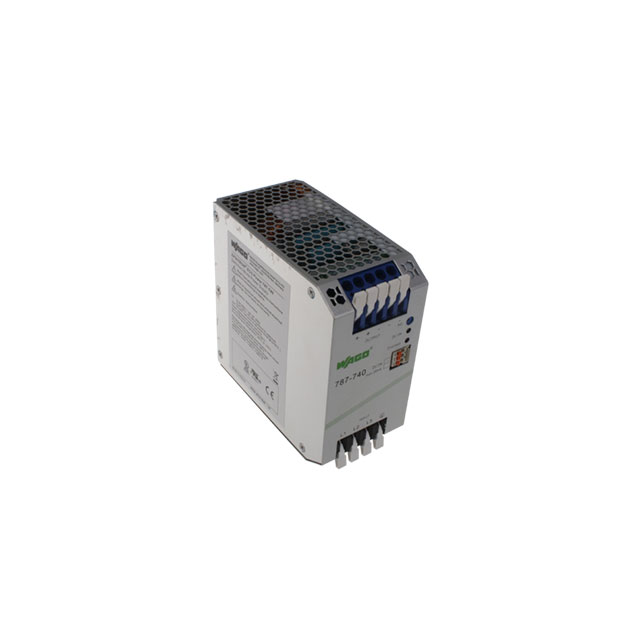

AC/DC DIN RAIL SUPPLY 24V 240W
| Part | Voltage - Isolation | DC Voltage - Input (Min) [Min] | Efficiency | Power (Watts) | Current - Output (Max) [Max] | Input Type | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Voltage - Output 1 | Features | Standard Number | Applications | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | AC Voltage - Input [Max] | AC Voltage - Input [Min] | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 WAGO Corporation | 4.242 kV | 500 V | 89 % | 240 Watts | 10 A | AC or DC | 70 °C | -25 °C | cURus UL | 24 V | Adjustable Output IP20 PFC Universal Input | 60950-1; UL 508 | Industrial ITE (Commercial) | 2.56 in | 5.12 in | 130 mm | 130 mm | 5.12 in | 65 mm | 575 VAC | 360 VAC | 1 |
