TB62215 Series

Manufacturer: Toshiba Semiconductor and Storage

Catalog

IC MOTOR DRIVER BIPLR 25V 25HZIP

Part	Voltage - Load [Max]	Voltage - Load [Min]	Technology	Applications	Step Resolution	Step Resolution	Function	Output Configuration	Motor Type - Stepper	Current - Output	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Mounting Type	Supplier Device Package	Interface	Voltage - Supply [Min]	Voltage - Supply [Max]	Motor Type - AC, DC

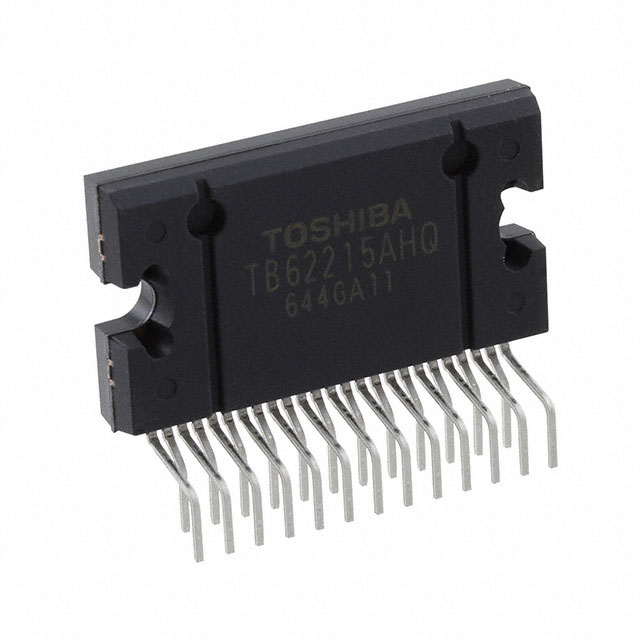

Toshiba Semiconductor and Storage TB62215AHQ,8	38 V	10 V	Power MOSFET	General Purpose	1/2 1/4	1	Driver - Fully Integrated Control and Power Stage	Half Bridge (4)	Bipolar	3 A	150 °C	-20 °C	25-SIP Formed Leads	Through Hole	25-HZIP	Parallel	4.75 V	5.25 V
Toshiba Semiconductor and Storage TB62215AFNG,C8,EL	38 V	10 V	Power MOSFET	General Purpose	1/2 1/4	1	Driver - Fully Integrated Control and Power Stage	Half Bridge (4)	Bipolar	3 A	150 °C	-20 °C	48-TFSOP (0.240" 6.10mm Width) Exposed Pad	Surface Mount	48-HTSSOP	Parallel	4.75 V	5.25 V
Toshiba Semiconductor and Storage TB62215AFTG,C8,EL	38 V	10 V	Power MOSFET	General Purpose	1/2 1/4	1	Driver - Fully Integrated Control and Power Stage	Half Bridge (4)	Bipolar	3 A	150 °C	-20 °C	48-VFQFN Exposed Pad	Surface Mount	48-QFN (7x7)	Parallel	4.75 V	5.25 V
Toshiba Semiconductor and Storage TB62215AFG,C8,EL	38 V	10 V	Power MOSFET	General Purpose	1/2 1/4	1	Driver - Fully Integrated Control and Power Stage	Half Bridge (4)	Bipolar	3 A	85 C	-20 °C		Surface Mount	28-HSOP	Parallel	4.75 V	5.25 V	Brushed DC
Toshiba Semiconductor and Storage TB62215AHQ	38 V	10 V	Power MOSFET	General Purpose	1/2 1/4	1	Driver - Fully Integrated Control and Power Stage	Half Bridge (4)	Bipolar	3 A	150 °C	-20 °C	25-SIP Formed Leads	Through Hole	25-HZIP	Parallel	4.75 V	5.25 V
