048394 Series
Manufacturer: Molex
Beta
⌘K

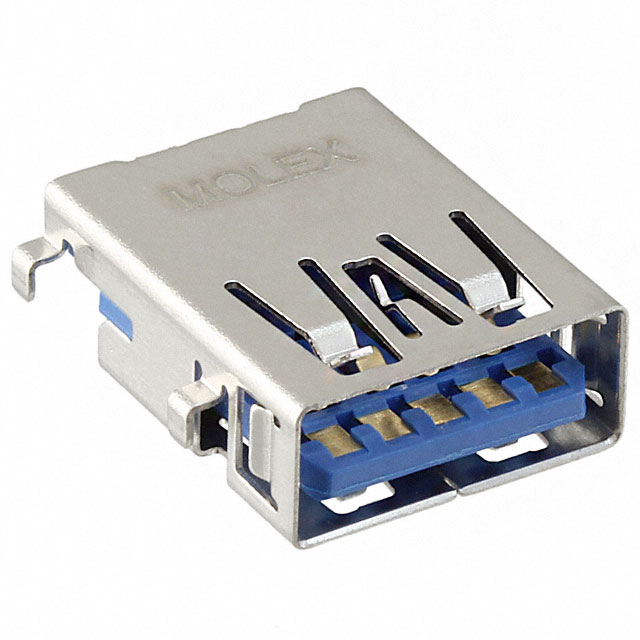

CONN RCP USB3.0 TYPEA 9POS TH RA
| Part | Shell/Shielding Material | Number of Contacts | Shielding | Termination | Voltage - Rated | Mating Cycles | Number of Ports | Mounting Type | Contact Finish | Material Flammability Rating | Insulation Color | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Connector Type | Current Rating (Amps) | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | Stainless Steel | 9 | Shielded | Solder | 30 VAC | 5000 | 1 | Board Edge Cutout Through Hole Right Angle | Gold | UL94 V-0 | Blue | 85 °C | -20 C | Receptacle | USB-A (USB TYPE-A) | 0.25 A 1.8 A | Horizontal Mid Mount Reverse |
 Molex | Stainless Steel | 9 | Shielded | Solder | 30 VAC | 5000 | 1 | Board Edge Cutout Through Hole Right Angle | Gold | UL94 V-0 | Blue | 85 °C | -20 C | Receptacle | USB-A (USB TYPE-A) | 0.25 A 1.8 A | Horizontal Mid Mount Reverse |
Molex | Stainless Steel | 9 | Shielded | Solder | 30 VAC | 5000 | 1 | Board Edge Cutout Through Hole Right Angle | Gold | UL94 V-0 | Blue | 85 °C | -20 C | Receptacle | USB-A (USB TYPE-A) | 0.25 A 1.8 A | Horizontal Mid Mount Reverse |
