FKA1-17251 Series
Manufacturer: Qualtek
Beta
⌘K
FAN AXIAL 172X50.8MM 115VAC TERM
| Part | Material - Frame | Current Rating (Amps) | Air Flow | Air Flow | Material - Blade | Noise | Width [y] | Voltage - Rated | Static Pressure | Static Pressure | Size / Dimension | Size / Dimension [y] | Size / Dimension [x] | Power (Watts) | RPM | Operating Temperature [Max] | Operating Temperature [Min] | Bearing Type | Weight [custom] | Weight [custom] | Approval Agency | Fan Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qualtek | Aluminum | 460 mA | 189 CFM | 5.29 mł/min | Plastic | 57.7 dB(A) | 50.8 mm | 115 VAC | 101.6 Pa | 0.408 in H2O | Rectangular/Rounded | 150 mm | 172 mm | 51.8 W | 2700 RPM | 70 °C | -10 °C | Ball | 2.3 lbs | 1 kg | CE cURus TUV | Tubeaxial | 2 |

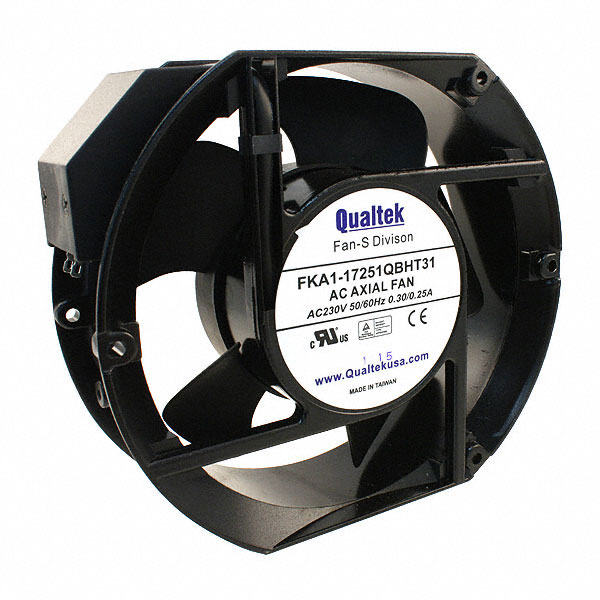

 Qualtek | Aluminum | 0.23 A | 189 CFM | 5.29 mł/min | Plastic | 57.7 dB(A) | 50.8 mm | 230 VAC | 101.6 Pa | 0.408 in H2O | Rectangular/Rounded | 150 mm | 172 mm | 50.6 W | 2700 RPM | 70 °C | -10 °C | Ball | 2.3 lbs | 1 kg | CE cURus TUV | Tubeaxial | 2 |
