11TW1 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SWITCH TOGGLE SPDT 5A 125V

Part	Current Rating (Amps)	Switch Function	Panel Cutout Dimensions [diameter]	Illumination	Actuator Length [x]	Bushing Thread	Ingress Protection	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Voltage Rating - AC	Actuator Type	Termination Style	Voltage Rating - DC	Actuator Material	Features
Honeywell Sensing and Productivity Solutions 11TW105-7	5 A	Mom-Off-Mom	12.4 mm	Non-Illuminated	17.27 mm	15/32-32	Environment Sealed	Panel Mount	-65 ░C	71 °C	SPDT	125 V	Standard Round	Solder Turret
Honeywell Sensing and Productivity Solutions 11TW1-3G	5 A	On-On	12.4 mm	Non-Illuminated	29.46 mm	15/32-32	Environment Sealed	Panel Mount	-65 ░C	71 °C	SPDT	125 V	Locking Lever	Solder Turret	28 V

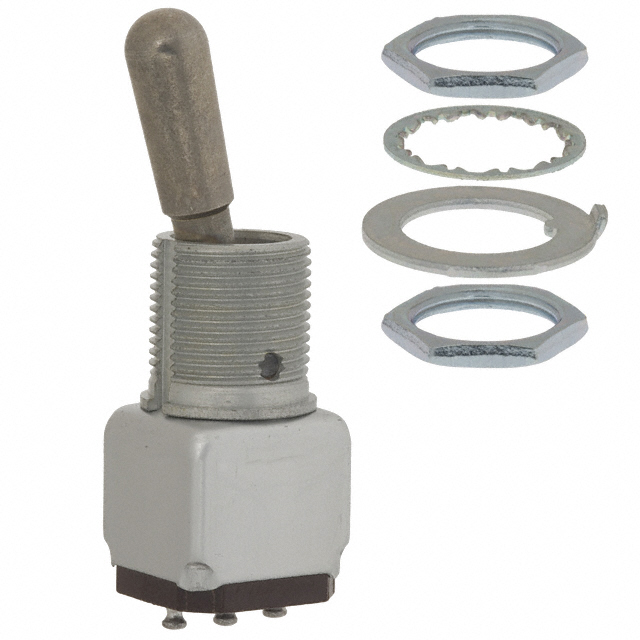

Honeywell Sensing and Productivity Solutions 11TW1-3	5 A	On-On	12.4 mm	Non-Illuminated	17.27 mm	15/32-32	Environment Sealed	Panel Mount	-65 ░C	71 °C	SPDT	125 V	Standard Round	Solder Turret	28 V
Honeywell Sensing and Productivity Solutions 11TW1-5K	5 A	On-Off-Mom	12.4 mm	Non-Illuminated	29.46 mm	15/32-32	Environment Sealed	Panel Mount	-65 ░C	71 °C	SPDT	125 V	Locking Lever	Solder Turret	28 V
Honeywell Sensing and Productivity Solutions 11TW1-1D	5 A	On-Off-On	12.4 mm	Non-Illuminated	29.46 mm	15/32-32	Environment Sealed	Panel Mount	-65 ░C	71 °C	SPDT	125 V	Locking Lever	Solder Turret	28 V
Honeywell Sensing and Productivity Solutions 11TW1-2G	5 A	On-Off	12.4 mm	Non-Illuminated	29.46 mm	15/32-32	Environment Sealed	Panel Mount	-65 ░C	71 °C	SPST	125 V	Locking Lever	Solder Turret	28 V

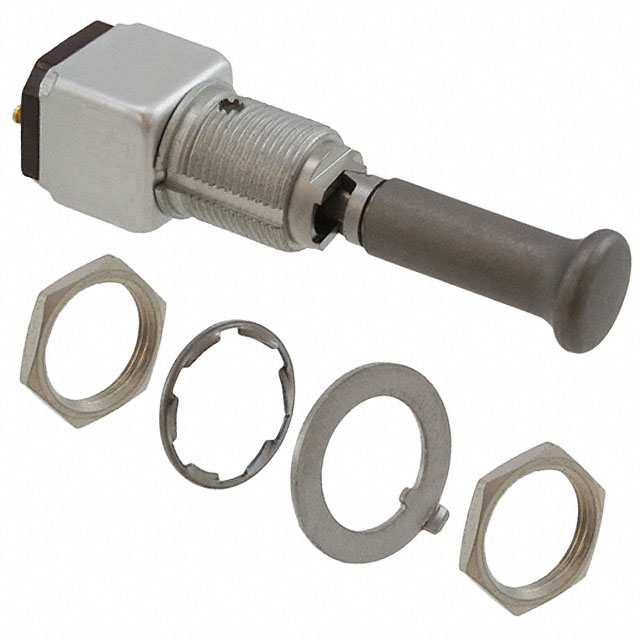

Honeywell Sensing and Productivity Solutions 11TW1-5M	5 A	On-Off-Mom	12.4 mm	Non-Illuminated	29.46 mm	15/32-32	Environment Sealed	Panel Mount	-65 ░C	71 °C	SPDT	125 V	Locking Lever	Solder Turret	28 V
Honeywell Sensing and Productivity Solutions 11TW19-2-A002	5 A	On-Off	12.4 mm	Non-Illuminated	1 in	15/32-32	Environment Sealed	Panel Mount	-65 ░C	71 °C	SPST	125 V	Flatted	Solder Turret		Thermoplastic	Black Actuator

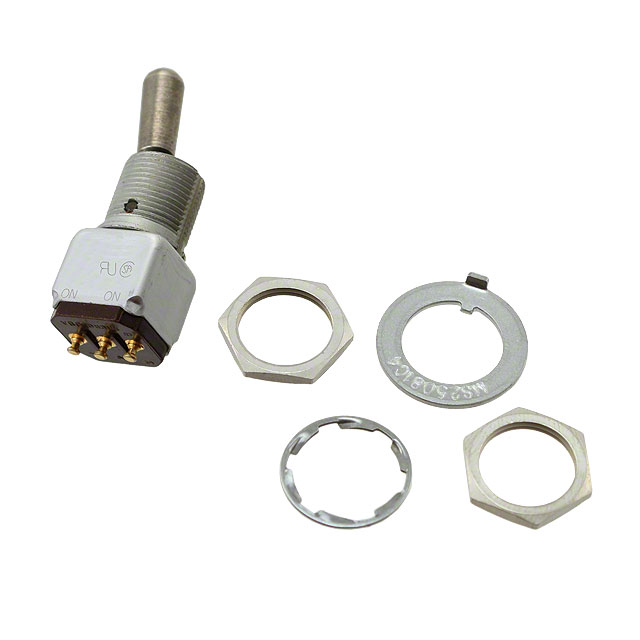

Honeywell Sensing and Productivity Solutions 11TW1-8	5 A	On-Mom	12.4 mm	Non-Illuminated	17.27 mm	15/32-32	Environment Sealed	Panel Mount	-65 ░C	71 °C	SPDT	125 V	Standard Round	Solder Turret	28 V
Honeywell Sensing and Productivity Solutions 11TW1-261	5 A	Off-Mom	12.4 mm	Non-Illuminated	17.27 mm	15/32-32	Environment Sealed	Panel Mount	-65 ░C	71 °C	SPST-NO	125 V	Standard Round	Solder Turret	28 V
