HEN.1M Series
Manufacturer: LEMO
Beta
⌘K

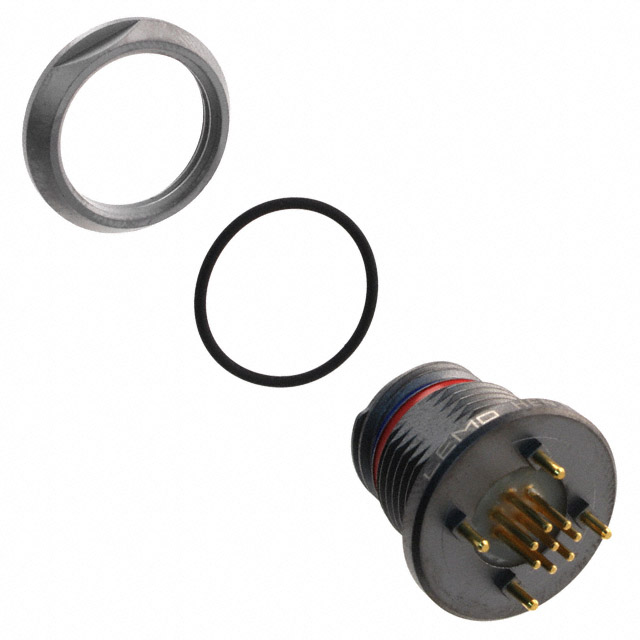

CONN RCPT FMALE 8POS GOLD SOLDER
| Part | Contact Finish - Mating | Mounting Feature | Orientation | Shielding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Primary Material | Shell Finish | Number of Positions | Connector Type | Mounting Type | Features | Current Rating (Amps) | Insert Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Fastening Type | Color | Ingress Protection | Shell Size - Insert | Termination | Shell Material | Applications | Shell Size - Insert [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | Gold | Bulkhead - Front Side Nut | N (Normal) | Shielded | 1.5 Ám | 59 Áin | Metal | Chrome | 8 | Receptacle Female Sockets | Panel Mount Through Hole | Potted | 5 A | Polyetheretherketone (PEEK) | 80 °C | -20 ░C | Bronze | Threaded | Silver | IP68 - Dust Tight Waterproof | 308 | Solder | Brass | Aerospace Automotive Aviation Military | |
LEMO | Gold | Bulkhead - Front Side Nut | N (Normal) | Shielded | 1.5 Ám | 59 Áin | Metal | Nickel | 7 | Receptacle Female Sockets | Panel Mount Through Hole | Potted | 7 A | Polyetheretherketone (PEEK) | 80 °C | -20 ░C | Bronze | Threaded | Gray | IP68 - Dust Tight Waterproof | Solder | Aluminum Alloy | Aerospace Automotive Aviation Military | 307 | |
 LEMO | Gold | Bulkhead - Front Side Nut | N (Normal) | Shielded | 1.5 Ám | 59 Áin | Metal | Nickel | 8 | Receptacle Female Sockets | Panel Mount Through Hole | Potted | 5 A | Polyetheretherketone (PEEK) | 80 °C | -20 ░C | Bronze | Threaded | Gray | IP68 - Dust Tight Waterproof | 308 | Solder | Aluminum Alloy | Aerospace Automotive Aviation Military | |
LEMO | Gold | Bulkhead - Front Side Nut | N (Normal) | Shielded | 1.5 Ám | 59 Áin | Metal | Nickel | 5 | Receptacle Female Sockets | Panel Mount Through Hole | Potted | 9 A | Polyetheretherketone (PEEK) | 80 °C | -20 ░C | Bronze | Threaded | Gray | IP68 - Dust Tight Waterproof | 305 | Solder | Aluminum Alloy | Aerospace Automotive Aviation Military |
