DRC-V Series

Catalog

FIXED IND 330UH 560MA 0.85OHM TH

Part	Package Name	Operating Temperature (Max)	Operating Temperature (Min)	Material - Core	Inductance	Shielding	Current - Saturation (Isat)	Current Rating	DC Resistance (DCR) (Max)	Package / Case	Tolerance	Mounting Type	Inductance Frequency - Test	Frequency - Self Resonant	Type	Q	Size / Dimension Diameter	Height - Seated (Max)

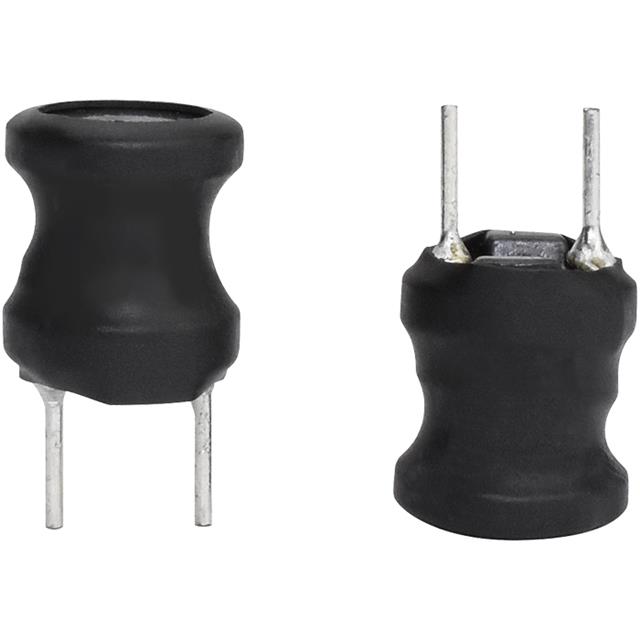

Signal Transformer DRC-V-331K	Radial	125 °C	-40 °C	Ferrite	330 µH	Unshielded	0.54 mA	0.56 A	850 mOhm	Radial Vertical Cylinder	10 %	Through Hole	796 kHz	2.3 MHz	Drum Core Wirewound	10	0.343 in	0.492 in
Signal Transformer DRC-V-101K	Radial	125 °C	-40 °C	Ferrite	100 µH	Unshielded	0.91 mA	1.2 A	280 mOhm	Radial Vertical Cylinder	10 %	Through Hole	796 kHz	3.7 MHz	Drum Core Wirewound	20	0.343 in	0.492 in
Signal Transformer DRC-V-181K	Radial	125 °C	-40 °C	Ferrite	180 µH	Unshielded	0.69 mA	0.75 A	580 mOhm	Radial Vertical Cylinder	10 %	Through Hole	796 kHz	2.8 MHz	Drum Core Wirewound	20	0.343 in	0.492 in

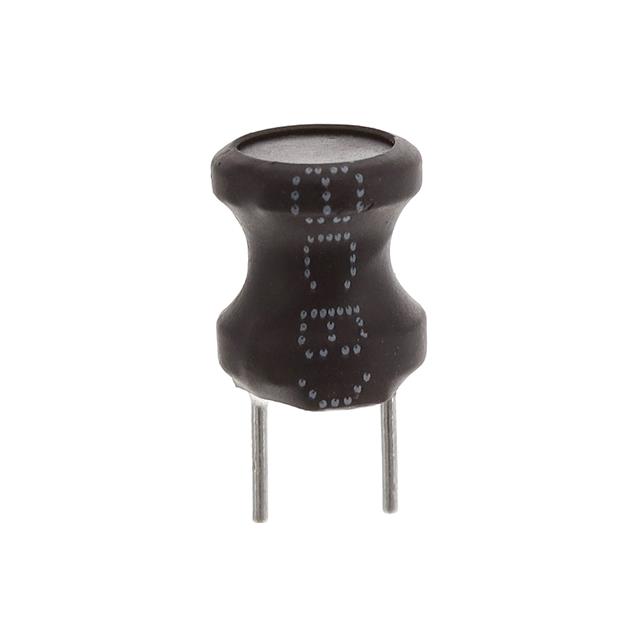

Signal Transformer DRC-V-2R2M	Radial	125 °C	-40 °C	Ferrite	2.2 µH	Unshielded	6.5 A	5.6 A	21 mOhm	Radial Vertical Cylinder	20 %	Through Hole	7.96 MHz	100 MHz	Drum Core Wirewound	20	0.343 in	0.492 in
Signal Transformer DRC-V-273K	Radial	125 °C	-40 °C	Ferrite	27 mH	Unshielded	30 mA	75 mA	62 Ohm	Radial Vertical Cylinder	10 %	Through Hole	79.6 kHz	100 kHz	Drum Core Wirewound	30	0.343 in	0.492 in
Signal Transformer DRC-V-121K	Radial	125 °C	-40 °C	Ferrite	120 µH	Unshielded	0.84 mA	1.05 A	320 mOhm	Radial Vertical Cylinder	10 %	Through Hole	796 kHz	3.4 MHz	Drum Core Wirewound	20	0.343 in	0.492 in
Signal Transformer DRC-V-473K	Radial	125 °C	-40 °C	Ferrite	47 mH	Unshielded	30 mA	0.055 A	99 Ohm	Radial Vertical Cylinder	10 %	Through Hole	79.6 kHz	100 kHz	Drum Core Wirewound	20	0.343 in	0.492 in
Signal Transformer DRC-V-122K	Radial	125 °C	-40 °C	Ferrite	1200 µH	Unshielded	0.13 mA	0.3 A	4 Ohm	Radial Vertical Cylinder	10 %	Through Hole	252 kHz	1.1 MHz	Drum Core Wirewound	20	0.343 in	0.492 in
Signal Transformer DRC-V-150K	Radial	125 °C	-40 °C	Ferrite	15 µH	Unshielded	2.3 A	2.8 A	56 mOhm	Radial Vertical Cylinder	10 %	Through Hole	2.52 MHz	12 MHz	Drum Core Wirewound	40	0.343 in	0.492 in
Signal Transformer DRC-V-103K	Radial	125 °C	-40 °C	Ferrite	10 mH	Unshielded	0.05 mA	120 mA	25 Ohm	Radial Vertical Cylinder	10 %	Through Hole	79.6 kHz	300 kHz	Drum Core Wirewound	30	0.343 in	0.492 in
