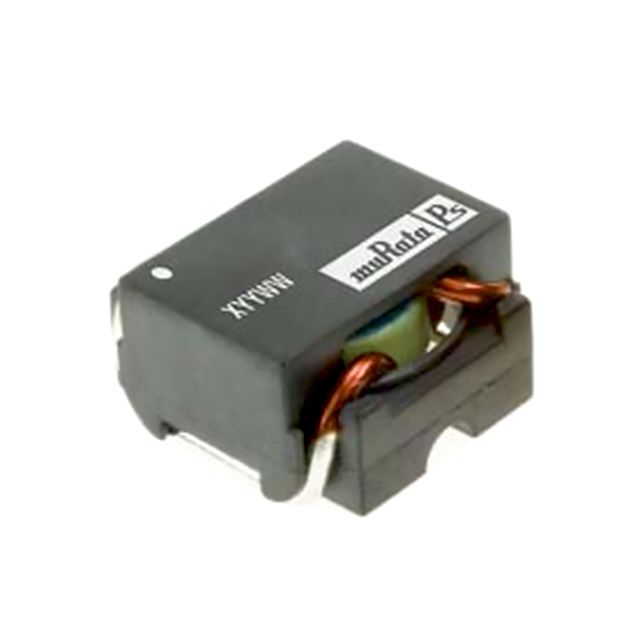

42 Series

Manufacturer: Murata Power Solutions Inc.

Catalog

FIXED IND 2.1UH 11.5A 3.8MOHM SM

Part	Frequency - Self Resonant	Current Rating (Amps)	Shielding	Type	Inductance Frequency - Test	Package / Case	Tolerance	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	DC Resistance (DCR) [Max]	DC Resistance (DCR)
Murata Power Solutions Inc. 42212C	162 MHz	11.5 A	Unshielded	Toroidal	100 kHz	Nonstandard	15 %	Surface Mount	15.37 mm	0.618 in	0.605 in	15.7 mm	125 °C	-40 °C	2.1 µH	9.4 mm	0.37 in
Murata Power Solutions Inc. 42103C	38 MHz	15.4 A	Unshielded	Toroidal	100 kHz	Nonstandard	15 %	Surface Mount	23.88 mm	0.94 in	0.94 in	23.88 mm	125 °C	-40 °C	10.2 µH			6 mOhm
Murata Power Solutions Inc. 42842C-R	50 MHz	10.4 A	Unshielded	Toroidal	100 kHz	Nonstandard	15 %	Surface Mount	18.8 mm	0.74 in	0.74 in	18.8 mm	125 °C	-40 °C	8.45 µH			8 mOhm
Murata Power Solutions Inc. 42103C-R	38 MHz	15.4 A	Unshielded	Toroidal	100 kHz	Nonstandard	15 %	Surface Mount	23.88 mm	0.94 in	0.94 in	23.88 mm	125 °C	-40 °C	10.2 µH			6 mOhm
Murata Power Solutions Inc. 42842C	50 MHz	10.4 A	Unshielded	Toroidal	100 kHz	Nonstandard	15 %	Surface Mount	18.8 mm	0.74 in	0.74 in	18.8 mm	125 °C	-40 °C	8.45 µH			8 mOhm
Murata Power Solutions Inc. 42282C	116 MHz	13.9 A	Unshielded	Toroidal	100 kHz	Nonstandard	15 %	Surface Mount	17 mm	0.669 "	0.669 in	17 mm	125 °C	-40 °C	2.84 µH			3.5 mOhm
Murata Power Solutions Inc. 42282C-R	116 MHz	13.9 A	Unshielded	Toroidal	100 kHz	Nonstandard	15 %	Surface Mount	17 mm	0.669 "	0.669 in	17 mm	125 °C	-40 °C	2.84 µH			3.5 mOhm
Murata Power Solutions Inc. 42183C	24 MHz	10.9 A	Unshielded	Toroidal	100 kHz	Nonstandard	15 %	Surface Mount	23.87 mm	0.94 in	0.94 in	23.87 mm	125 °C	-40 °C	17.6 µH				11.6 mOhm
Murata Power Solutions Inc. 42422C-R	90 MHz	11.4 A	Unshielded	Toroidal	100 kHz	Nonstandard	15 %	Surface Mount	17 mm	0.669 "	0.669 in	17 mm	125 °C	-40 °C	4.23 µH
Murata Power Solutions Inc. 42652C		12.4 A	Unshielded	Toroidal	100 kHz	Nonstandard	15 %	Surface Mount	18.8 mm	0.74 in	0.74 in	18.8 mm	125 °C	-40 °C	6.5 µH			6 mOhm
