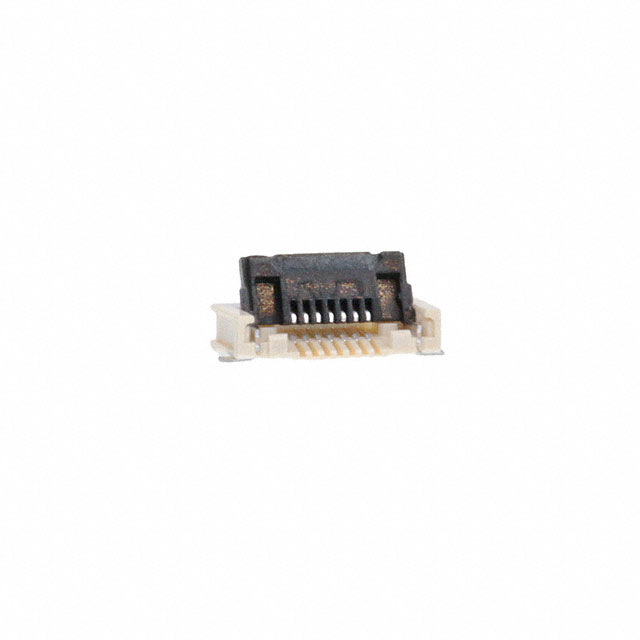

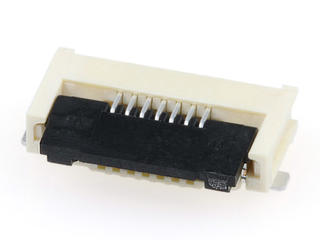

0.50mm Pitch Easy-On FFC/FPC Connector, 1.90mm Height, Single Bottom Contact (FS19), Right-Angle, Surface Mount, ZIF, 7 Circuits
0.50mm Pitch Easy-On FFC/FPC Connector, 1.90mm Height, Single Bottom Contact (FS19), Right-Angle, Surface Mount, ZIF, 7 Circuits
0.50mm Pitch Easy-On FFC/FPC Connector, 1.90mm Height, Single Bottom Contact (FS19), Right-Angle, Surface Mount, ZIF, 7 Circuits
| Part | Height Above Board | Height Above Board | Current Rating (Amps) | Contact Finish | Housing Color | Features | Locking Feature | Mounting Type | Flat Flex Type | Termination | FFC, FCB Thickness | Contact Material | Connector/Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Actuator Color | Actuator Material | Housing Material | Pitch [x] | Pitch [x] | Material Flammability Rating | Mating Cycles | Contact Finish Thickness | Contact Finish Thickness | Cable End Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 1.9 mm | 0.075 " | 0.5 A | Tin Bismuth | Beige | Solder Retention Zero Insertion Force (ZIF) | Flip Lock | Surface Mount Right Angle | FFC FPC | Solder | 0.3 mm | Phosphor Bronze | Contacts Bottom | 85 °C | -40 °C | 50 V | Black | Glass Filled Nylon Polyamide (PA) | Liquid Crystal Polymer (LCP) Glass Filled | 0.5 mm | 0.02 in | UL94 V-0 | 20 | 39.4 Áin | 1 Ám | Tabbed Tapered | 50 |
 Molex | 1.9 mm | 0.075 " | 0.5 A | Tin | Beige | Solder Retention | Flip Lock | Surface Mount Right Angle | FFC FPC | Solder | 0.3 mm | Phosphor Bronze | Contacts Bottom | 85 °C | -40 °C | 50 V | Black | Glass Filled Nylon Polyamide (PA) | Liquid Crystal Polymer (LCP) Glass Filled | 0.5 mm | 0.02 in | UL94 V-0 | 25 | 39.4 Áin | 1 Ám | Tabbed Tapered | 15 |
 Molex | 1.9 mm | 0.075 " | 0.5 A | Tin | Beige | Solder Retention | Flip Lock | Surface Mount Right Angle | FFC FPC | Solder | 0.3 mm | Phosphor Bronze | Contacts Bottom | 85 °C | -40 °C | 50 V | Black | Glass Filled Nylon Polyamide (PA) | Liquid Crystal Polymer (LCP) Glass Filled | 0.5 mm | 0.02 in | UL94 V-0 | 25 | 39.4 Áin | 1 Ám | Tabbed Tapered | 19 |
 Molex | 1.9 mm | 0.075 " | 0.5 A | Tin | Beige | Solder Retention | Flip Lock | Surface Mount Right Angle | FFC FPC | Solder | 0.3 mm | Phosphor Bronze | Contacts Bottom | 85 °C | -40 °C | 50 V | Black | Glass Filled Nylon Polyamide (PA) | Liquid Crystal Polymer (LCP) Glass Filled | 0.5 mm | 0.02 in | UL94 V-0 | 25 | 39.4 Áin | 1 Ám | Tabbed Tapered | 7 |
 Molex | 1.9 mm | 0.075 " | 0.5 A | Tin | Beige | Solder Retention | Flip Lock | Surface Mount Right Angle | FFC FPC | Solder | 0.3 mm | Phosphor Bronze | Contacts Bottom | 85 °C | -40 °C | 50 V | Black | Glass Filled Nylon Polyamide (PA) | Liquid Crystal Polymer (LCP) Glass Filled | 0.5 mm | 0.02 in | UL94 V-0 | 25 | 39.4 Áin | 1 Ám | Tabbed Tapered | |
Molex | 1.9 mm | 0.075 " | 0.5 A | Tin | Beige | Solder Retention | Flip Lock | Surface Mount Right Angle | FFC FPC | Solder | 0.3 mm | Phosphor Bronze | Contacts Bottom | 85 °C | -40 °C | 50 V | Black | Glass Filled Nylon Polyamide (PA) | Liquid Crystal Polymer (LCP) Glass Filled | 0.5 mm | 0.02 in | UL94 V-0 | 25 | 39.4 Áin | 1 Ám | Tabbed Tapered | 10 |
 Molex | 1.9 mm | 0.075 " | 0.5 A | Tin | Beige | Solder Retention | Flip Lock | Surface Mount Right Angle | FFC FPC | Solder | 0.3 mm | Phosphor Bronze | Contacts Bottom | 85 °C | -40 °C | 50 V | Black | Glass Filled Nylon Polyamide (PA) | Liquid Crystal Polymer (LCP) Glass Filled | 0.5 mm | 0.02 in | UL94 V-0 | 25 | 39.4 Áin | 1 Ám | Tabbed Tapered | 8 |
 Molex | 1.9 mm | 0.075 " | 0.5 A | Tin | Beige | Solder Retention | Flip Lock | Surface Mount Right Angle | FFC FPC | Solder | 0.3 mm | Phosphor Bronze | Contacts Bottom | 85 °C | -40 °C | 50 V | Black | Glass Filled Nylon Polyamide (PA) | Liquid Crystal Polymer (LCP) Glass Filled | 0.5 mm | 0.02 in | UL94 V-0 | 25 | 39.4 Áin | 1 Ám | Tabbed Tapered | 11 |
 Molex | 1.9 mm | 0.075 " | 0.5 A | Tin | Beige | Solder Retention | Flip Lock | Surface Mount Right Angle | FFC FPC | Solder | 0.3 mm | Phosphor Bronze | Contacts Bottom | 85 °C | -40 °C | 50 V | Black | Glass Filled Nylon Polyamide (PA) | Liquid Crystal Polymer (LCP) Glass Filled | 0.5 mm | 0.02 in | UL94 V-0 | 25 | 39.4 Áin | 1 Ám | Tabbed Tapered | 26 |
Molex | 1.9 mm | 0.075 " | 0.5 A | Tin | Beige | Solder Retention | Flip Lock | Surface Mount Right Angle | FFC FPC | Solder | 0.3 mm | Phosphor Bronze | Contacts Bottom | 85 °C | -40 °C | 50 V | Black | Glass Filled Nylon Polyamide (PA) | Liquid Crystal Polymer (LCP) Glass Filled | 0.5 mm | 0.02 in | UL94 V-0 | 25 | 39.4 Áin | 1 Ám | Tabbed Tapered | 20 |
