SD-MMA Series
Manufacturer: Adam Tech
Beta
⌘K
CONN RCPT MALE 5POS SOLDER CUP
| Part | Contact Finish - Mating | Mounting Feature | Ingress Protection | Fastening Type | Mounting Type | Contact Material | Shell Material | Shielding | Insert Material | Connector Type | Orientation | Shell Finish | Operating Temperature [Max] | Operating Temperature [Min] | Color | Number of Positions | Contact Finish Thickness - Mating | Primary Material | Current Rating (Amps) | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

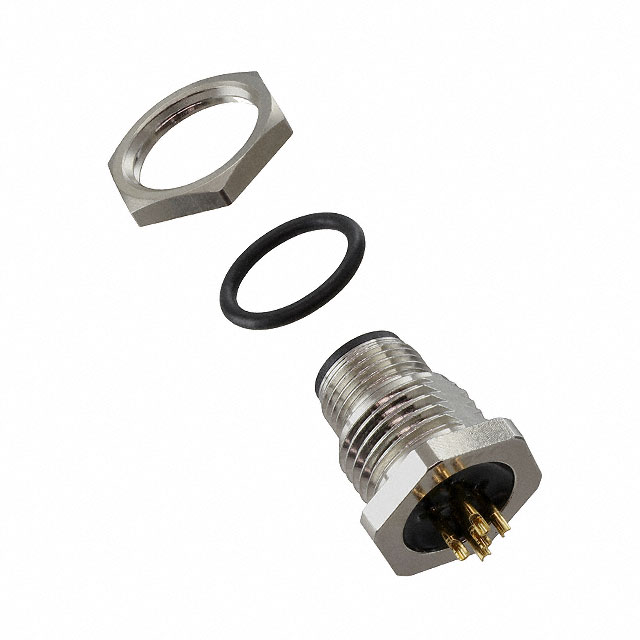

 Adam Tech | Gold | Bulkhead - Front Side Nut | IP67 - Dust Tight Waterproof | Threaded | Panel Mount | Brass | Brass | Unshielded | Plastic | Receptacle Male Pins | Keyed | Nickel | 85 °C | -40 C | Silver | 5 | Flash | Metal | 5 A | M12-5 |

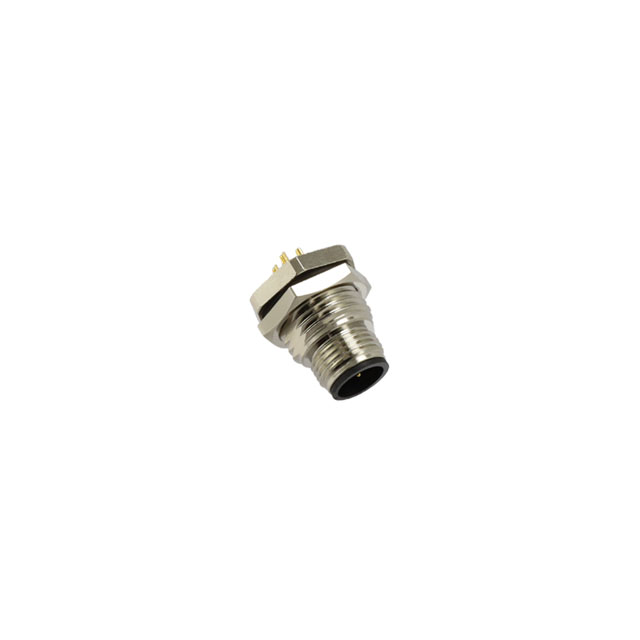

 Adam Tech | Gold | Bulkhead - Front Side Nut | IP67 - Dust Tight Waterproof | Threaded | Panel Mount | Brass | Brass | Unshielded | Plastic | Receptacle Male Pins | Keyed | Nickel | 85 °C | -40 C | Silver | 4 | Flash | Metal | 5 A | M12-4 |
