R18570 Series

Catalog

7-16 / MALE-MALE ADAPTER

Part	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Body Finish	Mating Cycles	Center Contact Material	Body Material	Ingress Protection	Adapter Series [Min]	Adapter Series [Max]	Conversion Type	Center Contact Plating	Convert From (Adapter End)	Frequency - Max [Max]	Center Gender	Mounting Type	Adapter Type	Style	Impedance	Convert To (Adapter End)	Mounting Feature

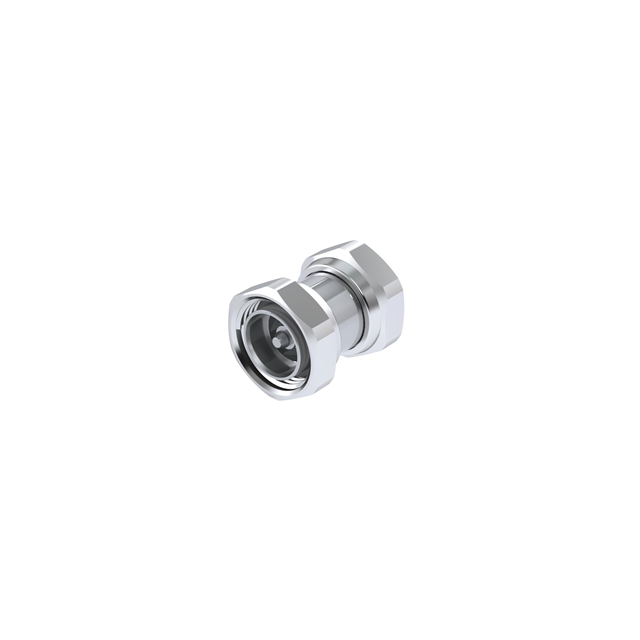

Radiall USA, Inc. R185703000	155 C	-55 C	Polytetrafluoroethylene (PTFE)	Silver	500	Brass	Brass	IP67 - Dust Tight Waterproof	0.4375	0.4375	Same Series	Silver	7/16 Plug Male Pin	7.5 GHz	Male to Male	Free Hanging (In-Line)	Plug to Plug	Straight	50 Ohms	7/16 Plug Male Pin
Radiall USA, Inc. R185707000W	155 C	-55 C	Polytetrafluoroethylene (PTFE)	Silver	500	Beryllium Copper	Brass	IP67 - Dust Tight Waterproof	0.4375	0.4375	Same Series	Silver	7/16 Jack Female Socket	7.5 GHz		Panel Mount	Plug to Jack	Straight	50 Ohms	7/16 Plug Male Pin	Bulkhead

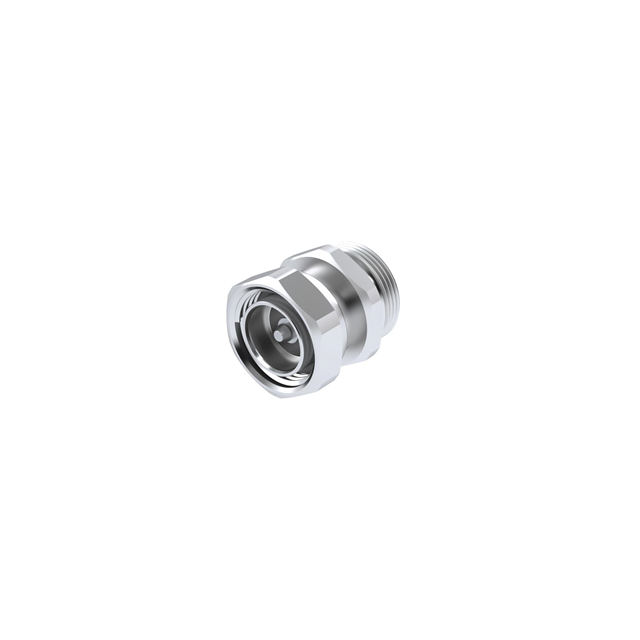

Radiall USA, Inc. R185707000	155 C	-55 C	Polytetrafluoroethylene (PTFE)	Silver	500	Beryllium Copper	Brass	IP67 - Dust Tight Waterproof	0.4375	0.4375	Same Series	Silver	7/16 Jack Female Socket	7.5 GHz		Panel Mount	Plug to Jack	Straight	50 Ohms	7/16 Plug Male Pin	Bulkhead
Radiall USA, Inc. R185703000W	155 C	-55 C	Polytetrafluoroethylene (PTFE)	Silver	500	Brass	Brass	IP67 - Dust Tight Waterproof	0.4375	0.4375	Same Series	Silver	7/16 Plug Male Pin	7.5 GHz	Male to Male	Free Hanging (In-Line)	Plug to Plug	Straight	50 Ohms	7/16 Plug Male Pin
