LMH6629 Series

Catalog

LMH6629 OP AMP EVALUATION KIT

Part	Slew Rate	-3db Bandwidth	Current - Supply (Main IC)	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Channels per IC	Board Type	Supplied Contents	Utilized IC / Part	Amplifier Type	Current - Output / Channel	Voltage - Input Offset	Number of Circuits	Current - Supply	Package / Case	Supplier Device Package	Current - Input Bias	Voltage - Supply Span (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Supply Span (Max) [Max]

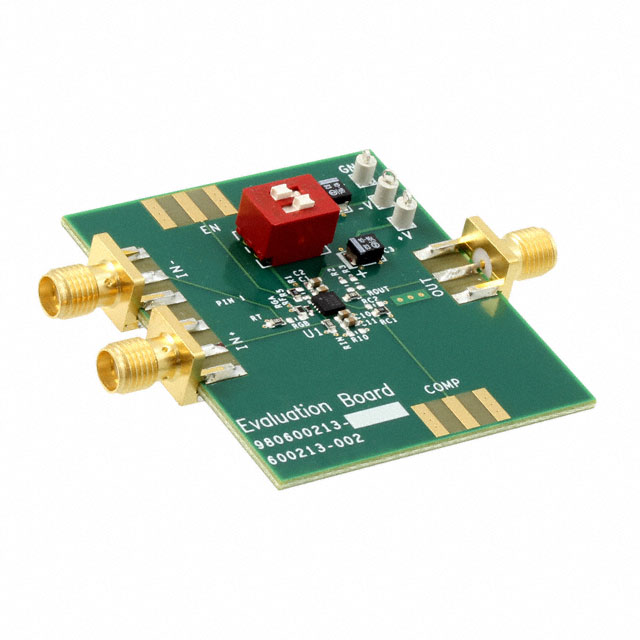

Texas Instruments LMH6629SDEVAL/NOPB	1600 V/µs	1 GHz	15.5 mA	5.5 V	2.7 V	1 - Single	Fully Populated	Board(s)	LMH6629	Voltage Feedback	250 mA
Texas Instruments LMH6629MF/NOPB	1600 V/µs	1 GHz								Voltage Feedback	250 mA	150 µV	1	15.5 mA	SC-74A SOT-753	SOT-23-5	15 µA	2.7 V	125 °C	-40 °C	Surface Mount	5.5 V
Texas Instruments LMH6629SDX/NOPB	1600 V/µs									Voltage Feedback	250 mA	150 µV	1	15.5 mA	8-WFDFN Exposed Pad	8-WSON (3x3)	15 µA	2.7 V	125 °C	-40 °C	Surface Mount	5.5 V
Texas Instruments LMH6629 MDC	1600 V/µs									Voltage Feedback	250 mA	150 µV	1	15.5 mA	Die	Diesale	15 µA	2.7 V	85 °C	-40 °C	Surface Mount	5.5 V
Texas Instruments LMH6629MFE/NOPB	1600 V/µs	1 GHz								Voltage Feedback	250 mA	150 µV	1	15.5 mA	SC-74A SOT-753	SOT-23-5	15 µA	2.7 V	125 °C	-40 °C	Surface Mount	5.5 V
