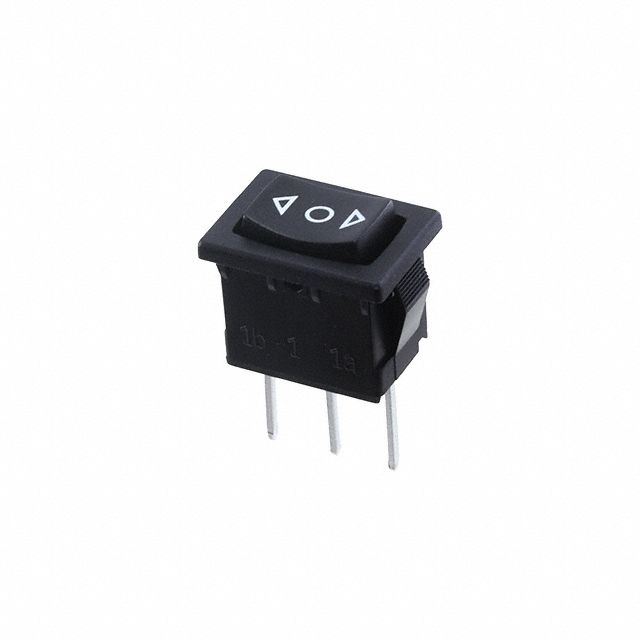

R1966 Series

Manufacturer: E-Switch

Catalog

ROCKER SWITCHES 15A 125VAC SPDT ON-OFF-ON

Part	Mechanical Life	Electrical Life	Current Rating (Amps)	Mounting Type	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Color - Actuator/Cap	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Circuit	Actuator Marking	Termination Style	Voltage Rating - AC	Illumination Voltage (Nominal)	Illumination Type, Color
E-Switch R1966DBLKREDER	30000 Steps	10000 Cycles	15 A	Panel Mount Right Angle Snap-In	Concave (Curved)	-30 ░C	65 °C	On-Off-On	Red	19.4 mm	13 mm	SPDT	No Marking	PC Pin	125 V
E-Switch R1966IBLKBLKAF	30000 Steps	10000 Cycles	15 A	Panel Mount Snap-In	Concave (Curved)	-30 ░C	65 °C	Mom-Off-Mom	Black	19.4 mm	13 mm	SPDT	Dot	Quick Connect	125 V
E-Switch R1966DBLKREDBR			15 A	Panel Mount Right Angle Snap-In	Concave (Curved)	-30 ░C	65 °C	On-Off-On	Red	19.4 mm	13 mm	SPDT	- O =	PC Pin	125 V
E-Switch R1966DBLKBLKIF			15 A	Panel Mount Snap-In	Concave (Curved)	-30 ░C	65 °C	On-Off-On	Black	19.4 mm	13 mm	SPDT	ON OFF	Quick Connect	125 V
E-Switch R1966DBLKBLKHP	30000 Steps	10000 Cycles	15 A	Panel Mount Snap-In	Concave (Curved)	-30 ░C	65 °C	On-Off-On	Black	19.4 mm	13 mm	SPDT	Triangular Arrows with O	PC Pin	125 V
E-Switch R1966FBLKBLKAR			15 A	Panel Mount Right Angle Snap-In	Concave (Curved)	-30 ░C	65 °C	Off-Mom	Black	19.4 mm	13 mm	SPST-NO	Dot	PC Pin	125 V
E-Switch R1966DBLKBLKHF	30000 Steps	10000 Cycles	15 A	Panel Mount Snap-In	Concave (Curved)	-30 ░C	65 °C	On-Off-On	Black	19.4 mm	13 mm	SPDT	Triangular Arrows with O	Quick Connect	125 V
E-Switch R1966AWHTWHTIF	30000 Steps	10000 Cycles	15 A	Panel Mount Snap-In	Concave (Curved)	-30 ░C	65 °C	On-Off	White	19.4 mm	13 mm	SPST	ON OFF	Quick Connect	125 V
E-Switch R1966ABLKBLKEPGRN			15 A	Panel Mount Snap-In	Concave (Curved) - Illuminated	-30 ░C	65 °C	On-Off	Black	19.4 mm	13 mm	SPST	No Marking	PC Pin	125 V	2.2 VDC	Green LED
