2040832 Series

Catalog

EMBOSS TAPING 0.25FPC BF-L-1.3

Part	Connector/Contact Type	Actuator Color	Pitch [x]	Pitch [x]	Current Rating (Amps)	Contact Finish	Mounting Type	Height Above Board	Height Above Board [z]	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Cable End Type	Features	Locking Feature	Voltage Rating	Housing Material	Contact Material	FFC, FCB Thickness	Flat Flex Type	Housing Color	Termination	Number of Positions	Material Flammability Rating

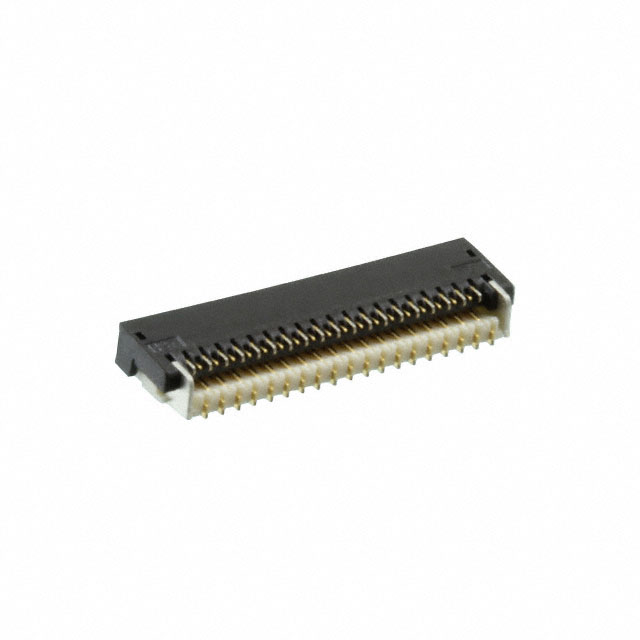

TE Connectivity Raychem Cable Protection 1-2040832-4	Contacts Bottom	Black	0.01 in	0.25 mm	0.2 A	Gold	Surface Mount Right Angle	1.3 mm	0.051 "	Liquid Crystal Polymer (LCP) Glass Filled	-25 °C	85 °C	Tapered	Solder Retention Zero Insertion Force (ZIF)	Slide Lock	50 V	Liquid Crystal Polymer (LCP) Glass Filled	Copper Alloy	0.2 mm	FPC	Natural	Solder	37	UL94 V-0
TE Connectivity Raychem Cable Protection 2-2040832-1	Contacts Bottom	Black	0.01 in	0.25 mm	0.2 A	Gold	Surface Mount Right Angle	1.3 mm	0.051 "	Liquid Crystal Polymer (LCP) Glass Filled	-25 °C	85 °C	Tapered	Solder Retention Zero Insertion Force (ZIF)	Slide Lock	50 V	Liquid Crystal Polymer (LCP) Glass Filled	Copper Alloy	0.2 mm	FPC	Natural	Solder	51	UL94 V-0

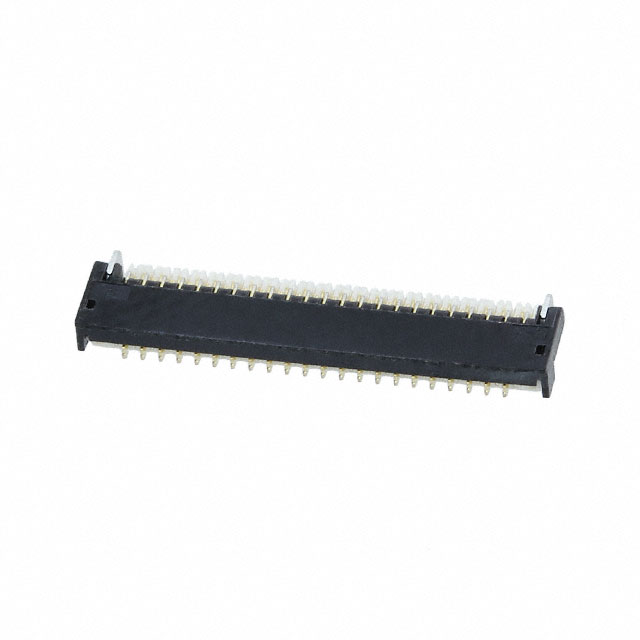

TE Connectivity Raychem Cable Protection 1-2040832-8	Contacts Bottom	Black	0.01 in	0.25 mm	0.2 A	Gold	Surface Mount Right Angle	1.3 mm	0.051 "	Liquid Crystal Polymer (LCP) Glass Filled	-25 °C	85 °C	Tapered	Solder Retention Zero Insertion Force (ZIF)	Slide Lock	50 V	Liquid Crystal Polymer (LCP) Glass Filled	Copper Alloy	0.2 mm	FPC	Natural	Solder	45	UL94 V-0
