AOZ8001 Series
Manufacturer: Alpha & Omega Semiconductor Inc.
Beta
⌘K

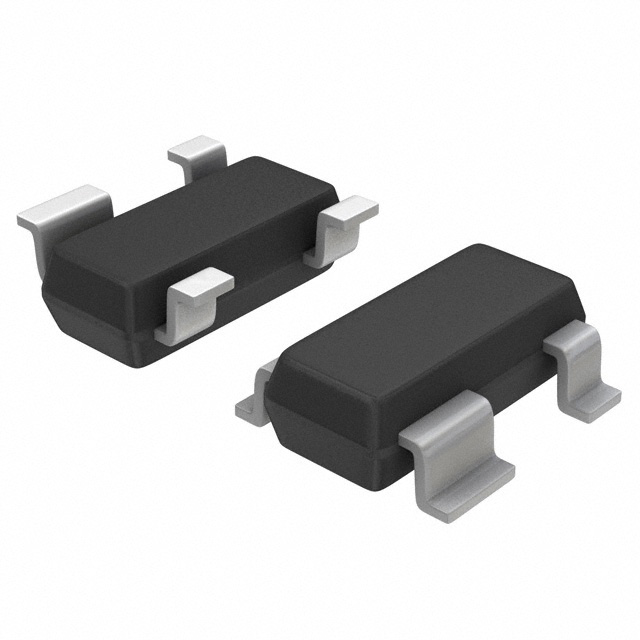

TVS DIODE 5VWM 16VC SOT143-4
| Part | Supplier Device Package | Capacitance @ Frequency | Applications | Voltage - Reverse Standoff (Typ) | Type | Package / Case | Mounting Type | Voltage - Clamping (Max) @ Ipp [Max] | Unidirectional Channels | Power Line Protection | Current - Peak Pulse (10/1000µs) | Voltage - Breakdown (Min) [Min] | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Alpha & Omega Semiconductor Inc. | SOT-143-4 | 1 MHz 1.8 pF | Ethernet | 5 V | Steering (Rail to Rail) | TO-253-4 TO-253AA | Surface Mount | 16 V | 2 | 18 A | 8.5 V | -40 C | 125 °C | |
Alpha & Omega Semiconductor Inc. | SOT-143-4 | 1 MHz 1.8 pF | Ethernet | 12 V | Steering (Rail to Rail) | TO-253-4 TO-253AA | Surface Mount | 19 V | 2 | 13 A | 15 V | -40 C | 125 °C |
