9418 Series
Manufacturer: Belden Inc.
Beta
⌘K

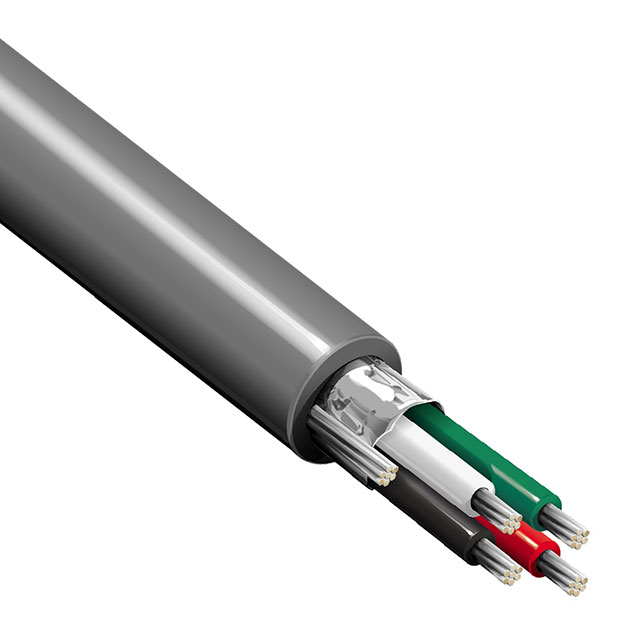

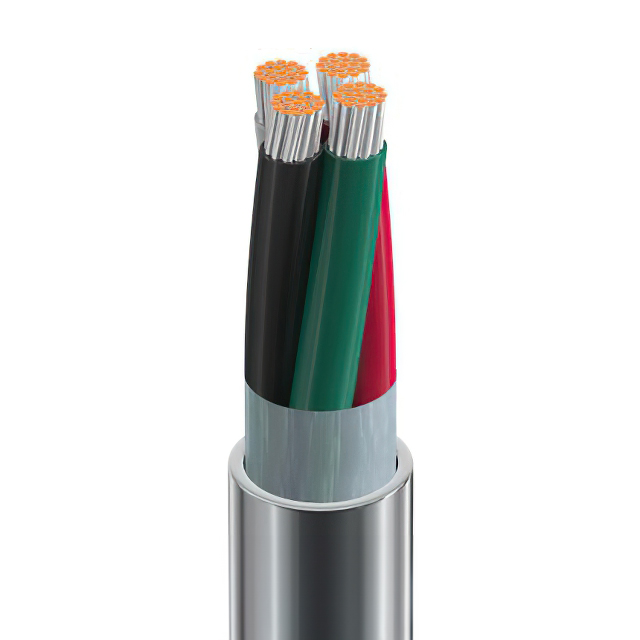

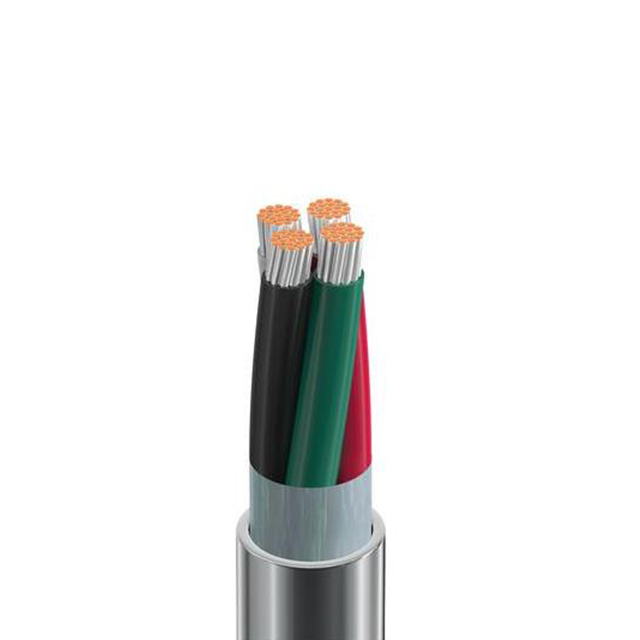

MULTICONDUCTOR CABLE, AUDIO CONTROL, SHIELDED, 4 CONDUCTOR, 18 AWG, 100 FT, 30.5 M
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Conductor Insulation | Cable Type | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Shield Type | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length [x] | Length [x] | Conductor Material | Features | Jacket Color | Ratings | Length | Length | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | 30 AWG | 19 | Audio Control Instrumentation | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 18 AWG | 0.245 " | 6.22 mm | 80 °C | -20 ░C | Foil | 4 | 0.035 in | 0.889 mm | 100 ft | 30.5 m | Copper Tinned | Drain Wire | Chrome | ||||
 Belden Inc. | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | 30 AWG | 19 | Audio Control Instrumentation | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 18 AWG | 0.245 " | 6.22 mm | 80 °C | -20 ░C | Foil | 4 | 0.035 in | 0.889 mm | Copper Tinned | Drain Wire | Chrome | UL Style 2464 | 3048 m | 10000 ft | 300 VDC | ||
 Belden Inc. | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | 30 AWG | 19 | Audio Control Instrumentation | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 18 AWG | 0.245 " | 6.22 mm | 80 °C | -20 ░C | Foil | 4 | 0.035 in | 0.889 mm | Copper Tinned | Drain Wire | Chrome | UL Style 2464 | 304.8 m | 1000 ft | 300 VDC |
