45204 Series
Manufacturer: 3M (TC)
Beta
⌘K

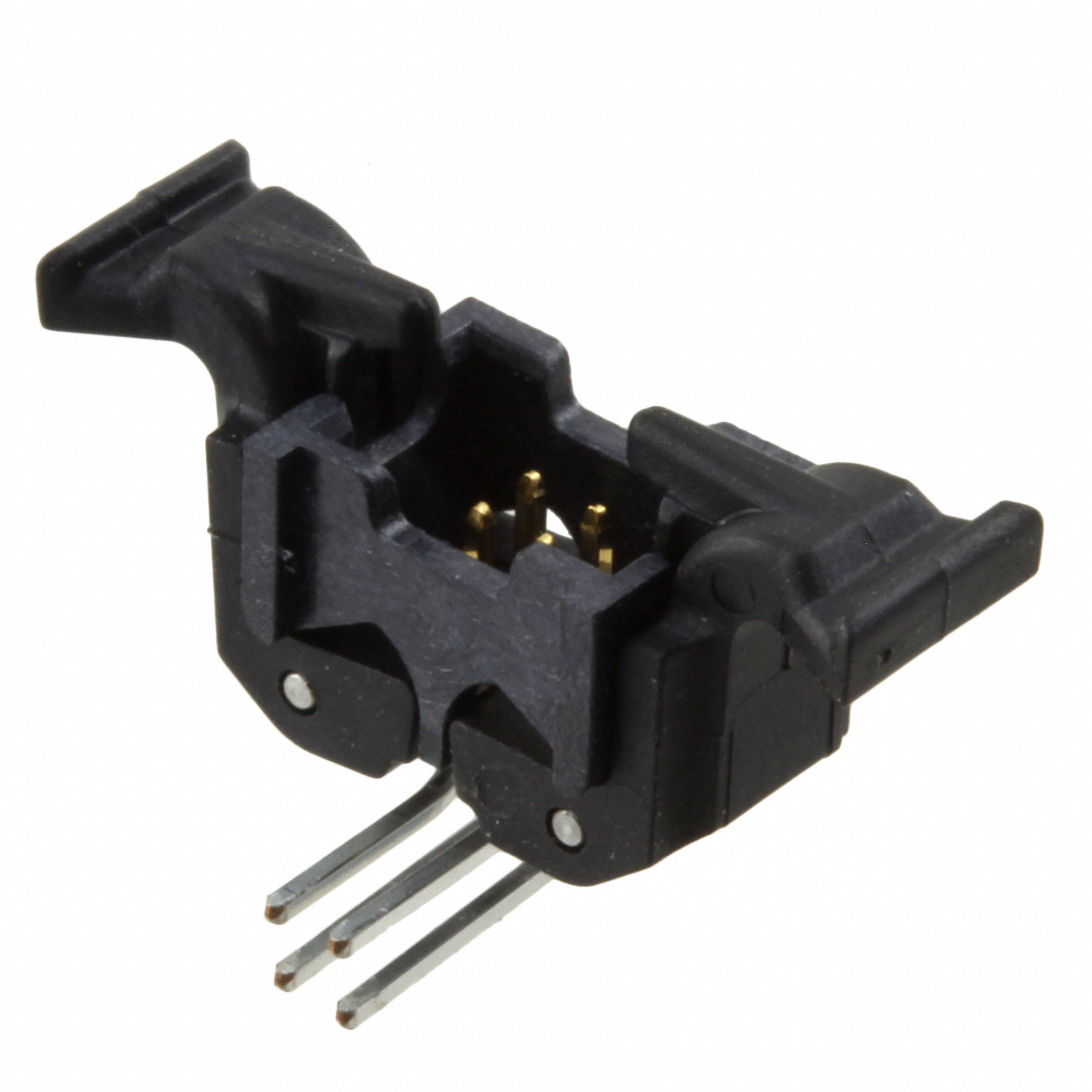

CONN, R/A HEADER, 4POS, 2ROW, 1.27MM, TH ROHS COMPLIANT: YES
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Style | Contact Material | Voltage Rating | Shrouding | Row Spacing - Mating | Row Spacing - Mating | Mounting Type | Contact Shape | Contact Type | Number of Positions Loaded | Number of Rows | Contact Finish - Post | Insulation Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Contact Length - Post | Contact Length - Post | Material Flammability Rating | Connector Type | Contact Finish - Mating | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Fastening Type | Features | Number of Positions | Mated Stacking Heights | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M (TC) | 200 µin | 5.08 µm | Board to Cable/Wire | Copper Alloy | 125 VDC | Shrouded - 4 Wall | 0.05 in | 1.27 mm | Through Hole Right Angle | Square | Male Pin | All | 2 | Tin | Liquid Crystal Polymer (LCP) | 30 Áin | 0.76 Ám | 125 °C | -65 ░C | Solder | 0.094 in | 2.4 mm | UL94 V-0 | Header | Gold | 5.33 mm | 0.21 in | 0.05 in | 1.27 mm | Latch Lock/Eject Hooks Short | Keying Slot | 4 | ||
 3M (TC) | 200 µin | 5.08 µm | Board to Cable/Wire | Copper Alloy | 125 VDC | Shrouded - 4 Wall | 0.05 in | 1.27 mm | Through Hole | Square | Male Pin | All | 2 | Tin | Liquid Crystal Polymer (LCP) | 30 Áin | 0.76 Ám | 125 °C | -65 ░C | Solder | 0.094 in | 2.4 mm | UL94 V-0 | Header | Gold | 5.65 mm | 0.222 " | 0.05 in | 1.27 mm | Push-Pull | Keying Slot | 4 | 5.84 mm 6.6 mm 7.21 mm 8.13 mm | |
3M (TC) | 100 µin | 2.54 µm | Board to Cable/Wire | Copper Alloy | 125 VDC | Shrouded - 4 Wall | 0.05 in | 1.27 mm | Through Hole | Square | Male Pin | All | 2 | Tin | Liquid Crystal Polymer (LCP) | 125 °C | -65 ░C | Solder | 0.094 in | 2.4 mm | UL94 V-0 | Header | Gold | 5.65 mm | 0.222 " | 0.05 in | 1.27 mm | Push-Pull | Keying Slot | 4 | 5.84 mm 6.6 mm 7.21 mm 8.13 mm | Flash | ||
 3M (TC) | 100 µin | 2.54 µm | Board to Cable/Wire | Copper Alloy | 125 VDC | Shrouded - 4 Wall | 0.05 in | 1.27 mm | Surface Mount | Square | Male Pin | All | 2 | Tin | Liquid Crystal Polymer (LCP) | 125 °C | -65 ░C | Solder | UL94 V-0 | Header | Gold | 5.65 mm | 0.222 " | 0.05 in | 1.27 mm | Push-Pull | Keying Slot Pick and Place | 4 | 5.84 mm 6.6 mm 7.21 mm 8.13 mm | Flash |
