ADS9224R Series

16-bit, 3-MSPS, dual-channel, simultaneous-sampling SAR ADC with internal reference and enhanced SPI

Catalog

16-bit, 3-MSPS, dual-channel, simultaneous-sampling SAR ADC with internal reference and enhanced SPI

Part	Sampling Rate (Per Second)	Number of Bits	Utilized IC / Part	Data Interface	Supplied Contents	Number of A/D Converters	Input Range	Input Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Package / Case	Architecture	Ratio - S/H:ADC	Supplier Device Package	Configuration	Mounting Type	Reference Type	Number of Inputs	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]

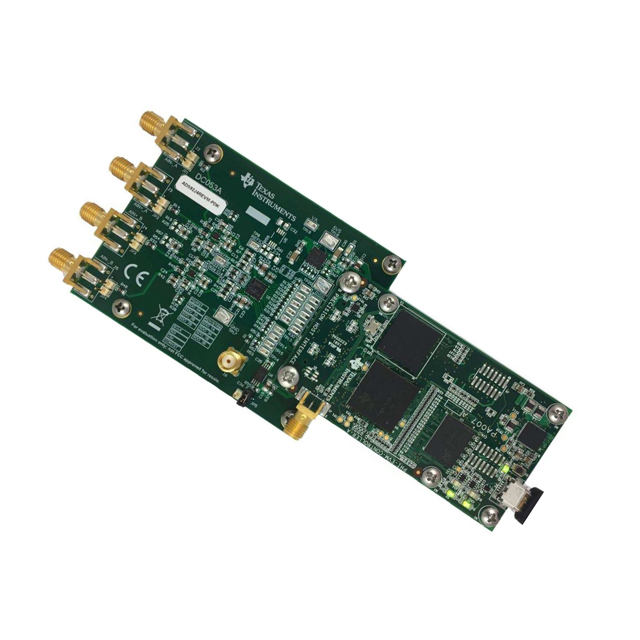

Texas Instruments ADS9224REVM-PDK	3 M	16	ADS9224R	Serial SPI	Board(s)	2	4.096 V
Texas Instruments ADS9224RIRHBR	3 M	16		SPI		2		Differential	Simultaneous Sampling	125 °C	-40 °C	5.5 V	1.65 V	32-VFQFN Exposed Pad	SAR	0:1	32-VQFN (5x5)	ADC	Surface Mount	External Internal	2	5.5 V	4.5 V
Texas Instruments ADS9224RIRHBT	3 M	16		SPI		2		Differential	Simultaneous Sampling	125 °C	-40 °C	5.5 V	1.65 V	32-VFQFN Exposed Pad	SAR	1:1	32-VQFN (5x5)	ADC	Surface Mount	Supply	2	5.5 V	4.5 V

Catalog

16-bit, 3-MSPS, dual-channel, simultaneous-sampling SAR ADC with internal reference and enhanced SPI

Key Features

• High resolution, high throughput:ADS9224R: 16 bits, 3 MSPS, low latency: 333 nsADS9234R: 14 bits, 3.5 MSPS, low latency: 285 nsTwo unipolar, fully differential simultaneously sampled channelsExcellent DC and AC performance:ADS9224R:16-bit NMC DNL, ±2-LSB max INL94-dB SNR, –109-dB THD88-dB SINAD at 1 MHzADS9234R:14-bit NMC DNL, ±1-LSB max INL85.6-dB SNR, –106-dB THD84-dB SINAD at 1 MHzFeature integration:Internal reference and reference buffersInternal REFby2 buffer for setting common-modeData averagingEnhanced-SPI interface for MCUs and FPGAs:Wide read cycle to read data with MCUsClock re-timer for data transfers with digital isolatorsDDR modes for FPGAsParallel byte mode for easy interfaceExtended temperature range: –40°C to +125°CHigh resolution, high throughput:ADS9224R: 16 bits, 3 MSPS, low latency: 333 nsADS9234R: 14 bits, 3.5 MSPS, low latency: 285 nsTwo unipolar, fully differential simultaneously sampled channelsExcellent DC and AC performance:ADS9224R:16-bit NMC DNL, ±2-LSB max INL94-dB SNR, –109-dB THD88-dB SINAD at 1 MHzADS9234R:14-bit NMC DNL, ±1-LSB max INL85.6-dB SNR, –106-dB THD84-dB SINAD at 1 MHzFeature integration:Internal reference and reference buffersInternal REFby2 buffer for setting common-modeData averagingEnhanced-SPI interface for MCUs and FPGAs:Wide read cycle to read data with MCUsClock re-timer for data transfers with digital isolatorsDDR modes for FPGAsParallel byte mode for easy interfaceExtended temperature range: –40°C to +125°C

Description

The ADS92x4R is a pin-compatible, high-speed, dual, simultaneous-sampling, analog-to-digital converters (ADC) with an integrated reference and reference buffer. The device can operate on a single 5-V supply and supports unipolar, fully differential analog input signals with excellent DC and AC specifications. The device has excellent AC performance with analog input frequencies up to 1.5 MHz, which makes the device suitable for wide-bandwidth data acquisition (DAQ) systems. The device supports SPI-compatible serial (enhanced-SPI) and byte-wide parallel interfaces, making the device easy to pair with a diversity of microcontrollers, digital signal processors (DSPs), and field-programmable gate arrays (FPGAs). This device also supports a data averaging feature that provides an AC performance boost in noisy environments. The device comes in a space-saving, 5-mm × 5-mm, VQFN package. The ADS92x4R is specified for the extended temperature range of –40°C to +125°C. The ADS92x4R is a pin-compatible, high-speed, dual, simultaneous-sampling, analog-to-digital converters (ADC) with an integrated reference and reference buffer. The device can operate on a single 5-V supply and supports unipolar, fully differential analog input signals with excellent DC and AC specifications. The device has excellent AC performance with analog input frequencies up to 1.5 MHz, which makes the device suitable for wide-bandwidth data acquisition (DAQ) systems. The device supports SPI-compatible serial (enhanced-SPI) and byte-wide parallel interfaces, making the device easy to pair with a diversity of microcontrollers, digital signal processors (DSPs), and field-programmable gate arrays (FPGAs). This device also supports a data averaging feature that provides an AC performance boost in noisy environments. The device comes in a space-saving, 5-mm × 5-mm, VQFN package. The ADS92x4R is specified for the extended temperature range of –40°C to +125°C.
