JB15HAP Series

Catalog

LOW PROFILE PROCESS SEALED TACTILE

Part	Mechanical Life	Actuator Material	Switch Travel	Outline [x]	Outline [y]	Switch Function	Features	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating @ Voltage	Illumination	Actuator Orientation	Operating Force	Ingress Protection	Circuit	Mounting Type	Actuator Height off PCB, Vertical [z]	Actuator Type
NKK Switches JB15HAP-4BH	1000000 Cycles	Polybutylene Terephthalate (PBT) Glass Filled	0.3 mm	10 mm	10 mm	Off-Mom	Process Sealed	PC Pin	-25 °C	70 °C	0.125 A 24 VDC	Non-Illuminated	Top Actuated	265 gf	IP67 - Dust Tight Waterproof	SPST-NO	Through Hole	14.7 mm	Square Button

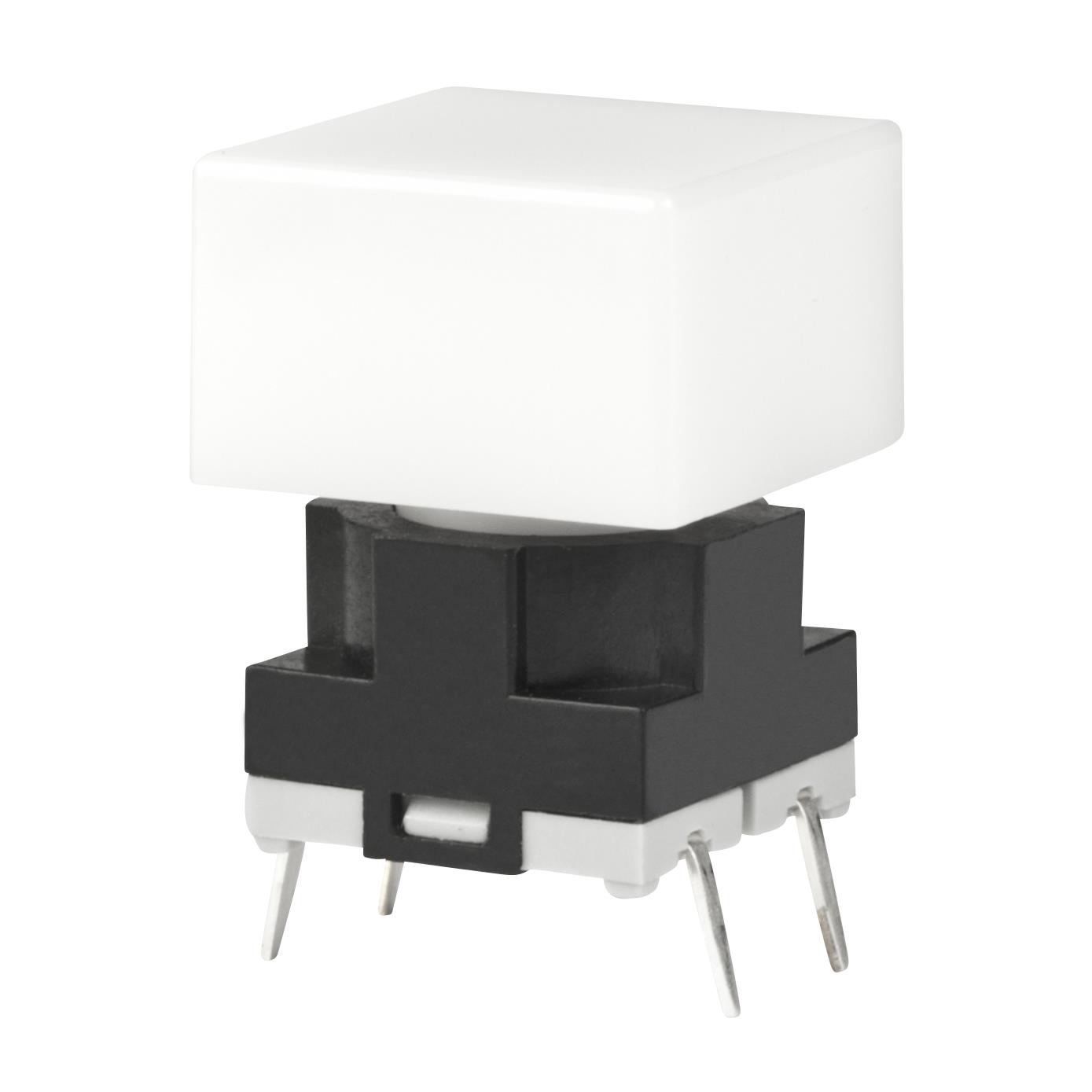

NKK Switches JB15HAP-5B	1000000 Cycles	Polybutylene Terephthalate (PBT) Glass Filled	0.3 mm	10 mm	10 mm	Off-Mom	Process Sealed	PC Pin	-25 °C	70 °C	0.125 A 24 VDC	Non-Illuminated	Top Actuated	265 gf	IP67 - Dust Tight Waterproof	SPST-NO	Through Hole	14.7 mm	Square Button

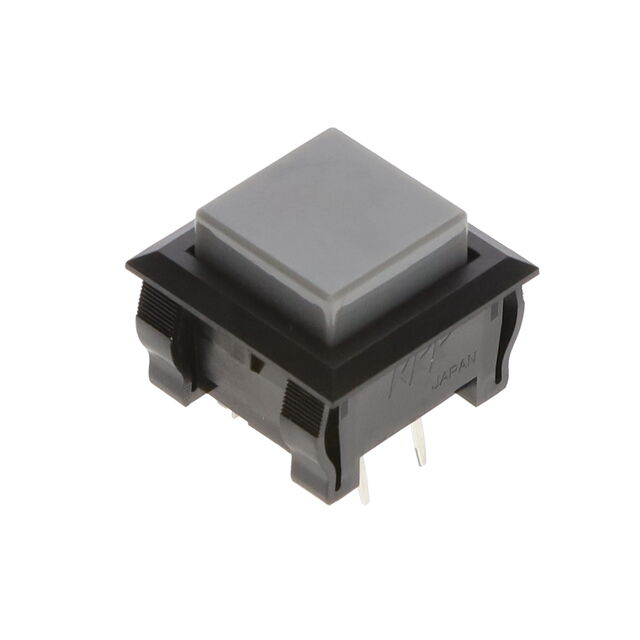

NKK Switches JB15HAP-5H	1000000 Cycles	Polybutylene Terephthalate (PBT) Glass Filled	0.3 mm	10 mm	10 mm	Off-Mom	Process Sealed	PC Pin	-25 °C	70 °C	0.125 A 24 VDC	Non-Illuminated	Top Actuated	265 gf	IP67 - Dust Tight Waterproof	SPST-NO	Through Hole	14.7 mm	Square Button
NKK Switches JB15HAP-4FF	1000000 Cycles	Polybutylene Terephthalate (PBT) Glass Filled	0.3 mm	10 mm	10 mm	Off-Mom	Process Sealed	PC Pin	-25 °C	70 °C	0.125 A 24 VDC	Non-Illuminated	Top Actuated	265 gf	IP67 - Dust Tight Waterproof	SPST-NO	Through Hole	14.7 mm	Square Button

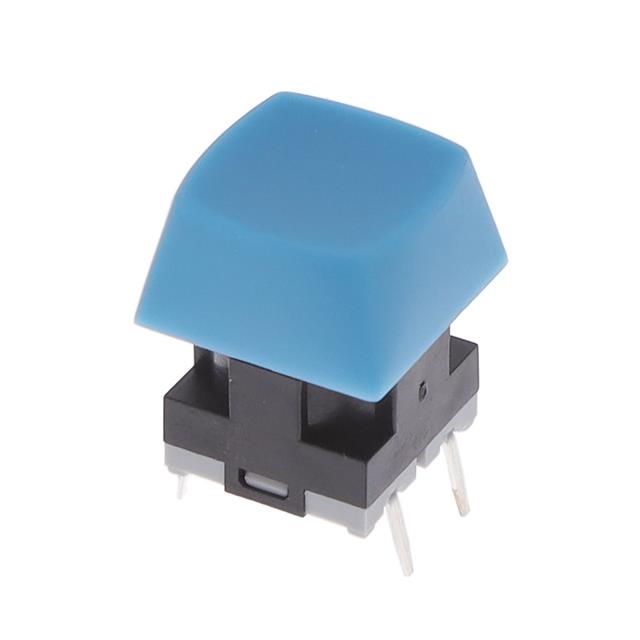

NKK Switches JB15HAP-1A	1000000 Cycles	Polybutylene Terephthalate (PBT) Glass Filled	0.3 mm	10 mm	10 mm	Off-Mom	Process Sealed	PC Pin	-25 °C	70 °C	0.125 A 24 VDC	Non-Illuminated	Top Actuated	265 gf	IP67 - Dust Tight Waterproof	SPST-NO	Through Hole	14.7 mm	Square Button
NKK Switches JB15HAP-1G	1000000 Cycles	Polybutylene Terephthalate (PBT) Glass Filled	0.3 mm	10 mm	10 mm	Off-Mom	Process Sealed	PC Pin	-25 °C	70 °C	0.125 A 24 VDC	Non-Illuminated	Top Actuated	265 gf	IP67 - Dust Tight Waterproof	SPST-NO	Through Hole	14.7 mm	Square Button
NKK Switches JB15HAP-1F	1000000 Cycles	Polybutylene Terephthalate (PBT) Glass Filled	0.3 mm	10 mm	10 mm	Off-Mom	Process Sealed	PC Pin	-25 °C	70 °C	0.125 A 24 VDC	Non-Illuminated	Top Actuated	265 gf	IP67 - Dust Tight Waterproof	SPST-NO	Through Hole	14.7 mm	Square Button
NKK Switches JB15HAP-4CB	1000000 Cycles	Polybutylene Terephthalate (PBT) Glass Filled	0.3 mm	10 mm	10 mm	Off-Mom	Process Sealed	PC Pin	-25 °C	70 °C	0.125 A 24 VDC	Non-Illuminated	Top Actuated	265 gf	IP67 - Dust Tight Waterproof	SPST-NO	Through Hole	14.7 mm	Square Button
NKK Switches JB15HAP-1B	1000000 Cycles	Polybutylene Terephthalate (PBT) Glass Filled	0.3 mm	10 mm	10 mm	Off-Mom	Process Sealed	PC Pin	-25 °C	70 °C	0.125 A 24 VDC	Non-Illuminated	Top Actuated	265 gf	IP67 - Dust Tight Waterproof	SPST-NO	Through Hole	14.7 mm	Square Button
NKK Switches JB15HAP-1C	1000000 Cycles	Polybutylene Terephthalate (PBT) Glass Filled	0.3 mm	10 mm	10 mm	Off-Mom	Process Sealed	PC Pin	-25 °C	70 °C	0.125 A 24 VDC	Non-Illuminated	Top Actuated	265 gf	IP67 - Dust Tight Waterproof	SPST-NO	Through Hole	14.7 mm	Square Button
