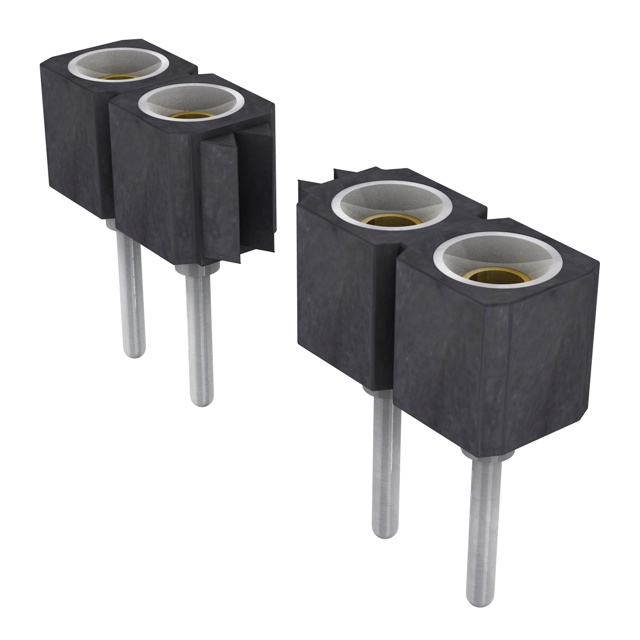

311-83 Series

Manufacturer: Preci-Dip

Catalog

CONN SOCKET 6POS 0.1 GOLD PCB

Part	Insulation Material	Contact Shape	Contact Material	Number of Positions	Insulation Color	Number of Positions Loaded	Contact Finish - Post	Contact Type	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Finish - Mating	Termination	Current Rating (Amps)	Fastening Type	Number of Rows	Connector Type	Mounting Type	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions [custom]
Preci-Dip 311-83-106-41-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	6	Black	All	Tin	Female Socket	29.5 µin	0.75 µm	Gold	Solder	3 A	Push-Pull	1	Socket	Through Hole	0.165 in	4.19 mm	0.1 "	2.54 mm	UL94 V-0	4.1 mm	0.161 in	-55 C	125 °C
Preci-Dip 311-83-144-41-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	44	Black	All	Tin	Female Socket	29.5 µin	0.75 µm	Gold	Solder	3 A	Push-Pull	1	Socket	Through Hole	0.165 in	4.19 mm	0.1 "	2.54 mm	UL94 V-0	4.1 mm	0.161 in	-55 C	125 °C
Preci-Dip 311-83-107-41-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	7	Black	All	Tin	Female Socket	29.5 µin	0.75 µm	Gold	Solder	3 A	Push-Pull	1	Socket	Through Hole	0.165 in	4.19 mm	0.1 "	2.54 mm	UL94 V-0	4.1 mm	0.161 in	-55 C	125 °C
Preci-Dip 311-83-158-41-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	58	Black	All	Tin	Female Socket	29.5 µin	0.75 µm	Gold	Solder	3 A	Push-Pull	1	Socket	Through Hole	0.165 in	4.19 mm	0.1 "	2.54 mm	UL94 V-0	4.1 mm	0.161 in	-55 C	125 °C
Preci-Dip 311-83-137-41-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	37	Black	All	Tin	Female Socket	29.5 µin	0.75 µm	Gold	Solder	3 A	Push-Pull	1	Socket	Through Hole	0.165 in	4.19 mm	0.1 "	2.54 mm	UL94 V-0	4.1 mm	0.161 in	-55 C	125 °C
Preci-Dip 311-83-131-41-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper		Black	All	Tin	Female Socket	29.5 µin	0.75 µm	Gold	Solder	3 A	Push-Pull	1	Socket	Through Hole	0.165 in	4.19 mm	0.1 "	2.54 mm	UL94 V-0	4.1 mm	0.161 in	-55 C	125 °C	31
Preci-Dip 311-83-105-41-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	5	Black	All	Tin	Female Socket	29.5 µin	0.75 µm	Gold	Solder	3 A	Push-Pull	1	Socket	Through Hole	0.165 in	4.19 mm	0.1 "	2.54 mm	UL94 V-0	4.1 mm	0.161 in	-55 C	125 °C
Preci-Dip 311-83-122-41-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	22	Black	All	Tin	Female Socket	29.5 µin	0.75 µm	Gold	Solder	3 A	Push-Pull	1	Socket	Through Hole	0.165 in	4.19 mm	0.1 "	2.54 mm	UL94 V-0	4.1 mm	0.161 in	-55 C	125 °C
Preci-Dip 311-83-152-41-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	52	Black	All	Tin	Female Socket	29.5 µin	0.75 µm	Gold	Solder	3 A	Push-Pull	1	Socket	Through Hole	0.165 in	4.19 mm	0.1 "	2.54 mm	UL94 V-0	4.1 mm	0.161 in	-55 C	125 °C
Preci-Dip 311-83-140-41-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	40	Black	All	Tin	Female Socket	29.5 µin	0.75 µm	Gold	Solder	3 A	Push-Pull	1	Socket	Through Hole	0.165 in	4.19 mm	0.1 "	2.54 mm	UL94 V-0	4.1 mm	0.161 in	-55 C	125 °C
