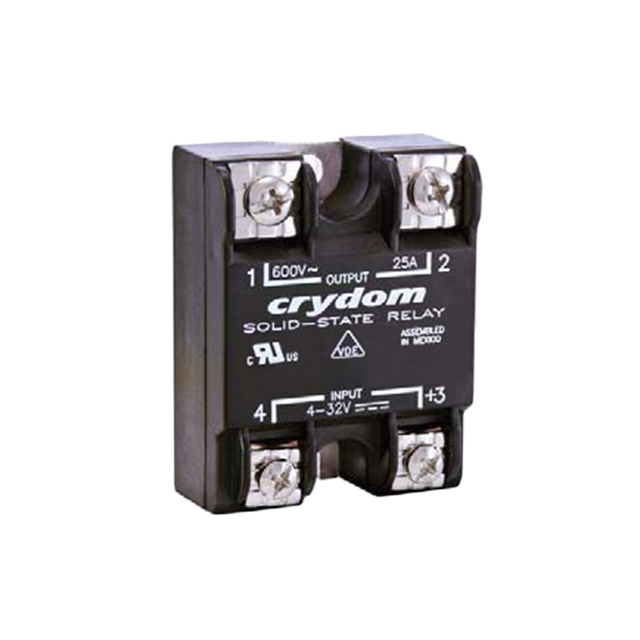

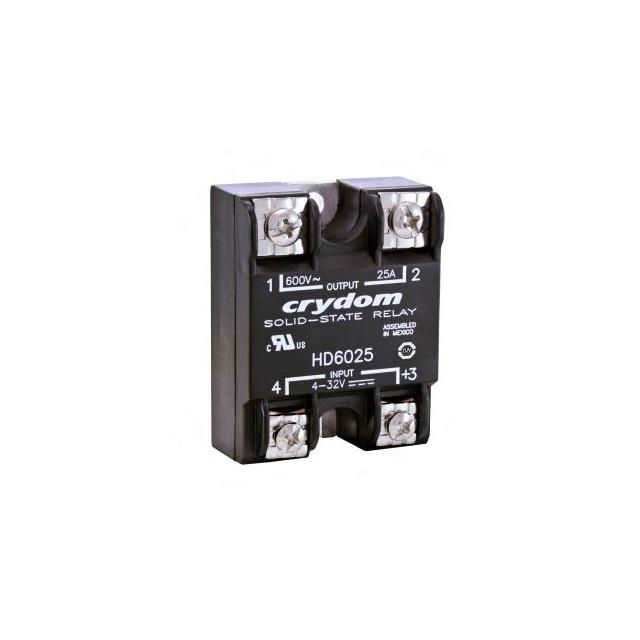

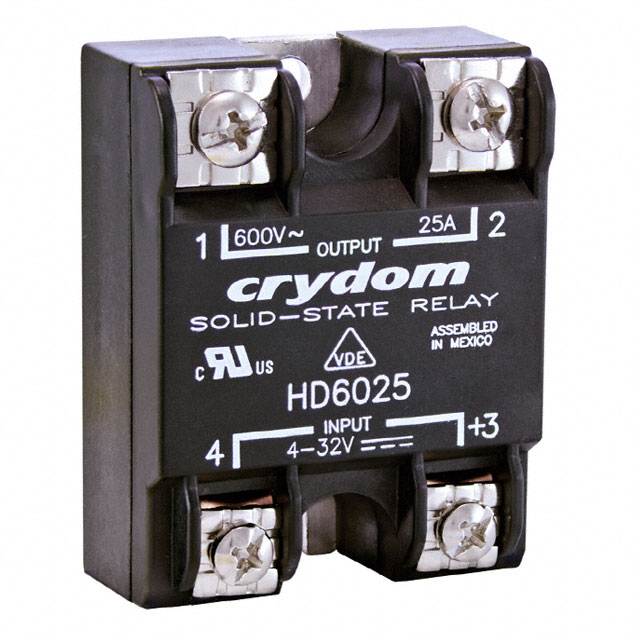

HD6012 Series
Manufacturer: Sensata-Crydom
Beta
⌘K
SSR RELAY SPST-NO 125A 48-660V
| Part | Load Current | Termination Style | Mounting Type | Output Type | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Load [Max] | Voltage - Load [Min] | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sensata-Crydom | 125 A | Screw Terminal | Chassis Mount | AC Zero Cross | 80 °C | -40 C | Hockey Puck | 3 V | 32 VDC | 660 V | 48 V | CE CSA cURus TUV |
 Sensata-Crydom | 125 A | Screw Terminal | Chassis Mount | AC | 80 °C | -40 C | Hockey Puck | 3 V | 32 VDC | 660 V | 48 V | CE CSA cURus TUV |
 Sensata-Crydom | 125 A | Screw Terminal | Chassis Mount | AC Zero Cross | 80 °C | -40 C | Hockey Puck | 4 V | 32 VDC | 660 V | 48 V | CE CSA cURus TUV |
Sensata-Crydom | 125 A | Screw Terminal | Chassis Mount | AC | 80 °C | -40 C | Hockey Puck | 3 V | 32 VDC | 660 V | 48 V | CE CSA cURus TUV |
