1825143 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

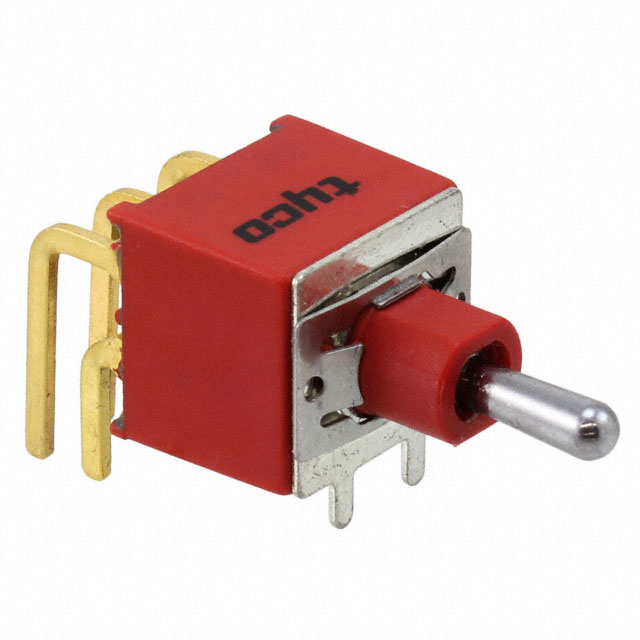

SWITCH TOGGLE DPDT 5A 120V
| Part | Ingress Protection | Current Rating (Amps) | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Actuator Material | Switch Function | Features | Voltage Rating - AC | Circuit | Actuator Type | Voltage Rating - DC | Electrical Life | Bushing Thread | Actuator Length [x] | Illumination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | IP67 - Dust Tight Waterproof | 5 A | Through Hole Right Angle | -30 ░C | 85 °C | PC Pin | Brass Nickel Plated | On-On | Process Sealed | 120 V | DPDT | Standard Round | 28 V | 6000 Cycles | Unthreaded | 0.5 in | Non-Illuminated |
TE Connectivity Raychem Cable Protection | IP67 - Dust Tight Waterproof | 5 A | Through Hole | -30 ░C | 85 °C | PC Pin | Brass Nickel Plated | On-On | Process Sealed | 120 V | DPDT | Standard Round | 28 V | 6000 Cycles | Unthreaded | 7.62 mm | Non-Illuminated |
 TE Connectivity Raychem Cable Protection | IP67 - Dust Tight Waterproof | 0.4 VA | Through Hole Right Angle | -30 ░C | 85 °C | PC Pin | Brass Nickel Plated | On-Off-Mom | Process Sealed | 20 V | DPDT | Standard Round | 20 V | 6000 Cycles | Unthreaded | 7.62 mm | Non-Illuminated |
