M80-502 Series

Catalog

DATAMATE J-TEK DIL MALE VERTICAL

Part	Mated Stacking Heights	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Contact Shape	Insulation Material	Contact Finish - Mating	Mounting Type	Termination	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Number of Positions	Contact Type	Connector Type	Pitch - Mating	Pitch - Mating	Style	Fastening Type	Number of Rows [custom]	Voltage Rating	Features	Contact Material	Material Flammability Rating	Contact Finish - Post	Shrouding	Insulation Color	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]
Harwin Inc. M80-5022622P	7.55 mm 8.05 mm	12 µin	0.3 µm	2.2 A	Circular	Polyphenylene Sulfide (PPS) Glass Filled	Gold	Surface Mount	Solder	2 mm	0.079 in	29.5 µin	0.75 µm	26	Male Pin	Header	0.079 "	2 mm	Board to Cable/Wire	Threaded	2	800 VAC	Keying Slot Mating Flange Pick and Place	Phosphor Bronze	UL94 V-0	Tin-Lead	Shrouded - 4 Wall	Black	5.6 mm	0.22 in	-55 C	125 °C	All
Harwin Inc. M80-5024222P	7.55 mm 8.05 mm	12 µin	0.3 µm	2.2 A	Circular	Polyphenylene Sulfide (PPS) Glass Filled	Gold	Surface Mount	Solder	2 mm	0.079 in	29.5 µin	0.75 µm	42	Male Pin	Header	0.079 "	2 mm	Board to Cable/Wire	Threaded	2	800 VAC	Keying Slot Mating Flange Pick and Place	Phosphor Bronze	UL94 V-0	Tin-Lead	Shrouded - 4 Wall	Black	5.6 mm	0.22 in	-55 C	125 °C	All

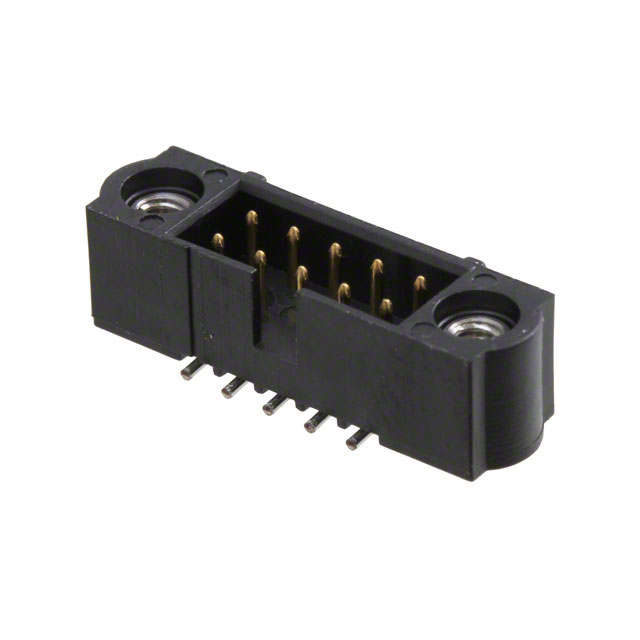

Harwin Inc. M80-5021042	7.55 mm 7.95 mm 10.1 mm 11.1 mm 13.65 mm 15.1 mm			2.2 A	Circular	Polyphenylene Sulfide (PPS) Glass Filled	Gold	Surface Mount	Solder	2 mm	0.079 in	29.5 µin	0.75 µm	10	Male Pin	Header	0.079 "	2 mm	Board to Board Cable	Threaded	2	800 V	Keying Slot Mating Flange	Phosphor Bronze	UL94 V-0	Tin-Lead	Shrouded - 4 Wall	Black	5.6 mm	0.22 in	-55 C	125 °C	All	118.1 µin	3 µm
Harwin Inc. M80-5020622P	7.55 mm 8.05 mm	12 µin	0.3 µm	2.2 A	Circular	Polyphenylene Sulfide (PPS) Glass Filled	Gold	Surface Mount	Solder	2 mm	0.079 in	29.5 µin	0.75 µm	6	Male Pin	Header	0.079 "	2 mm	Board to Cable/Wire	Threaded	2	800 VAC	Keying Slot Mating Flange Pick and Place	Phosphor Bronze	UL94 V-0	Tin-Lead	Shrouded - 4 Wall	Black	5.6 mm	0.22 in	-55 C	125 °C	All
Harwin Inc. M80-5021442	7.55 mm 7.95 mm 10.1 mm 11.1 mm 13.65 mm 15.1 mm			2.2 A	Circular	Polyphenylene Sulfide (PPS) Glass Filled	Gold	Surface Mount	Solder	2 mm	0.079 in	29.5 µin	0.75 µm	14	Male Pin	Header	0.079 "	2 mm	Board to Board Cable	Threaded	2	800 V	Keying Slot Mating Flange	Phosphor Bronze	UL94 V-0	Tin-Lead	Shrouded - 4 Wall	Black	5.6 mm	0.22 in	-55 C	125 °C	All	118.1 µin	3 µm
Harwin Inc. M80-5022022P	7.55 mm 8.05 mm	12 µin	0.3 µm	2.2 A	Circular	Polyphenylene Sulfide (PPS) Glass Filled	Gold	Surface Mount	Solder	2 mm	0.079 in	29.5 µin	0.75 µm	20	Male Pin	Header	0.079 "	2 mm	Board to Cable/Wire	Threaded	2	800 VAC	Keying Slot Mating Flange Pick and Place	Phosphor Bronze	UL94 V-0	Tin-Lead	Shrouded - 4 Wall	Black	5.6 mm	0.22 in	-55 C	125 °C	All

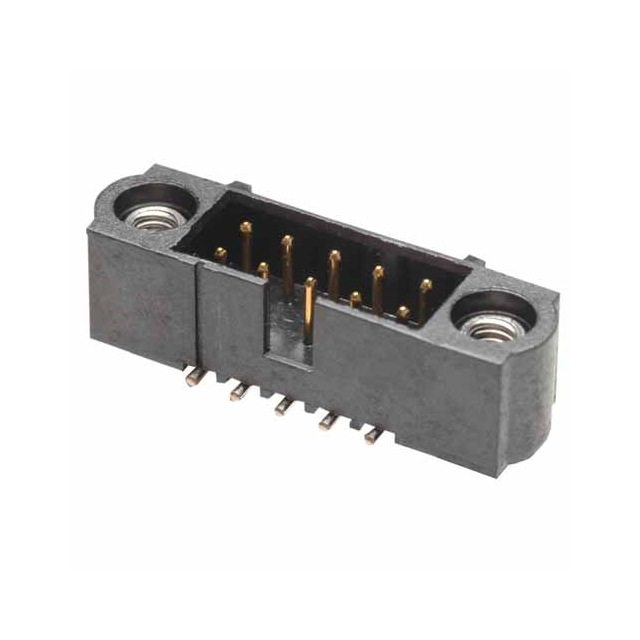

Harwin Inc. M80-5020622	7.55 mm 7.95 mm 10.1 mm 11.1 mm 13.65 mm 15.1 mm			2.2 A	Circular	Polyphenylene Sulfide (PPS) Glass Filled	Gold	Surface Mount	Solder	2 mm	0.079 in	29.5 µin	0.75 µm	6	Male Pin	Header	0.079 "	2 mm	Board to Board Cable	Threaded	2	800 V	Keying Slot Mating Flange	Phosphor Bronze	UL94 V-0	Tin-Lead	Shrouded - 4 Wall	Black	5.6 mm	0.22 in	-55 C	125 °C	All	118.1 µin	3 µm

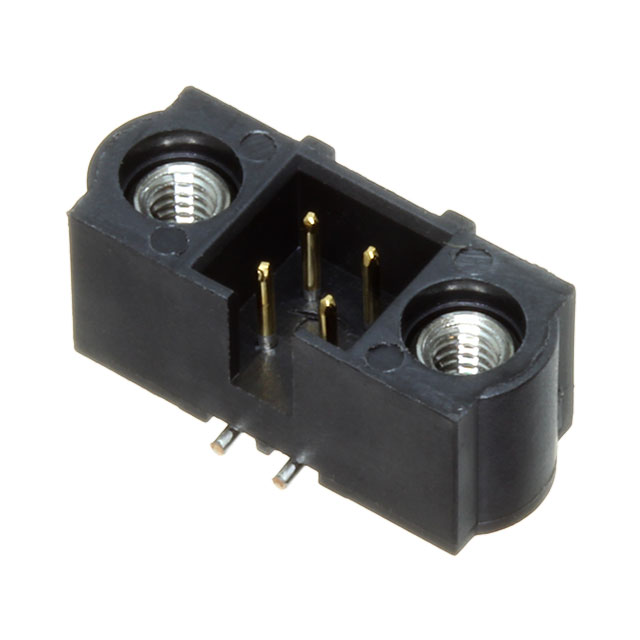

Harwin Inc. M80-5020442	7.55 mm 7.95 mm 10.1 mm 11.1 mm 13.65 mm 15.1 mm			2.2 A	Circular	Polyphenylene Sulfide (PPS) Glass Filled	Gold	Surface Mount	Solder	2 mm	0.079 in	29.5 µin	0.75 µm	4	Male Pin	Header	0.079 "	2 mm	Board to Board Cable	Threaded	2	800 V	Keying Slot Mating Flange	Phosphor Bronze	UL94 V-0	Tin	Shrouded - 4 Wall	Black	5.6 mm	0.22 in	-55 C	125 °C	All	118.1 µin	3 µm
Harwin Inc. M80-5025022	7.55 mm 7.95 mm 10.1 mm 11.1 mm 13.65 mm 15.1 mm			2.2 A	Circular	Polyphenylene Sulfide (PPS) Glass Filled	Gold	Surface Mount	Solder	2 mm	0.079 in	29.5 µin	0.75 µm	50	Male Pin	Header	0.079 "	2 mm	Board to Board Cable	Threaded	2	800 V	Keying Slot Mating Flange	Phosphor Bronze	UL94 V-0	Tin-Lead	Shrouded - 4 Wall	Black	5.6 mm	0.22 in	-55 C	125 °C	All	118.1 µin	3 µm

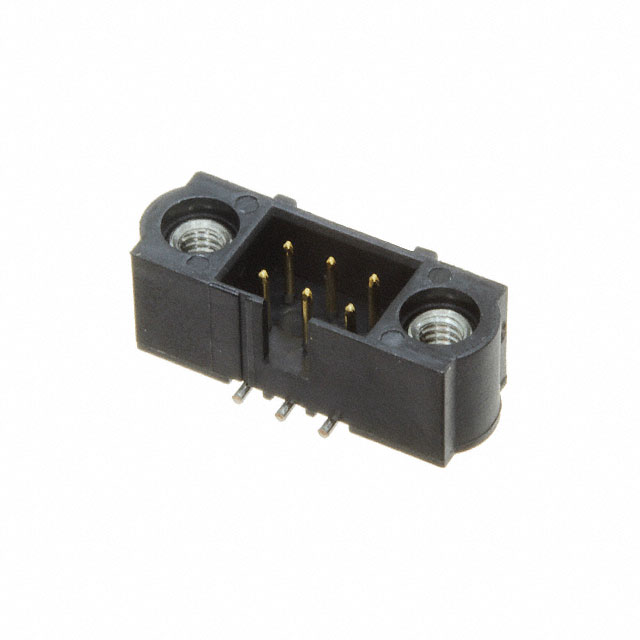

Harwin Inc. M80-5020642	7.55 mm 7.95 mm 10.1 mm 11.1 mm 13.65 mm 15.1 mm			2.2 A	Circular	Polyphenylene Sulfide (PPS) Glass Filled	Gold	Surface Mount	Solder	2 mm	0.079 in	29.5 µin	0.75 µm	6	Male Pin	Header	0.079 "	2 mm	Board to Board Cable	Threaded	2	800 V	Keying Slot Mating Flange	Phosphor Bronze	UL94 V-0	Tin-Lead	Shrouded - 4 Wall	Black	5.6 mm	0.22 in	-55 C	125 °C	All	118.1 µin	3 µm
