MSMD022 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

SERVOMOTOR 3000 RPM 200V

Part	Termination Style	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Features	Function	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Weight	Weight	Power - Rated	Voltage - Rated	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Mounting Hole Spacing	Mounting Hole Spacing	Torque - Max Momentary (oz-in / mNm)	Torque - Max Momentary (oz-in / mNm)	Approval Agency	Operating Temperature [Max]	Type	RPM	Encoder Type	Weight
Panasonic Industrial Automation Sales MSMD022J1U	Wire Leads	2.362 in	2.362 in	60 mm	60 mm	Key Oil Seal	Servomotor	30 mm	1.181 in	11 mm	0.433 in	816.5 g	1.8 lbs	200 W	200 VAC	90.65 oz-in	640 mNm	70 mm	2.756 in	1910 mNm	270.5 oz-in	CE CSA cULus TUV UL	40 °C	AC Motor	3000 RPM
Panasonic Industrial Automation Sales MSMD022G1S	Wire Leads	2.362 in	2.362 in	60 mm	60 mm	Key	Servomotor	30 mm	1.181 in	11 mm	0.433 in	816.5 g	1.8 lbs	200 W	200 VAC	90.65 oz-in	640 mNm	70 mm	2.756 in	1910 mNm	270.5 oz-in	CE CSA cULus TUV UL	40 °C	AC Motor	3000 RPM	Incremental

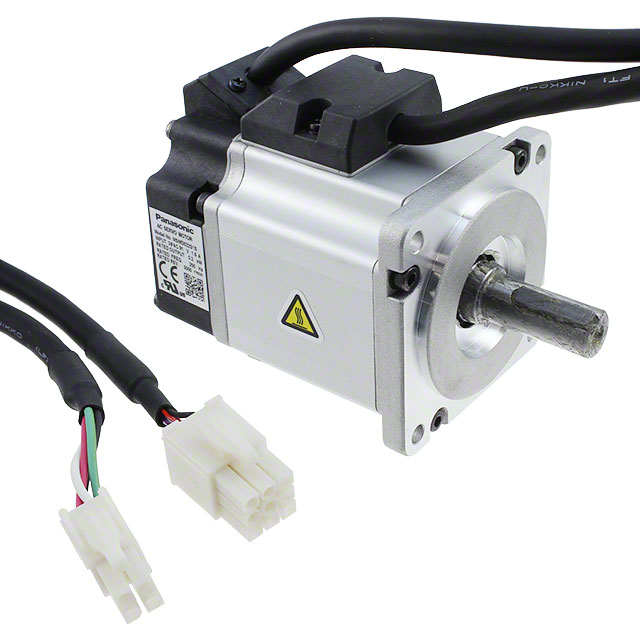

Panasonic Industrial Automation Sales MSMD022S1S	Wire Leads	2.362 in	2.362 in	60 mm	60 mm	Key	Servomotor	30 mm	1.181 in	11 mm	0.433 in	816.5 g	1.8 lbs	200 W	200 VAC	90.65 oz-in	640 mNm	70 mm	2.756 in	1910 mNm	270.5 oz-in	CE CSA cULus TUV UL	40 °C	AC Motor	3000 RPM	Absolute

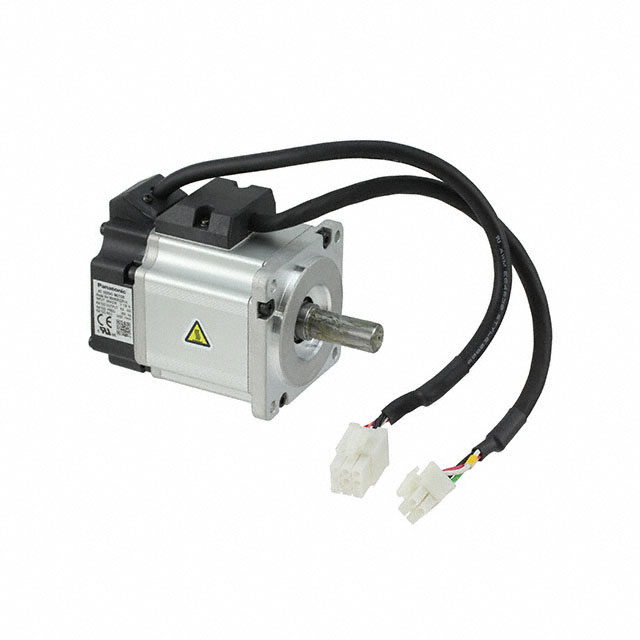

Panasonic Industrial Automation Sales MSMD022S1A	Wire Leads	2.362 in	2.362 in	60 mm	60 mm		Servomotor	30 mm	1.181 in	11 mm	0.433 in	816.5 g	1.8 lbs	200 W	200 VAC	90.65 oz-in	640 mNm	70 mm	2.756 in	1910 mNm	270.5 oz-in	CE CSA cULus TUV UL	40 °C	AC Motor	3000 RPM	Absolute

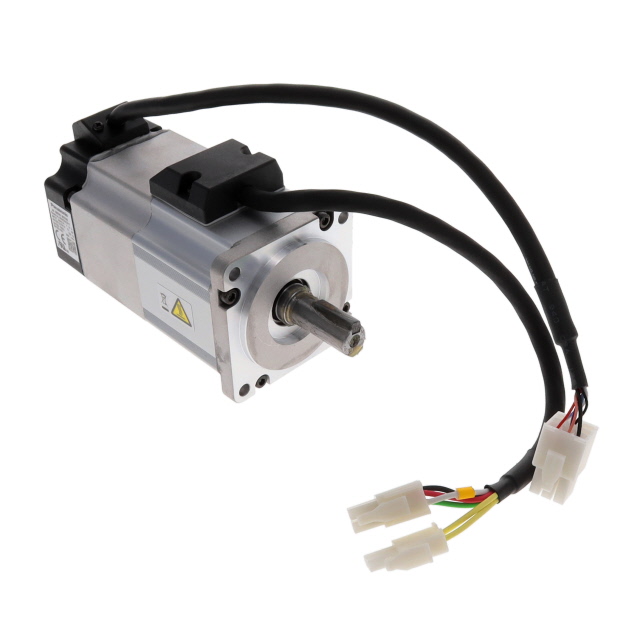

Panasonic Industrial Automation Sales MSMD022S1T	Wire Leads	2.362 in	2.362 in	60 mm	60 mm	Brake Key	Servomotor	30 mm	1.181 in	11 mm	0.433 in		1.3 kg	200 W	200 VAC	90.65 oz-in	640 mNm	70 mm	2.756 in	1910 mNm	270.5 oz-in	CE CSA cULus TUV UL	40 °C	AC Motor	3000 RPM	Absolute	2.8 lbs
Panasonic Industrial Automation Sales MSMD022S1C	Wire Leads	2.362 in	2.362 in	60 mm	60 mm	Oil Seal	Servomotor	30 mm	1.181 in	11 mm	0.433 in	816.5 g	1.8 lbs	200 W	200 VAC	90.65 oz-in	640 mNm	70 mm	2.756 in	1910 mNm	270.5 oz-in	CE CSA cULus TUV UL	40 °C	AC Motor	3000 RPM	Absolute

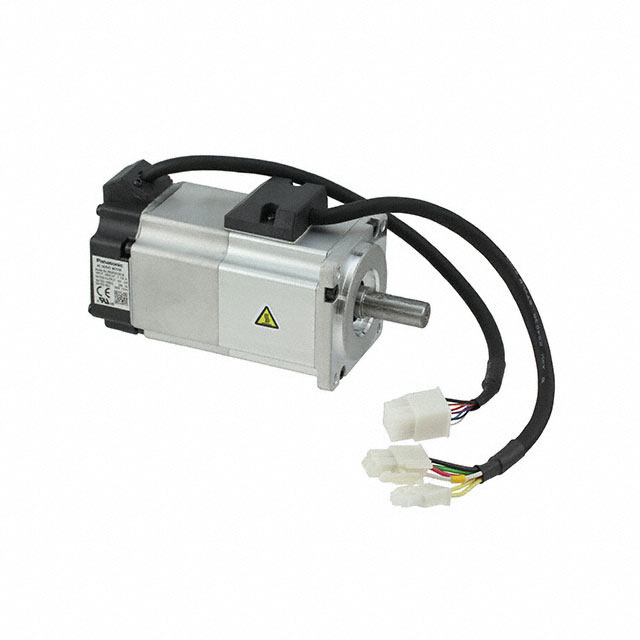

Panasonic Industrial Automation Sales MSMD022S1B	Wire Leads	2.362 in	2.362 in	60 mm	60 mm	Brake	Servomotor	30 mm	1.181 in	11 mm	0.433 in		1.3 kg	200 W	200 VAC	90.65 oz-in	640 mNm	70 mm	2.756 in	1910 mNm	270.5 oz-in	CE CSA cULus TUV UL	40 °C	AC Motor	3000 RPM	Absolute	2.8 lbs
Panasonic Industrial Automation Sales MSMD022G1A	Wire Leads	2.362 in	2.362 in	60 mm	60 mm		Servomotor	30 mm	1.181 in	11 mm	0.433 in	816.5 g	1.8 lbs	200 W	200 VAC	90.65 oz-in	640 mNm	70 mm	2.756 in	1910 mNm	270.5 oz-in	CE CSA cULus TUV UL	40 °C	AC Motor	3000 RPM	Incremental
Panasonic Industrial Automation Sales MSMD022G1U	Wire Leads	2.362 in	2.362 in	60 mm	60 mm	Key Oil Seal	Servomotor	30 mm	1.181 in	11 mm	0.433 in	816.5 g	1.8 lbs	200 W	200 VAC	90.65 oz-in	640 mNm	70 mm	2.756 in	1910 mNm	270.5 oz-in	CE CSA cULus TUV UL	40 °C	AC Motor	3000 RPM	Incremental
Panasonic Industrial Automation Sales MSMD022P1C	Wire Leads	2.362 in	2.362 in	60 mm	60 mm	Oil Seal	Servomotor	30 mm	1.181 in	11 mm	0.433 in	816.5 g	1.8 lbs	200 W	200 VAC	90.65 oz-in	640 mNm	70 mm	2.756 in	1910 mNm	270.5 oz-in	CE CSA cULus TUV UL	40 °C	AC Motor	3000 RPM	Incremental
