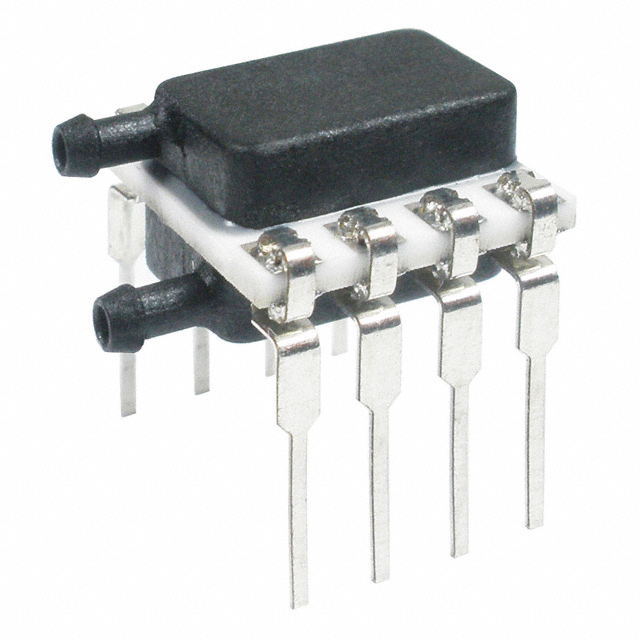

HSCDRRT Series

Catalog

SENSOR 30PSIG 0.08" 4.5V 8DIP

Part	Package / Case	Package / Case	Package / Case	Operating Pressure	Operating Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Output [Min]	Output [Max]	Applications	Port Style	Output Type	Supplier Device Package	Pressure Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Maximum Pressure [Max]	Maximum Pressure [Max]	Features	Port Size	Port Size	Port Size	Mounting Type	Accuracy	Output	Maximum Pressure	Maximum Pressure
Honeywell Sensing and Productivity Solutions HSCDRRT030PGAA5	8-DIP Dual Ports Same Side	13.3 mm	0.524 "	206.84 kPa	30 PSI	85 °C	-20 C	0.5 V	4.5 V	Board Mount	Barbed	Analog Voltage	8-DIP	Vented Gauge	4.75 V	5.25 V	PC Pin	60 PSI	413.69 kPa	Amplified Output Temperature Compensated	1.93 mm	Dual Male Tube	0.08 "	Through Hole	0.25 %
Honeywell Sensing and Productivity Solutions HSCDRRT100PGAA5	8-DIP Dual Ports Same Side	13.3 mm	0.524 "	689.48 kPa	100 PSI	85 °C	-20 C	0.5 V	4.5 V	Board Mount	Barbed	Analog Voltage	8-DIP	Vented Gauge	4.75 V	5.25 V	PC Pin	250 PSI	1723.69 kPa	Amplified Output Temperature Compensated	1.93 mm	Dual Male Tube	0.08 "	Through Hole	0.25 %

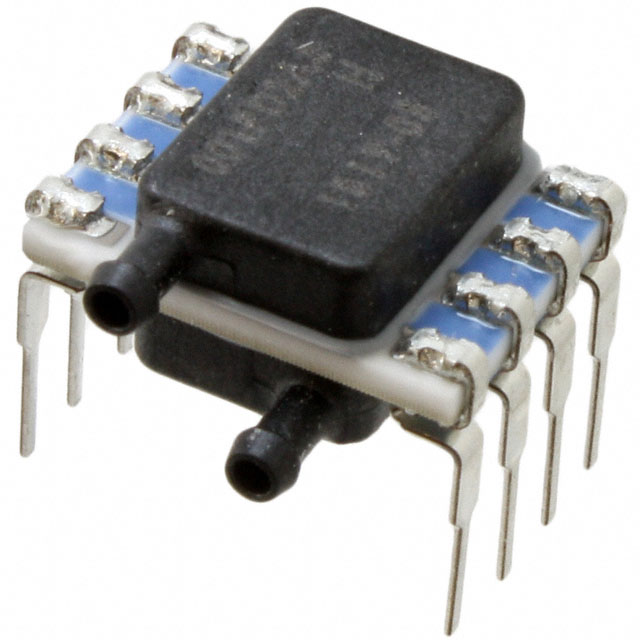

Honeywell Sensing and Productivity Solutions HSCDRRT001PD2A3	8-DIP Dual Ports Same Side	13.3 mm	0.524 "			85 °C	-20 C			Board Mount	Barbed	I2C	8-DIP	Differential	3 V	3.6 V	PC Pin			Amplified Output Temperature Compensated	1.93 mm	Dual Male Tube	0.08 "	Through Hole	0.25 %	12 b	68.95 kPa	10 PSI
