176976 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN HEADER VERT 3POS 3.96MM
| Part | Applications | Insulation Color | Fastening Type | Material Flammability Rating | Insulation Material | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Height | Insulation Height | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Contact Shape | Mounting Type | Number of Rows | Termination | Contact Finish - Post | Shrouding | Pitch - Mating | Pitch - Mating | Contact Type | Current Rating (Amps) | Style | Connector Type | Contact Material | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

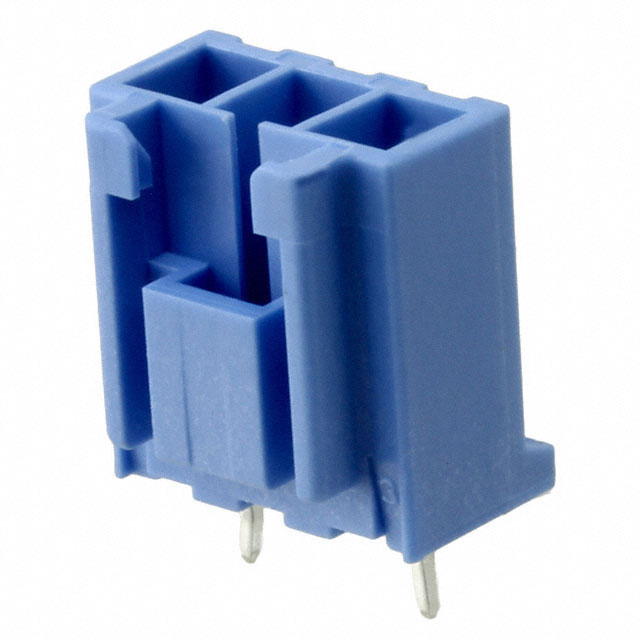

 TE Connectivity AMP Connectors | General Purpose | Blue | Locking Ramp | UL94 V-0 | Glass Filled Nylon 6/6 Polyamide (PA66) | 3.81 mm | 0.15 in | 14 mm | 0.551 " | 2 | -30 ░C | 105 ░C | Rectangular | Through Hole | 1 | Kinked Pin Solder | Tin | Shrouded - 4 Wall | 3.96 mm | 0.156 in | Tab | Varies by Wire Gauge | Board to Cable/Wire | Header | Brass | |
 TE Connectivity AMP Connectors | General Purpose | Natural | Locking Ramp | UL94 V-0 | Glass Filled Nylon 6/6 Polyamide (PA66) | 3.81 mm | 0.15 in | 14 mm | 0.551 " | 2 | -30 ░C | 105 ░C | Rectangular | Through Hole | 1 | Kinked Pin Solder | Tin | Shrouded - 4 Wall | 3.96 mm | 0.156 in | Tab | Varies by Wire Gauge | Board to Cable/Wire | Header | Brass | |
 TE Connectivity AMP Connectors | General Purpose | Natural | Locking Ramp | UL94 V-0 | Glass Filled Nylon 6/6 Polyamide (PA66) | 3.81 mm | 0.15 in | 14 mm | 0.551 " | -30 ░C | 105 ░C | Rectangular | Through Hole | 1 | Solder | Tin | Shrouded - 4 Wall | 3.96 mm | 0.156 in | Tab | Varies by Wire Gauge | Board to Cable/Wire | Header | Brass | All | |
 TE Connectivity AMP Connectors | General Purpose | Natural | Locking Ramp | UL94 V-0 | Glass Filled Nylon 6/6 Polyamide (PA66) | 3.81 mm | 0.15 in | 14 mm | 0.551 " | -30 ░C | 105 ░C | Rectangular | Through Hole | 1 | Kinked Pin Solder | Tin | Shrouded - 4 Wall | 3.96 mm | 0.156 in | Tab | Varies by Wire Gauge | Board to Cable/Wire | Header | Brass | All | |
 TE Connectivity AMP Connectors | General Purpose | Natural | Locking Ramp | UL94 V-0 | Glass Filled Nylon 6/6 Polyamide (PA66) | 3.81 mm | 0.15 in | 14 mm | 0.551 " | 2 | -30 ░C | 105 ░C | Rectangular | Through Hole | 1 | Solder | Tin | Shrouded - 4 Wall | 3.96 mm | 0.156 in | Tab | Varies by Wire Gauge | Board to Cable/Wire | Header | Brass |
