746613 Series

Catalog

CONN DIP HDR IDC 20POS VERT

Part	Number of Positions Loaded	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Cable Pitch	Cable Pitch	Color	Cable Termination	Mounting Type	Board-Side Pitch	Board-Side Pitch	Number of Rows [custom]	Connector Type	Row Spacing	Row Spacing	Features	Wire Gauge [Min] [custom]	Wire Gauge [custom]	Wire Gauge [Max] [custom]	Wire Gauge [custom]	Number of Positions
TE Connectivity AMP Connectors 746613-5	All	Tin-Lead	2.54 µm	100 µin	1.27 mm	0.05 in	Black	IDC	Through Hole	2.54 mm	0.1 "	2	DIP Header Ribbon Cable	0.3 in	7.62 mm	Feed Through	26 AWG	Solid Stranded	30 AWG	28 AWG	20
TE Connectivity AMP Connectors 746613-3	All	Tin-Lead	2.54 µm	100 µin	1.27 mm	0.05 in	Black	IDC	Through Hole	2.54 mm	0.1 "	2	DIP Header Ribbon Cable	0.3 in	7.62 mm	Feed Through	26 AWG	Solid Stranded	30 AWG	28 AWG	16

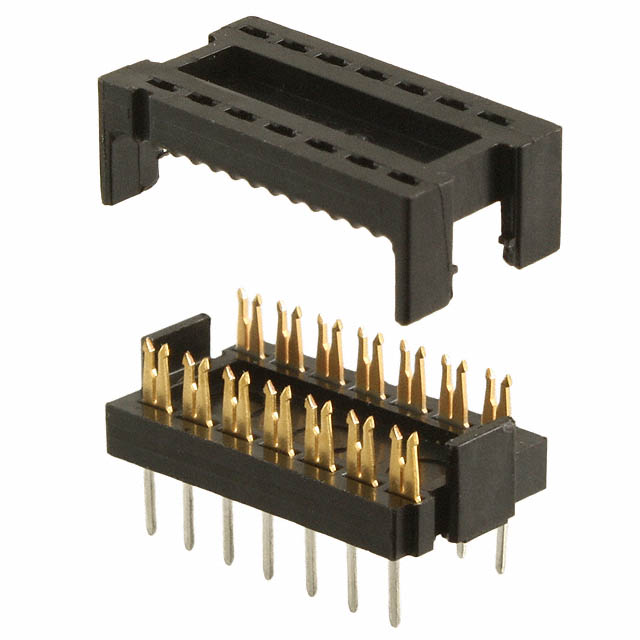

TE Connectivity AMP Connectors 746613-2	All	Tin-Lead	2.54 µm	100 µin	1.27 mm	0.05 in	Black	IDC	Through Hole	2.54 mm	0.1 "	2	DIP Header Ribbon Cable	0.3 in	7.62 mm	Feed Through	26 AWG	Solid Stranded	30 AWG	28 AWG	14
