LRGSCK611 Series

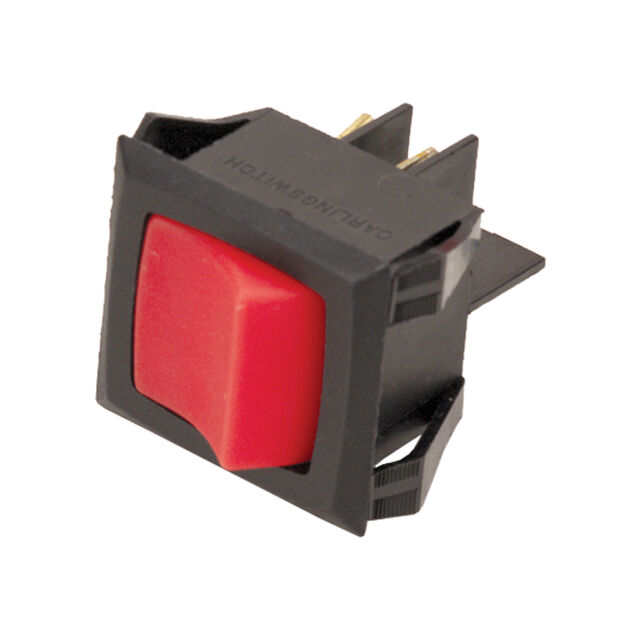

Rocker Switches LRGSCK611RSWD/125N

Manufacturer: Carling Technologies

Catalog

Rocker Switches LRGSCK611RSWD/125N

Catalog

Rocker Switches LRGSCK611RSWD/125N

Part	Electrical Life	Current Rating (Amps)	Circuit	Mounting Type	Color - Actuator/Cap	Illumination Type, Color	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Illumination Voltage (Nominal)	Switch Function	Voltage Rating - AC	Actuator Marking	Approval Agency	Actuator Type
Carling Technologies LRGSCK611-C-G-B-B/125N	100000 Cycles	20 A	SPST	Panel Mount Snap-In	Green	Green Neon	85 °C	-40 °C	Quick Connect - 0.250" (6.3mm)	25.4 mm	28.58 mm	125 VAC	On-Off	125 V	Horizontal ON OFF	CSA UL	Concave (Curved) - Illuminated
Carling Technologies LRGSCK611-R-L-B-A/125N	100000 Cycles	20 A	SPST	Panel Mount Snap-In	Green	Green Neon	85 °C	-40 °C	Quick Connect - 0.250" (6.3mm)	25.4 mm	28.58 mm	125 VAC	On-Off	125 V	OFF ON Vertical	CSA UL	Concave (Curved) - Illuminated
Carling Technologies LRGSCK611-C-C-B-E/250N	100000 Cycles	20 A	SPST	Panel Mount Snap-In	Clear	Clear/White Neon	85 °C	-40 °C	Quick Connect - 0.250" (6.3mm)	25.4 mm	28.58 mm	250 VAC	On-Off	125 V	O -	CSA UL	Concave (Curved) - Illuminated
Carling Technologies LRGSCK611-R-S-B-E/250N	100000 Cycles	20 A	SPST	Panel Mount Snap-In	Red	Neon Red	85 °C	-40 °C	Quick Connect - 0.250" (6.3mm)	25.4 mm	28.58 mm	250 VAC	On-Off	125 V	O -	CSA UL	Concave (Curved) - Illuminated
Carling Technologies LRGSCK611-R-S-B-0/250N	100000 Cycles	20 A	DPST	Panel Mount Snap-In	Red	Neon Red	85 °C	-40 °C	Solder Lug	22 mm	30 mm	125 VAC	On-Off	125 V	No Marking	CSA UL	Concave (Curved) - Illuminated
Carling Technologies LRGSCK611-C-R-B-A/125N	100000 Cycles	20 A	SPST	Panel Mount Snap-In	Clear (Red Filter/Diffuser)	Clear/Red Neon	85 °C	-40 °C	Quick Connect - 0.250" (6.3mm)	25.4 mm	28.58 mm	125 VAC	On-Off	125 V	OFF ON Vertical	CSA UL	Concave (Curved) - Illuminated
Carling Technologies LRGSCK611-C-G-B-H/125N	100000 Cycles	20 A	SPST	Panel Mount Snap-In	Green	Green Neon	85 °C	-40 °C	Quick Connect - 0.250" (6.3mm)	25.4 mm	28.58 mm	125 VAC	On-Off	125 V	OFF O - ON Vertical	CSA UL	Concave (Curved) - Illuminated
Carling Technologies LRGSCK611-C-R-B-B/125N	100000 Cycles	20 A	SPST	Panel Mount Snap-In	Clear (Red Filter/Diffuser)	Clear/Red Neon	85 °C	-40 °C	Quick Connect - 0.250" (6.3mm)	25.4 mm	28.58 mm	125 VAC	On-Off	125 V	Horizontal ON OFF	CSA UL	Concave (Curved) - Illuminated
Carling Technologies LRGSCK611-R-S-B-B/250N	100000 Cycles	20 A	SPST	Panel Mount Snap-In	Red	Neon Red	85 °C	-40 °C	Quick Connect - 0.250" (6.3mm)	25.4 mm	28.58 mm	250 VAC	On-Off	125 V	Horizontal ON OFF	CSA UL	Concave (Curved) - Illuminated
Carling Technologies LRGSCK611-R-C-B-E/250N	100000 Cycles	20 A	SPST	Panel Mount Snap-In	Clear	Clear/White Neon	85 °C	-40 °C	Quick Connect - 0.250" (6.3mm)	25.4 mm	28.58 mm	250 VAC	On-Off	125 V	O -	CSA UL	Concave (Curved) - Illuminated
