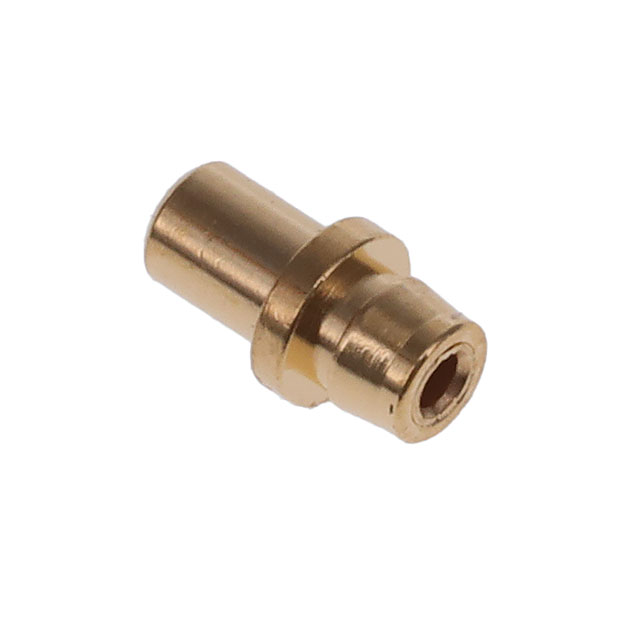

6453-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
PRESS-FIT RECEPTACLE FOR NON PLA
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Contact Material | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Length - Overall [x] | Length - Overall [x] | Socket Depth | Socket Depth | Tail Type | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Mounting Hole Diameter | Mounting Hole Diameter | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Gold | Beryllium Copper | 0.64 mm | 0.015 " | 0.025 in | 0.38 mm | 0.162 in | 4.12 mm | 3.25 mm | 0.128 in | No Tail | 2.31 mm | 0.091 " | 30 Áin | 0.76 Ám | 0.067 in | 1.7 mm | Press-Fit |
