SVS1.25 Series

Catalog

FORK TERMINALS, PVC INSULATED, 1

Part	Tongue Inside Opening	Tongue Inside Opening	Material - Insulation	Mounting Type	Insulation	Color	Contact Material	Wire Gauge [Min]	Wire Gauge [Max]	Length - Overall [x]	Length - Overall [x]	Stud/Tab Size	Width - Outer Edges	Width - Outer Edges	Contact Finish	Termination	Terminal Type	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Width - Outer Edges [x]
Remington Industries SVS1.25-3.5-100	3.71 mm	0.146 in	Poly-Vinyl Chloride (PVC)	Free Hanging (In-Line)	Insulated	Red	Copper	16 AWG	22 AWG	21 mm	0.827 in	6 Stud	0.224 in	5.7 mm	Tin	Crimp	Standard

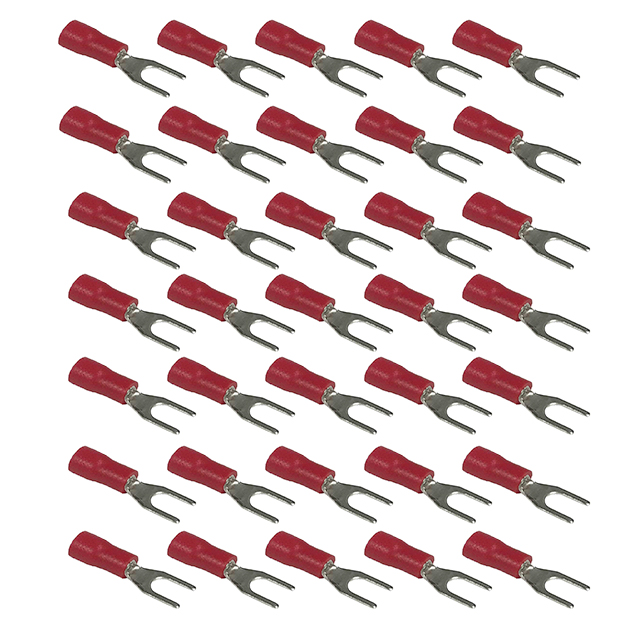

Remington Industries SVS1.25-5-100			Poly-Vinyl Chloride (PVC)	Free Hanging (In-Line)	Insulated	Red	Copper	16 AWG	22 AWG	21 mm	0.827 in	10 Stud		8.1 mm	Tin	Crimp	Standard	5.31 mm	0.209 in	0.319 in

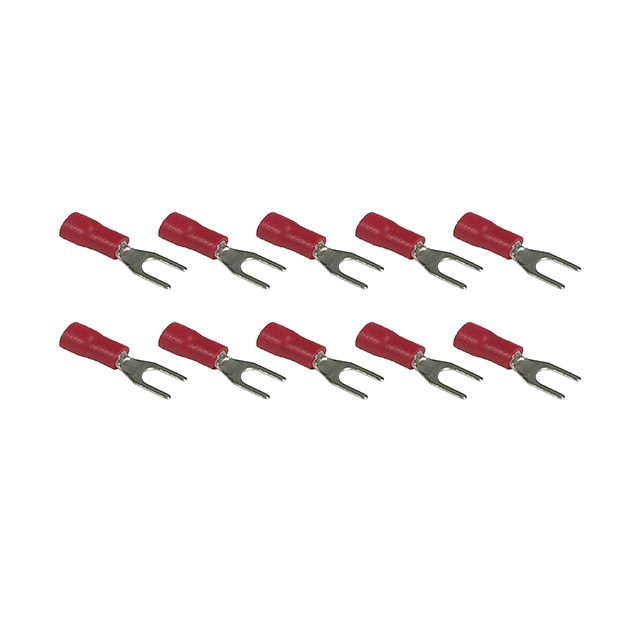

Remington Industries SVS1.25-4-10			Poly-Vinyl Chloride (PVC)	Free Hanging (In-Line)	Insulated	Red	Copper	16 AWG	22 AWG	21 mm	0.827 in	8 Stud	0.252 in	6.4 mm	Tin	Crimp	Standard	4.29 mm	0.169 in
Remington Industries SVS1.25-4-100			Poly-Vinyl Chloride (PVC)	Free Hanging (In-Line)	Insulated	Red	Copper	16 AWG	22 AWG	21 mm	0.827 in	8 Stud	0.252 in	6.4 mm	Tin	Crimp	Standard	4.29 mm	0.169 in
Remington Industries SVS1.25-3.5-10	3.71 mm	0.146 in	Poly-Vinyl Chloride (PVC)	Free Hanging (In-Line)	Insulated	Red	Copper	16 AWG	22 AWG	21 mm	0.827 in	6 Stud	0.224 in	5.7 mm	Tin	Crimp	Standard
Remington Industries SVS1.25-5-10			Poly-Vinyl Chloride (PVC)	Free Hanging (In-Line)	Insulated	Red	Copper	16 AWG	22 AWG	21 mm	0.827 in	10 Stud		8.1 mm	Tin	Crimp	Standard	5.31 mm	0.209 in	0.319 in
