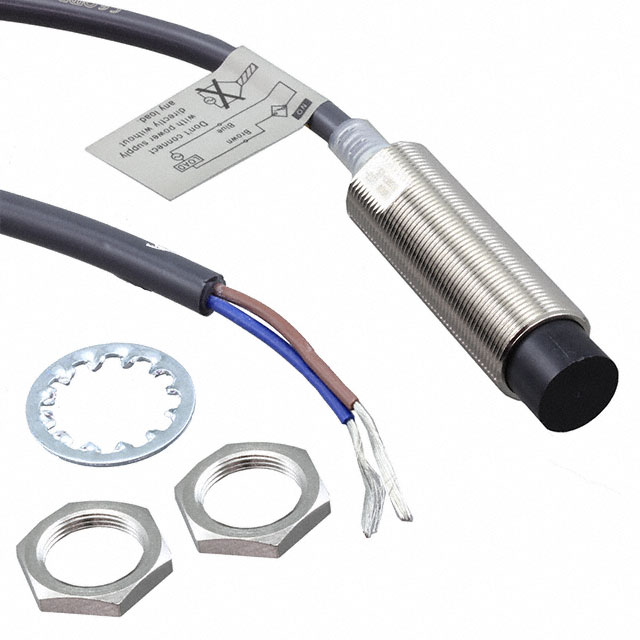

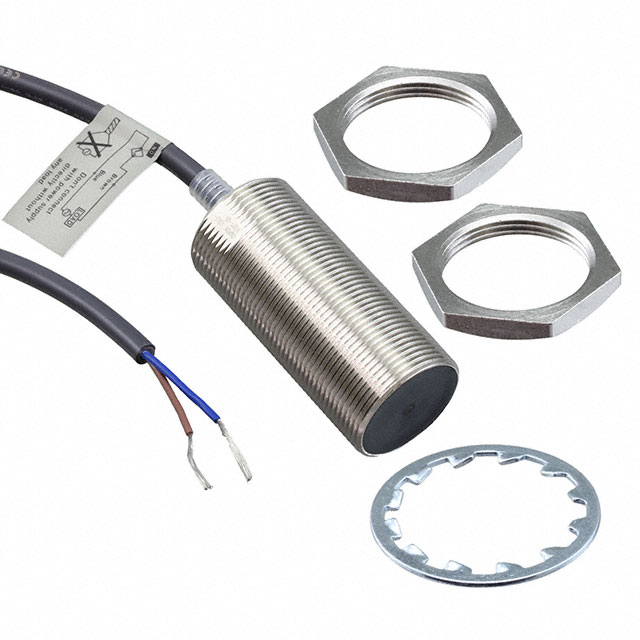

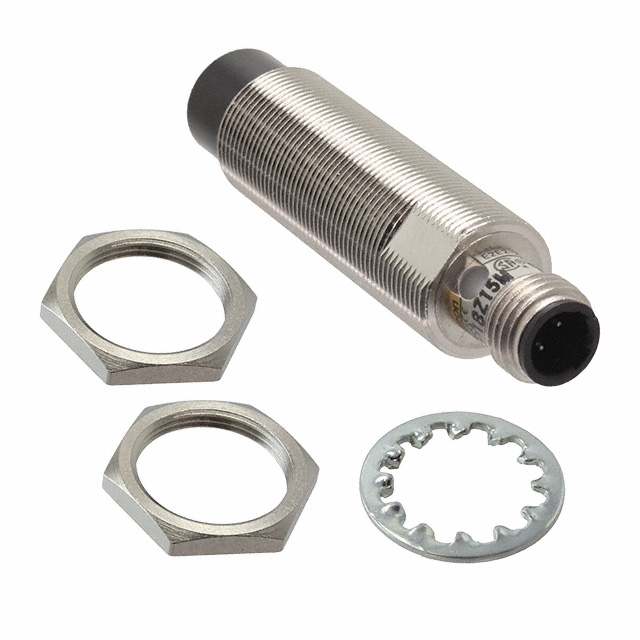

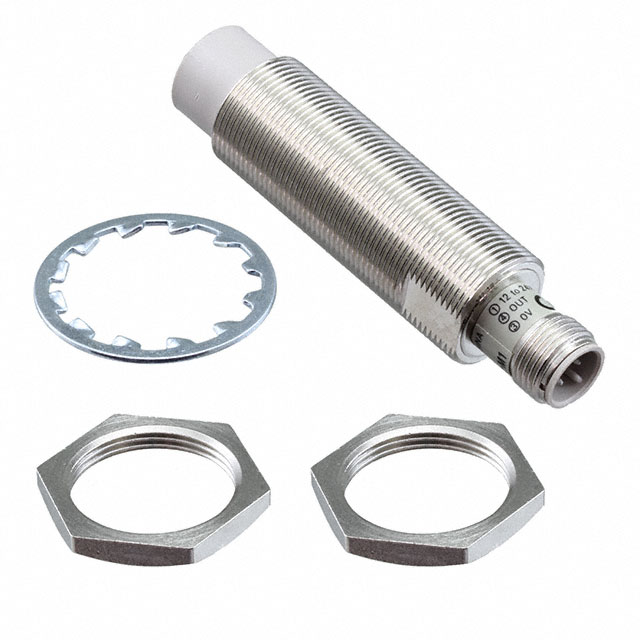

E2E2-X10 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
SENS PROX M18 10MM NPN-NC UNSHLD
| Part | Shielding | Response Frequency | Output Type | Termination Style | Sensor Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Ingress Protection | Material - Body | Sensing Distance | Sensing Distance | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Indicator | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | ||||||||||||||||
Omron Automation and Safety | Shielded | 25 Hz | 2-Wire SCR-NO | Cable Leads | Inductive | 20 VAC | 264 VAC | IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 4 NEMA 6 | Nickel-Plated Brass | 10 mm | 0.394 in | 85 °C | -40 C | Cylinder Threaded - M30 | LED | |
 Omron Automation and Safety | Shielded | 25 Hz | 2-Wire SCR-NO | Cable Leads | Inductive | 20 VAC | 264 VAC | IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 4 NEMA 6 | Nickel-Plated Brass | 10 mm | 0.394 in | 85 °C | -40 C | Cylinder Threaded - M30 | LED | |
Omron Automation and Safety | Unshielded | 200 Hz | PNP-NC | Connector | Inductive | 10 VDC | 55 V | IP67 | Nickel-Plated Brass | 10 mm | 0.394 in | 85 °C | -40 C | Cylinder Threaded - M18 | LED | 3 |
 Omron Automation and Safety | Unshielded | 25 Hz | 2-Wire SCR-NO | Connector | Inductive | 20 VAC | 264 VAC | IP67 | Nickel-Plated Brass | 10 mm | 0.394 in | 85 °C | -40 C | Cylinder Threaded - M18 | LED | |
Omron Automation and Safety | Shielded | 25 Hz | 2-Wire SCR-NO | Cable Leads | Inductive | 20 VAC | 264 VAC | IP67 | Nickel-Plated Brass | 10 mm | 0.394 in | 85 °C | -40 C | Cylinder Threaded - M30 | LED | |
Omron Automation and Safety | Unshielded | 200 Hz | PNP-NO | Connector | Inductive | 10 VDC | 55 V | IP67 | Nickel-Plated Brass | 10 mm | 0.394 in | 85 °C | -40 C | Cylinder Threaded - M18 | LED | 3 |
 Omron Automation and Safety | Unshielded | 25 Hz | 2-Wire SCR-NO | Cable Leads | Inductive | 20 VAC | 264 VAC | IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 4 NEMA 6 | Nickel-Plated Brass | 10 mm | 0.394 in | 85 °C | -40 C | Cylinder Threaded - M18 | LED | |
Omron Automation and Safety | Unshielded | 200 Hz | 3-Wire NPN-NO | Cable Leads | Inductive | 10 VDC | 55 V | IP67 | Nickel-Plated Brass | 10 mm | 0.394 in | 85 °C | -40 C | Cylinder Threaded - M18 | LED | |
 Omron Automation and Safety | Unshielded | 200 Hz | 3-Wire NPN-NO | Connector | Inductive | 10 VDC | 55 V | IP67 | Nickel-Plated Brass | 10 mm | 0.394 in | 85 °C | -40 C | Cylinder Threaded - M18 | LED |
