70A1 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

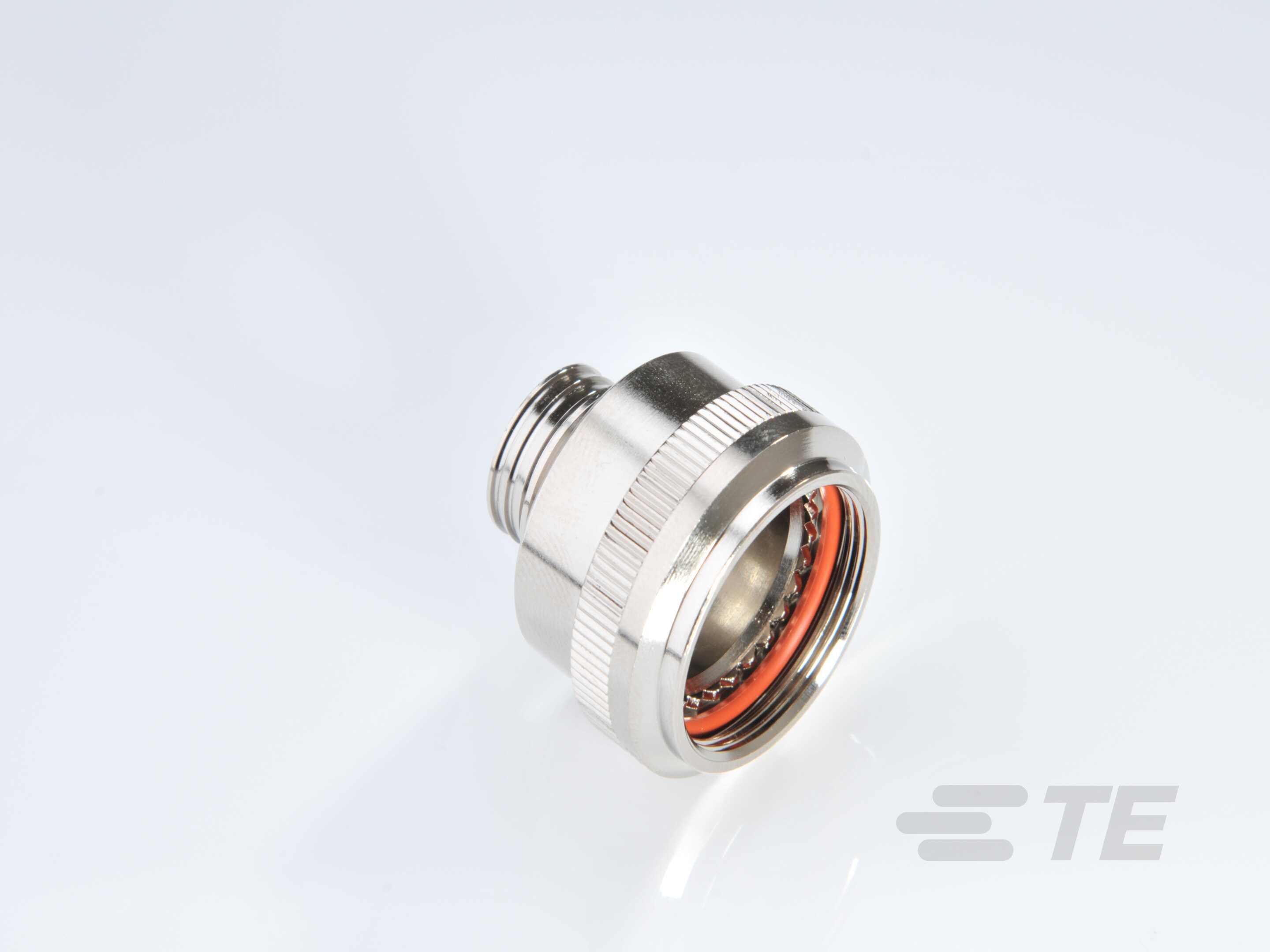

CONN BACKSHELL SZ8 1/2-20 UNF

Part	For Use With/Related Products	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Shell Size - Insert	Color	Type	Material	Plating	Cable Exit	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Primary Material	Shielding	Thread Size	Shell Size - Insert [custom]	Cable Opening [Max]	Cable Opening [Min]	Diameter - Outside [diameter]
TE Connectivity AMP Connectors 70A1-08-04-1-B	MIL-CTL-26482 Series II MIL-DTL-83723 Series I III	6.35 mm	0.25 in	0.535 in	13.6 mm	8	Olive Drab	Backshell	Aluminum	Cadmium	180 °	0.614 in	15.6 mm	Metal	Unshielded	1/2-20 UNF
TE Connectivity AMP Connectors 70A1-10-04-1-B	MIL-CTL-26482 Series II MIL-DTL-83723 Series I III	6.35 mm	0.25 in	0.535 in	13.6 mm		Olive Drab	Backshell	Aluminum	Cadmium	180 °	0.732 in	18.6 mm	Metal	Unshielded	5/8-24 UNEF	10
TE Connectivity AMP Connectors 70A1-24-16-4-J	MIL-CTL-26482 Series II MIL-DTL-83723 Series I III	25.4 mm			31.1 mm	24	Silver	Backshell	Stainless Steel	Passivated	180 °	1.591 in	40.4 mm	Metal	Unshielded	1 7/16-18 UNEF		1.224 "	1 "
TE Connectivity AMP Connectors 70A1-14-08-1-B	MIL-CTL-26482 Series II MIL-DTL-83723 Series I III	12.7 mm	0.5 "	0.724 in	18.4 mm	14	Olive Drab	Backshell	Aluminum	Cadmium	180 °		0.98 in	Metal	Unshielded	7/8-20 UNEF				24.9 mm
TE Connectivity AMP Connectors 70A1-22-10-1-B	MIL-CTL-26482 Series II MIL-DTL-83723 Series I III	15.87 mm	0.625 in	0.972 in	24.7 mm	22	Olive Drab	Backshell	Aluminum	Cadmium	180 °	1.469 in	37.3 mm	Metal	Unshielded	1 5/16-18 UNEF
TE Connectivity AMP Connectors 70A1-14-06-1-B	MIL-CTL-26482 Series II MIL-DTL-83723 Series I III	9.52 mm	0.375 in	0.724 in	18.4 mm	14	Olive Drab	Backshell	Aluminum	Cadmium	180 °		0.98 in	Metal	Unshielded	7/8-20 UNEF				24.9 mm
TE Connectivity AMP Connectors 70A1-16-10-1-B	MIL-CTL-26482 Series II MIL-DTL-83723 Series I III	15.87 mm	0.625 in	0.972 in	24.7 mm	16	Olive Drab	Backshell	Aluminum	Cadmium	180 °	1.11 in	28.2 mm	Metal	Unshielded	1-20 UNEF
