CC-1-0910 Series

Manufacturer: Visual Communications Company - VCC

Catalog

PMI DIA .319" (8.10MM) Y/G 2V

Part	Wavelength - Peak	Current	Termination Style	Lens Style	Viewing Angle	Millicandela Rating	Panel Cutout Shape	Panel Cutout Dimensions	Panel Cutout Dimensions	Voltage	Lamp Color	Lens Size	Lens Size	Type	Voltage [custom]	Voltage [custom]	Ratings

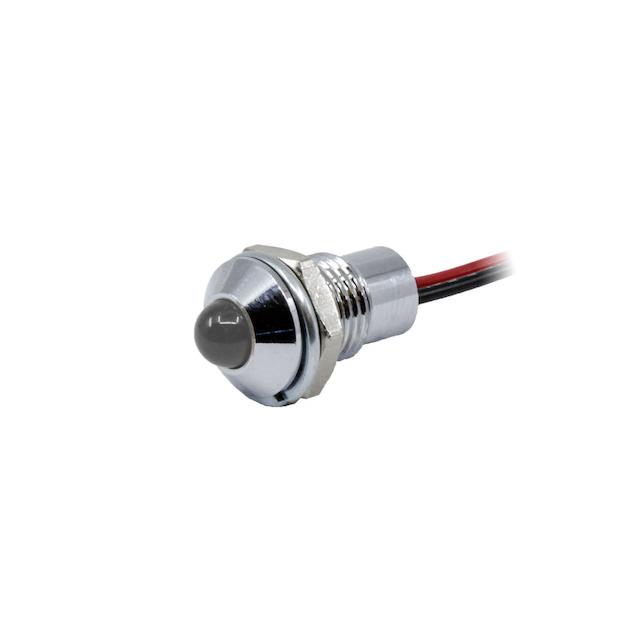

Visual Communications Company - VCC CC-1-0910-0000-I	574nm Green 590nm Yellow	20mA Green 20mA Yellow	Wire Leads - 6.000" (152.40mm)	Round with Domed Top	60 °	168 mcd 198 mcd	Round	0.32 "	8.1 mm	2 V 2.1 V	Green Yellow	5 mm	T-1 3/4	LED
Visual Communications Company - VCC CC-1-0910-9908-I	574nm Green 590nm Yellow	20mA Green 20mA Yellow	Wire Leads - 6.000" (152.40mm)	Round with Domed Top	60 °	168 mcd 198 mcd	Round	0.32 "	8.1 mm	2 V 2.1 V	Green Yellow	5 mm	T-1 3/4	LED	12 V	12 V	DC
Visual Communications Company - VCC CC-1-0910-9907-I	574nm Green 590nm Yellow	20mA Green 20mA Yellow	Wire Leads - 6.000" (152.40mm)	Round with Domed Top	60 °	168 mcd 198 mcd	Round	0.32 "	8.1 mm	2 V 2.1 V 5 V 5 V	Green Yellow	5 mm	T-1 3/4	LED			DC
Visual Communications Company - VCC CC-1-0910-9914-I	574nm Green 590nm Yellow	20mA Green 20mA Yellow	Wire Leads - 6.000" (152.40mm)	Round with Domed Top	60 °	168 mcd 198 mcd	Round	0.32 "	8.1 mm	2 V 2.1 V 60 V	Green Yellow	5 mm	T-1 3/4	LED			DC
Visual Communications Company - VCC CC-1-0910-9912-I	574nm Green 590nm Yellow	20mA Green 20mA Yellow	Wire Leads - 6.000" (152.40mm)	Round with Domed Top	60 °	168 mcd 198 mcd	Round	0.32 "	8.1 mm	2 V 2.1 V 48 V 48 V	Green Yellow	5 mm	T-1 3/4	LED			DC
Visual Communications Company - VCC CC-1-0910-9920-I	574nm Green 590nm Yellow	20mA Green 20mA Yellow	Wire Leads - 6.000" (152.40mm)	Round with Domed Top	60 °	168 mcd 198 mcd	Round	0.32 "	8.1 mm	2 V 2.1 V 120 V 120 V	Green Yellow	5 mm	T-1 3/4	LED			AC
