MAX40242 Series

Catalog

EVAL OPAMP MAX40242

Part	Utilized IC / Part	Output Type	Amplifier Type	Channels per IC	Supplied Contents	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Current - Supply (Main IC)	Board Type	Slew Rate	Current - Output / Channel	Current - Input Bias	Gain Bandwidth Product	Voltage - Input Offset	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply Span (Min) [Min]	Package / Case	Current - Supply	Mounting Type	-3db Bandwidth	Number of Circuits	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Voltage - Supply Span (Max) [Max]

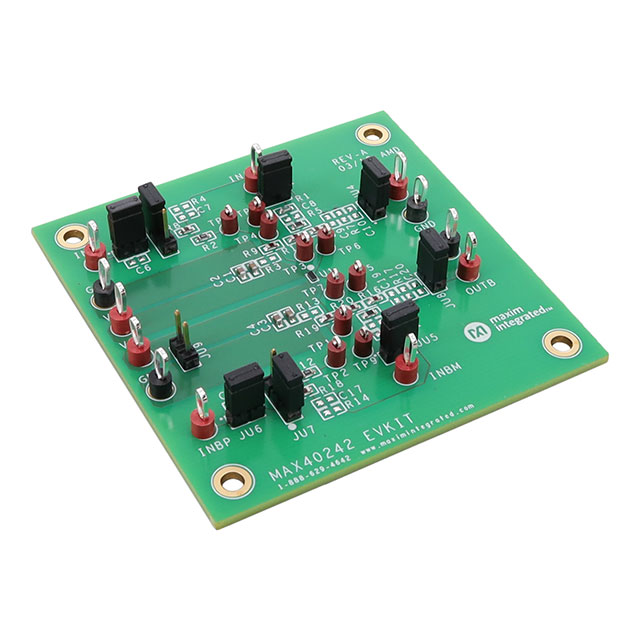

Analog Devices Inc./Maxim Integrated MAX40242EVKIT#	MAX40242	Rail-to-Rail Single-Ended	General Purpose	2 - Dual	Board(s)	-1.35 V 2.7 V	10 V 20 V	1.2 mA	Fully Populated	8 V/µs	95 mA
Analog Devices Inc./Maxim Integrated MAX40242ANA+		Rail-to-Rail	General Purpose							8 V/µs	95 mA	0.02 pA	10 MHz	50 µV	125 °C	-40 °C	2.7 V	8-XFBGA WLBGA	1.2 mA	Surface Mount	1 MHz	2	1.63	0.83	8-WLP	20 V
Analog Devices Inc./Maxim Integrated MAX40242ANA+T		Rail-to-Rail	General Purpose							8 V/µs	95 mA	0.02 pA	10 MHz	50 µV	125 °C	-40 °C	2.7 V	8-XFBGA WLBGA	1.2 mA	Surface Mount	1 MHz	2	1.63	0.83	8-WLP	20 V
