700DP7 Series

Manufacturer: E-Switch

Catalog

SWITCH PUSHBUTTON DPDT 3A 120V

Part	Mechanical Life	Electrical Life	Actuator Type	Actuator Marking	Voltage Rating - AC	Current Rating (Amps)	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Color - Actuator/Cap	Switch Function	Circuit	Type	Mounting Type	Panel Cutout Dimensions [diameter]
E-Switch 700DP7B20VS2QEC1BLK	50000 Cycles	50000 Cycles	Button Round	No Marking	120 V	3 A	PC Pin	85 °C	-30 ░C	28 V	Black	On-Mom	DPDT	Standard	Through Hole

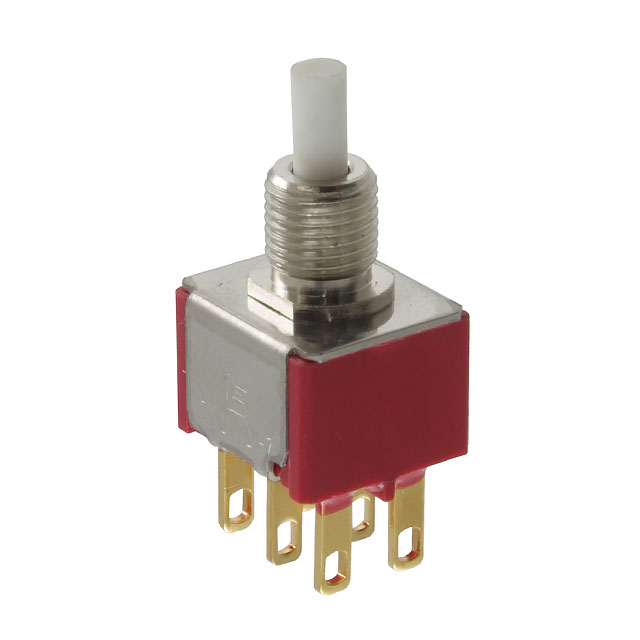

E-Switch 700DP7B11M1RE	50000 Cycles	50000 Cycles	Plunger Round	No Marking	20 V	0.4 VA	Solder Lug	85 °C	-30 ░C	20 V	White	On-Mom	DPDT	Standard	Panel Mount Rear	0.25 in
E-Switch 700DP7B20M6RE	50000 Cycles	50000 Cycles	Plunger Round	No Marking	20 V	0.4 VA	PC Pin	85 °C	-30 ░C	20 V	White	On-Mom	DPDT	Standard	Right Angle Through Hole
E-Switch 700DP7B10VS2REC1BLK	50000 Cycles	50000 Cycles	Button Round	No Marking	20 V	0.4 VA	PC Pin	85 °C	-30 ░C	20 V	Black	On-Mom	DPDT	Standard	Panel Mount Rear	0.25 in
E-Switch 700DP7B10M6QEC1BLK	50000 Cycles	50000 Cycles	Button Round	No Marking	120 V	3 A	PC Pin	85 °C	-30 ░C	28 V	Black	On-Mom	DPDT	Standard	Panel Mount Rear Right Angle	0.25 in

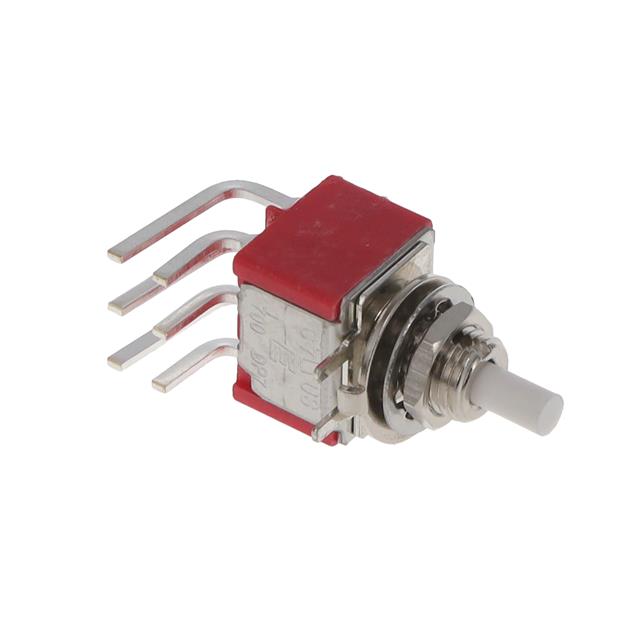

E-Switch 700DP7B10M6QEH	50000 Cycles	50000 Cycles	Plunger Round	No Marking	120 V	3 A	PC Pin	85 °C	-30 ░C	28 V	White	On-Mom	DPDT	Standard	Panel Mount Rear Right Angle	0.25 in

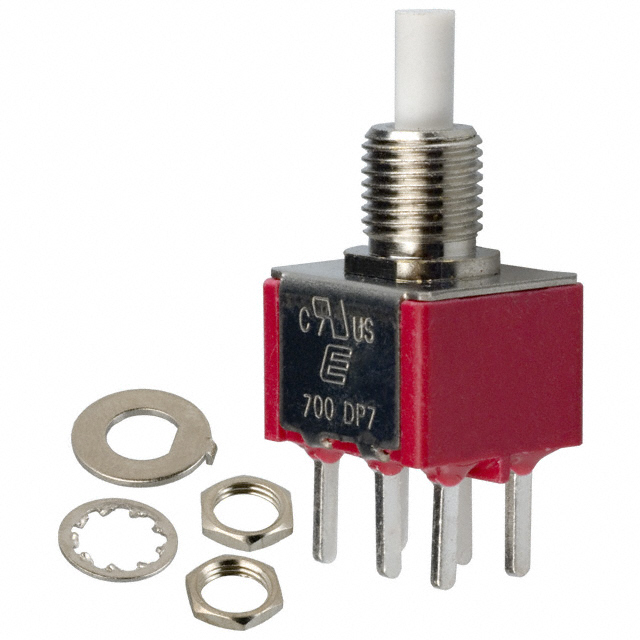

E-Switch 700DP7B10M2QEH	50000 Cycles	50000 Cycles	Plunger Round	No Marking	120 V	3 A	PC Pin	85 °C	-30 ░C	28 V	White	On-Mom	DPDT	Standard	Panel Mount Rear	0.25 in

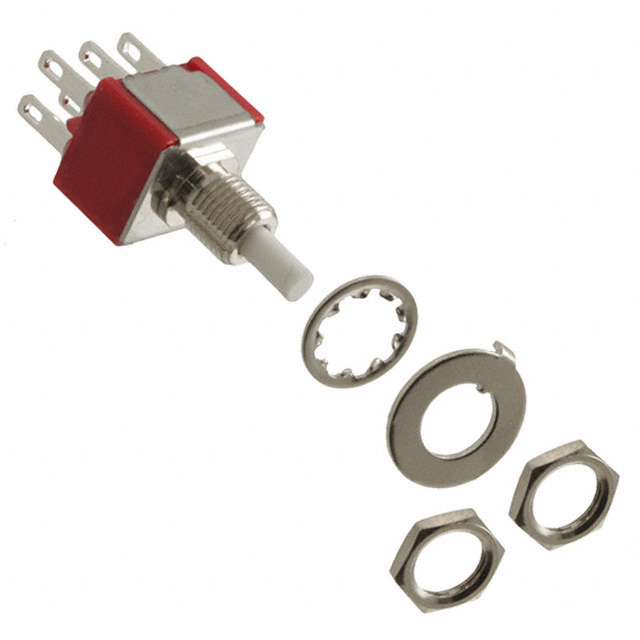

E-Switch 700DP7B10M1QE	50000 Cycles	50000 Cycles	Plunger Round	No Marking	120 V	3 A	Solder Lug	85 °C	-30 ░C	28 V	White	On-Mom	DPDT	Standard	Panel Mount Rear	0.25 in
E-Switch 700DP7B11M1QEH	50000 Cycles	50000 Cycles	Plunger Round	No Marking	120 V	3 A	Solder Lug	85 °C	-30 ░C	28 V	White	On-Mom	DPDT	Standard	Panel Mount Rear	0.25 in
E-Switch 700DP7B10M1REC2RED	50000 Cycles	50000 Cycles	Button Round	No Marking	20 V	0.4 VA	Solder Lug	85 °C	-30 ░C	20 V	Red	On-Mom	DPDT	Standard	Panel Mount Rear	0.25 in
