RVW4GD1 Series
Manufacturer: E-Switch
Beta
⌘K

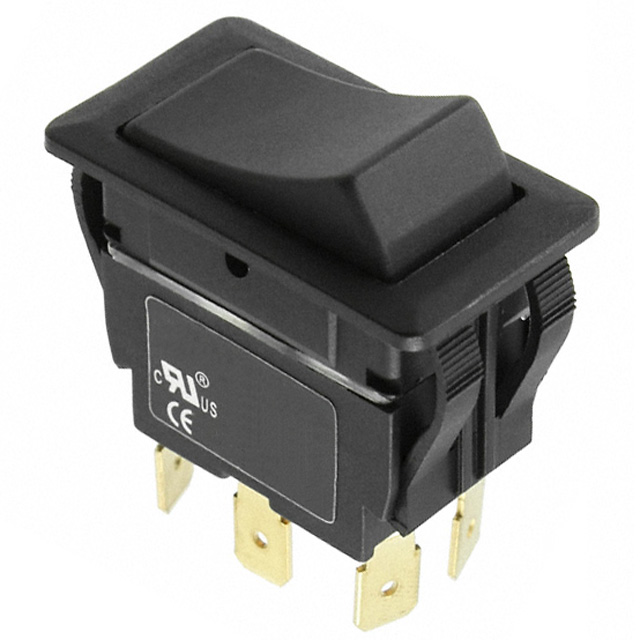

ROCKER SWITCH, NON ILLUMINATED, DPST, ON-ON, BLACK, PANEL MOUNT, 20 A
| Part | Electrical Life | Ingress Protection | Actuator Marking | Circuit | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Switch Function | Mounting Type | Color - Actuator/Cap | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Current Rating (Amps) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 6000 Cycles | IP54 - Dust Protected Water Resistant | No Marking | DPST | 21 mm | 36.8 mm | On-On | Panel Mount Snap-In | Black | Concave (Curved) | 55 °C | -20 ░C | 125 V | 20 A | Quick Connect - 0.250" (6.3mm) |
