A20L0C-P Series

Manufacturer: ODU

Catalog

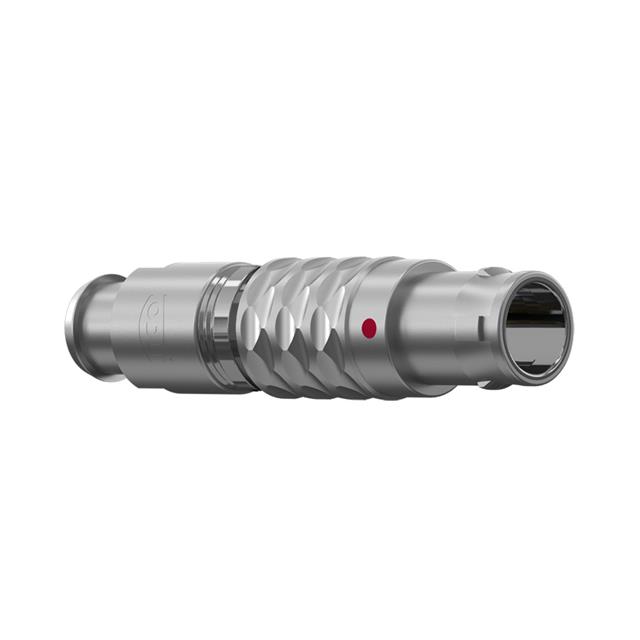

ODU MINI-SNAP BREAK-AWAY PLUG, S

Part	Contact Material	Fastening Type	Color	Cable Opening	Cable Opening [Max]	Cable Opening [Min]	Mounting Type	Shell Material	Applications	Features	Shielding	Voltage Rating	Connector Type	Backshell Material, Plating	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Shell Finish	Number of Positions	Current Rating (Amps)	Ingress Protection	Contact Finish - Mating	Primary Material	Cable Opening [Max]	Cable Opening [Min]	Termination
ODU A20L0C-P06MCC0-520S	Brass	Push-Pull	Silver	4 mm 5.2 mm	0.205 in	0.157 in	Free Hanging (In-Line)	Brass	Industrial Medical Military Testing Equipment & Measurement	Backshell Strain Relief	Unshielded	300 VDC	Plug Male Pins	Brass Chrome over Nickel	Polyetheretherketone (PEEK)	120 °C	-40 C	Chrome over Nickel	6	4 A	IP50 - Dust Protected	Gold	Metal
ODU A20L0C-P02MJG0-420S	Brass	Push-Pull	Silver				Free Hanging (In-Line)	Brass	Industrial Medical Military Testing Equipment & Measurement	Backshell Strain Relief	Unshielded	500 V	Plug Male Pins	Brass Chrome over Nickel	Polyetheretherketone (PEEK)	120 °C	-40 C	Chrome over Nickel	2	7.5 A	IP50 - Dust Protected	Gold	Metal
ODU A20L0C-P09MCC0-560S	Brass	Push-Pull	Silver		0.22 in	0.197 in	Free Hanging (In-Line)	Brass	Industrial Medical Military Testing Equipment & Measurement	Backshell Strain Relief	Unshielded	200 V	Plug Male Pins	Brass Chrome over Nickel	Polyetheretherketone (PEEK)	120 °C	-40 C	Chrome over Nickel	9	4 A	IP50 - Dust Protected	Gold	Metal	5.6 mm	5 mm
ODU A20L0C-P05MFG0-420S	Brass	Push-Pull	Silver				Free Hanging (In-Line)	Brass	Industrial Medical Military Testing Equipment & Measurement	Backshell Strain Relief	Unshielded	200 V	Plug Male Pins	Brass Chrome over Nickel	Polyetheretherketone (PEEK)	120 °C	-40 C	Chrome over Nickel	5	7.5 A	IP50 - Dust Protected	Gold	Metal
ODU A20L0C-P06MCC0-420S	Brass	Push-Pull	Silver				Free Hanging (In-Line)	Brass	Industrial Medical Military Testing Equipment & Measurement	Backshell Strain Relief	Unshielded	300 VDC	Plug Male Pins	Brass Chrome over Nickel	Polyetheretherketone (PEEK)	120 °C	-40 C	Chrome over Nickel	6	4 A	IP50 - Dust Protected	Gold	Metal
ODU A20L0C-P04MFG0-520S	Brass	Push-Pull	Silver	4 mm 5.2 mm	0.205 in	0.157 in	Free Hanging (In-Line)	Brass	Industrial Medical Military Testing Equipment & Measurement	Backshell Strain Relief	Unshielded	300 VDC	Plug Male Pins	Brass Chrome over Nickel	Polyetheretherketone (PEEK)	120 °C	-40 C	Chrome over Nickel	4	7.5 A	IP50 - Dust Protected	Gold	Metal
ODU A20L0C-P09MCC0-420S	Brass	Push-Pull	Silver				Free Hanging (In-Line)	Brass	Industrial Medical Military Testing Equipment & Measurement	Backshell Strain Relief	Unshielded	200 V	Plug Male Pins	Brass Chrome over Nickel	Polyetheretherketone (PEEK)	120 °C	-40 C	Chrome over Nickel	9	4 A	IP50 - Dust Protected	Gold	Metal
ODU A20L0C-P03PJH0-420S	Brass	Push-Pull	Silver				Free Hanging (In-Line)	Brass	Industrial Medical Military Testing Equipment & Measurement	Backshell Strain Relief	Unshielded	200 V	Plug Male Pins	Brass Chrome over Nickel	Polyetheretherketone (PEEK)	120 °C	-40 C	Chrome over Nickel		10 A	IP50 - Dust Protected	Gold	Metal			Crimp
ODU A20L0C-P10MCC9-520S	Brass	Push-Pull	Silver	4 mm 5.2 mm	0.205 in	0.157 in	Free Hanging (In-Line)	Brass	Industrial Medical Military Testing Equipment & Measurement	Backshell Strain Relief	Unshielded	200 V	Plug Male Pins	Brass Chrome over Nickel	Polyetheretherketone (PEEK)	120 °C	-40 C	Chrome over Nickel	10	4 A	IP50 - Dust Protected	Gold	Metal
ODU A20L0C-P07MCC0-420S	Brass	Push-Pull	Silver				Free Hanging (In-Line)	Brass	Industrial Medical Military Testing Equipment & Measurement	Backshell Strain Relief	Unshielded	300 VDC	Plug Male Pins	Brass Chrome over Nickel	Polyetheretherketone (PEEK)	120 °C	-40 C	Chrome over Nickel	7	4 A	IP50 - Dust Protected	Gold	Metal
