CS1000M Series
Manufacturer: EXCELSYS / Advanced Energy
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
AC/DC CONVERTER 48V 1000W
| Part | Power (Watts) | Number of Outputs | Standard Number | Mounting Type | Efficiency | Features | Applications | Size / Dimension Length | Size / Dimension Height | Size / Dimension Width | Approval Agency | Current - Output 1 | Voltage - Input (AC) Minimum | Voltage - Input (AC) Maximum | Type | Voltage - Output 1 | Voltage - Isolation | Operating Temperature (Max) | Operating Temperature (Min) | Minimum Load Required |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

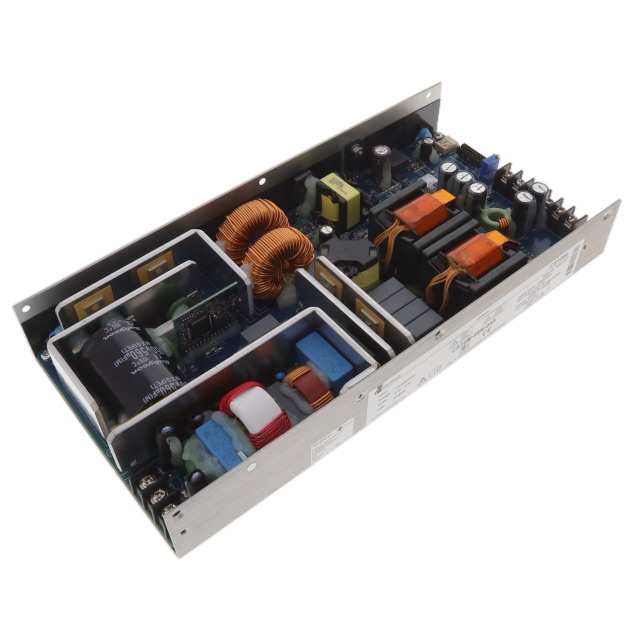

 EXCELSYS / Advanced Energy | 1 kW | 1 | 60601-1 62368-1 | Chassis Mount | 95 % | Adjustable Output PFC PMBus™ Remote Sense Universal Input | ITE (Commercial) Medical | 10.3 in | 1.54 in | 5 in | CSA EN IEC UL | 20.8 A | 85 VAC | 264 V | Enclosed | 48 V | 4000 Vpk | 85 °C | -40 °C | Yes |

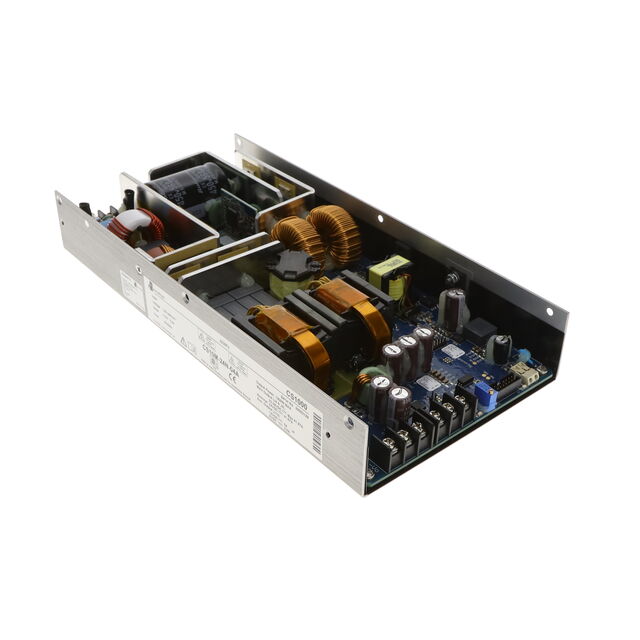

 EXCELSYS / Advanced Energy | 1 kW | 1 | 60601-1 62368-1 | Chassis Mount | 94 % | Adjustable Output PFC PMBus™ Remote Sense Universal Input | ITE (Commercial) Medical | 10.3 in | 1.54 in | 5 in | CSA EN IEC UL | 41.6 A | 85 VAC | 264 V | Enclosed | 24 V | 4000 Vpk | 85 °C | -40 °C | Yes |
