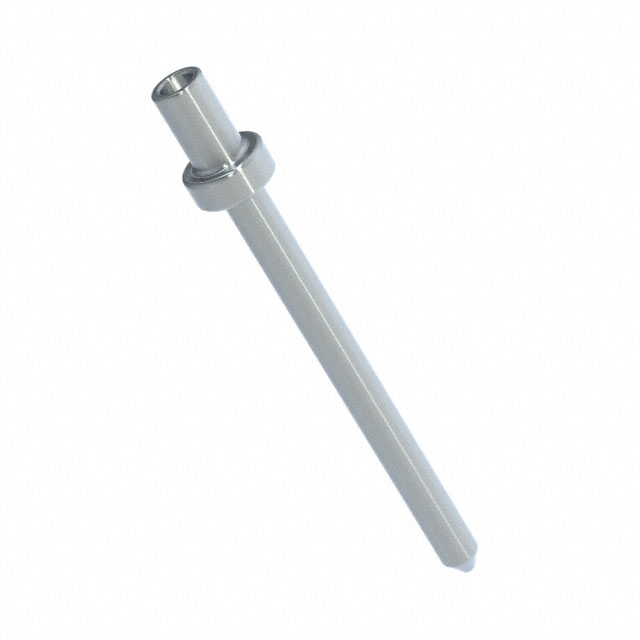

3115-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN CIRC
| Part | Contact Material | Termination | Terminal Style | Contact Finish | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Above Flange | Length - Above Flange | Flange Diameter | Flange Diameter | Insulation | Length - Below Flange [x] | Length - Below Flange [x] | Board Thickness | Board Thickness | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Terminal Type | Mounting Type | Length - Overall [x] | Length - Overall [x] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Brass Alloy | Swage | Single End | Tin | 0.89 mm | 0.035 in | 0.3 in | 7.62 mm | 0.05 in | 1.27 mm | Non-Insulated | 0.051 " | 1.3 mm | 0.79 mm | 0.031 in | 0.64 mm | 0.025 in | PC Pin | Through Hole | 5.61 mm | 0.221 in | 200 Áin | 5.08 Ám |
 Mill-Max Manufacturing Corp. | Brass Alloy | Swage | Single End | Gold | 0.89 mm | 0.035 in | 0.3 in | 7.62 mm | 0.05 in | 1.27 mm | Non-Insulated | 0.051 " | 1.3 mm | 0.79 mm | 0.031 in | 0.64 mm | 0.025 in | PC Pin | Through Hole | 9.42 mm | 0.371 in | 50 µin | 1.27 µm |
 Mill-Max Manufacturing Corp. | Brass Alloy | Swage | Single End | Gold | 0.89 mm | 0.035 in | 0.3 in | 7.62 mm | 0.05 in | 1.27 mm | Non-Insulated | 0.051 " | 1.3 mm | 0.79 mm | 0.031 in | 0.64 mm | 0.025 in | PC Pin | Through Hole | 9.42 mm | 0.371 in | 10 Áin | 0.25 Ám |
 Mill-Max Manufacturing Corp. | Brass Alloy | Swage | Single End | Tin-Lead | 0.89 mm | 0.035 in | 0.3 in | 7.62 mm | 0.05 in | 1.27 mm | Non-Insulated | 0.051 " | 1.3 mm | 0.79 mm | 0.031 in | 0.64 mm | 0.025 in | PC Pin | Through Hole | 9.42 mm | 0.371 in | 200 Áin | 5.08 Ám |
