PPTC381 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

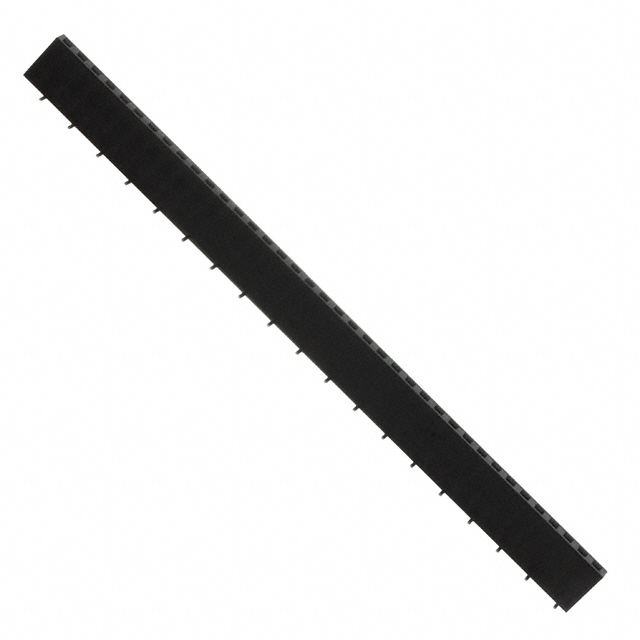

CONN HDR 38POS 0.1 TIN SMD
| Part | Contact Material | Insulation Material | Contact Shape | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Contact Type | Connector Type | Mounting Type | Fastening Type | Number of Positions | Material Flammability Rating | Contact Finish - Post | Current Rating (Amps) | Termination | Number of Rows | Insulation Height | Insulation Height | Insulation Color | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Phosphor Bronze | Polyester | Square | 250 V | -40 C | 105 ░C | 0.1 " | 2.54 mm | Female Socket | Header Top or Bottom Entry | Surface Mount | Push-Pull | 38 | UL94 V-0 | Tin | 3 A | Solder | 1 | 0.28 in | 7.1 mm | Black | All |
