GK0WCM-P Series
Manufacturer: ODU
Beta
⌘K

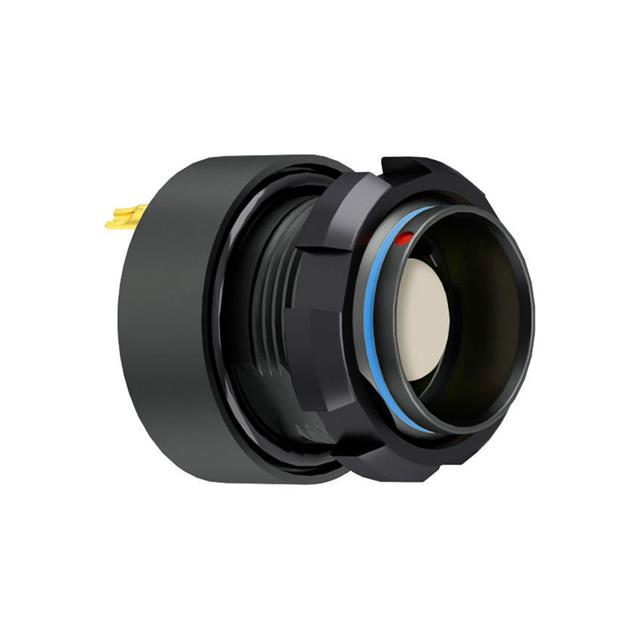

ODU AMC HD RECEPT, STY K, SZ 0,
| Part | Shielding | Primary Material | Contact Finish - Mating | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Number of Positions [custom] | Number of Positions [custom] | Connector Type | Shell Size - Insert [custom] | Mounting Feature | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Insert Material | Shell Finish | Shell Material | Current Rating (Amps) | Orientation | Fastening Type | Color | Mounting Type | Number of Positions | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Shielded | Metal | Gold | IP68 IP69K | -51 °C | 125 °C | Industrial Medical Military | 2 | 10 | Receptacle Female Sockets | 0 | Bulkhead - Front Side Nut | Copper Alloy | 50 µin | 1.27 µm | UL94 V-0 | Polyetheretherketone (PEEK) | Ruthenium over Electroless Nickel | Brass | 1 A 5 A | C | Detent Lock Push-Pull | Black Silver | Panel Mount | |||
Shielded | Metal | Gold | IP68 IP69K | -51 °C | 125 °C | Industrial Medical Military | Receptacle Female Sockets | 0 | Bulkhead - Front Side Nut | Copper Alloy | 50 µin | 1.27 µm | UL94 V-0 | Polyetheretherketone (PEEK) | Ruthenium over Electroless Nickel | Brass | 1 A 5 A | C | Detent Lock Push-Pull | Black Silver | Panel Mount | 9 | ||||
Shielded | Metal | Gold | IP68 IP69K | -51 °C | 125 °C | Industrial Medical Military | Receptacle Female Sockets | 0 | Bulkhead - Front Side Nut | Copper Alloy | 50 µin | 1.27 µm | UL94 V-0 | Polyetheretherketone (PEEK) | Ruthenium over Electroless Nickel | Brass | C | Detent Lock Push-Pull | Black Silver | Panel Mount Through Hole | 16 | Solder | ||||
Shielded | Metal | Gold | IP68 IP69K | -51 °C | 125 °C | Industrial Medical Military | Receptacle Female Sockets | 0 | Bulkhead - Front Side Nut | Copper Alloy | 50 µin | 1.27 µm | UL94 V-0 | Polyetheretherketone (PEEK) | Ruthenium over Electroless Nickel | Brass | 1 A 5 A | C | Detent Lock Push-Pull | Black Silver | Panel Mount Through Hole | 9 | Solder | |||
Shielded | Metal | Gold | IP68 IP69K | -51 °C | 125 °C | Industrial Medical Military | 2 | 10 | Receptacle Female Sockets | 0 | Bulkhead - Front Side Nut | Copper Alloy | 50 µin | 1.27 µm | UL94 V-0 | Polyetheretherketone (PEEK) | Ruthenium over Electroless Nickel | Brass | 1 A 5 A | C | Detent Lock Push-Pull | Black Silver | Panel Mount Through Hole | Solder |
