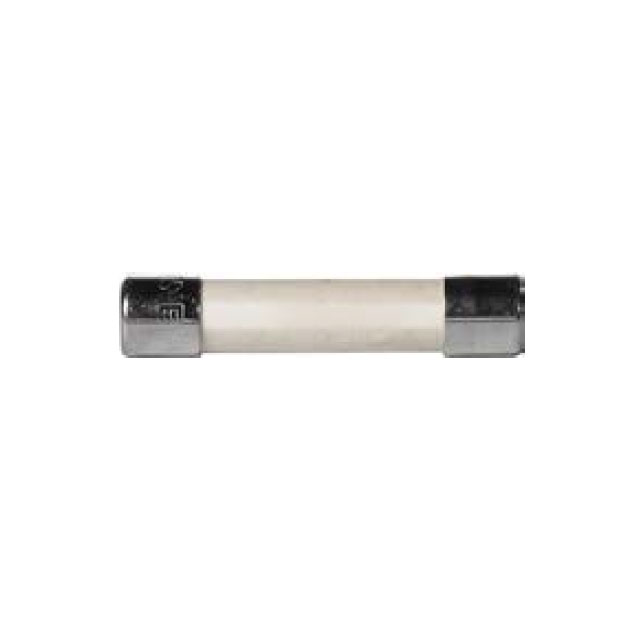

SUT-H-6332 Series

Catalog

FUSE, CARTRIDGE, TIME DELAY, 15 A, 250 V, 6.3MM X 32MM, 0.25" X 1.25", SUT-H SERIES

Part	Voltage Rating - DC	Response Time	Mounting Type	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Melting I²t	Current Rating (Amps)	Voltage Rating - AC	Fuse Type	Breaking Capacity @ Rated Voltage	Package / Case [x]	Package / Case	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Melting I˛t	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]

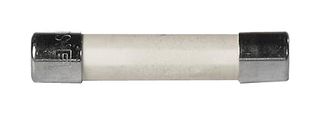

SCHURTER Inc. 8020.0604.H	100 V	Slow Blow	Requires Holder	CE CSA cURus UL	85 °C	-40 C	1058 I²t	15 A	250 V	Cartridge Ceramic	500 A DC	0.25 in	3AB 3AG	31.8 mm	1.252 "	6.35 mm	0.25 "
SCHURTER Inc. 8020.0606.H	100 V	Slow Blow	Requires Holder	CE CSA cURus UL	85 °C	-40 C	5275 I²t	25 A	250 V	Cartridge Ceramic	500 A DC	0.25 in	3AB 3AG	31.8 mm	1.252 "	6.35 mm	0.25 "	5275
SCHURTER Inc. 8020.0607.H	100 V	Slow Blow	Requires Holder	CE CSA cURus UL	85 °C	-40 C	2475	30 A	250 V	Cartridge Ceramic	500 A DC	0.25 in	3AB 3AG	31.8 mm	1.252 "	6.35 mm	0.25 "	2475

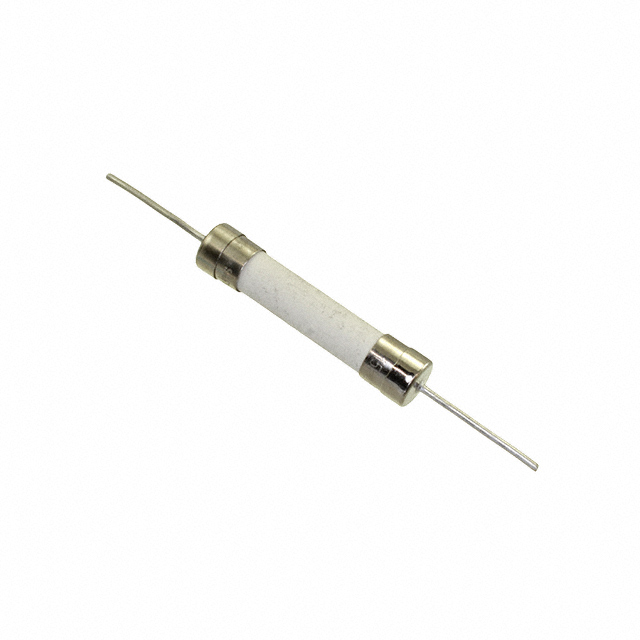

SCHURTER Inc. 8020.0602.H.PT	100 V	Slow Blow	Through Hole	CE CSA cURus UL	85 °C	-40 C	364	10 A	250 V	Cartridge Ceramic	500 A DC	0.25 "	3AB 3AG			6.85 mm			32.8 mm	0.27 in	1.291 in
SCHURTER Inc. 8020.0607.H.PT	100 V	Slow Blow	Through Hole	CE CSA cURus UL	85 °C	-40 C	2475	30 A	250 V	Cartridge Ceramic	500 A DC	0.25 "	3AB 3AG			6.85 mm			32.8 mm	0.27 in	1.291 in
SCHURTER Inc. 8020.0605.H	100 V	Slow Blow	Requires Holder	CE CSA cURus UL	85 °C	-40 C	3540 I²t	20 A	250 V	Cartridge Ceramic	500 A DC	0.25 in	3AB 3AG	31.8 mm	1.252 "	6.35 mm	0.25 "
SCHURTER Inc. 8020.0603.H	100 V	Slow Blow	Requires Holder	CE CSA cURus UL	85 °C	-40 C	788	12 Amps	250 V	Cartridge Ceramic	500 A DC	0.25 in	3AB 3AG	31.8 mm	1.252 "	6.35 mm	0.25 "	788
SCHURTER Inc. 8020.0609.H.PT	70 V	Slow Blow	Through Hole	CE CSA cURus UL	85 °C	-40 C	9908 I²t	50 A	250 V	Cartridge Ceramic	500 A DC	0.25 "	3AB 3AG			6.85 mm		9908	32.8 mm	0.27 in	1.291 in
SCHURTER Inc. 8020.0605.H.PT	100 V	Slow Blow	Through Hole	CE CSA cURus UL	85 °C	-40 C	3540 I²t	20 A	250 V	Cartridge Ceramic	500 A DC	0.25 "	3AB 3AG			6.85 mm		3540	32.8 mm	0.27 in	1.291 in
SCHURTER Inc. 8020.0606.H.PT	100 V	Slow Blow	Through Hole	CE CSA cURus UL	85 °C	-40 C	5275 I²t	25 A	250 V	Cartridge Ceramic	500 A DC	0.25 "	3AB 3AG			6.85 mm			32.8 mm	0.27 in	1.291 in
