173305 Series

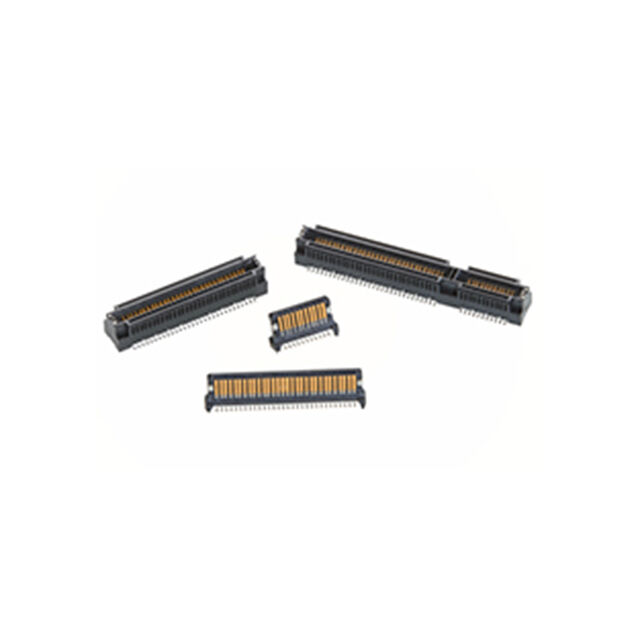

SpeedEdge Vertical Plug, 0.80mm Pitch, 1.40mm Height, 60 Circuits, UL94V-0, Black
Manufacturer: Molex
Catalog
SpeedEdge Vertical Plug, 0.80mm Pitch, 1.40mm Height, 60 Circuits, UL94V-0, Black
Beta
⌘K
SpeedEdge Vertical Plug, 0.80mm Pitch, 1.40mm Height, 60 Circuits, UL94V-0, Black
SpeedEdge Vertical Plug, 0.80mm Pitch, 1.40mm Height, 60 Circuits, UL94V-0, Black
SpeedEdge Vertical Plug, 0.80mm Pitch, 1.40mm Height, 60 Circuits, UL94V-0, Black
| Part | Contact Finish | Material - Insulation | Mounting Type | Termination | Number of Rows | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Features | Card Thickness | Card Thickness | Gender | Color | Card Type | Number of Positions/Bay/Row [custom] | Termination Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Gold | Liquid Crystal Polymer (LCP) | Surface Mount | Solder | 2 | Dual | -40 °C | 105 ░C | 0.8 mm | 0.031 in | Copper Alloy | 0.76 Ám | 30 Áin | 60 | Board Guide | 0.062 in | 1.57 mm | Male | Black | Non Specified - Dual Edge | ||
 Molex | Gold | Liquid Crystal Polymer (LCP) | Surface Mount | Solder | 2 | Dual | -40 °C | 105 ░C | 0.8 mm | 0.031 in | Copper Alloy | 0.76 Ám | 30 Áin | 60 | Board Guide | Male | Black | Fits Female Edgecards | 30 | 2 |
