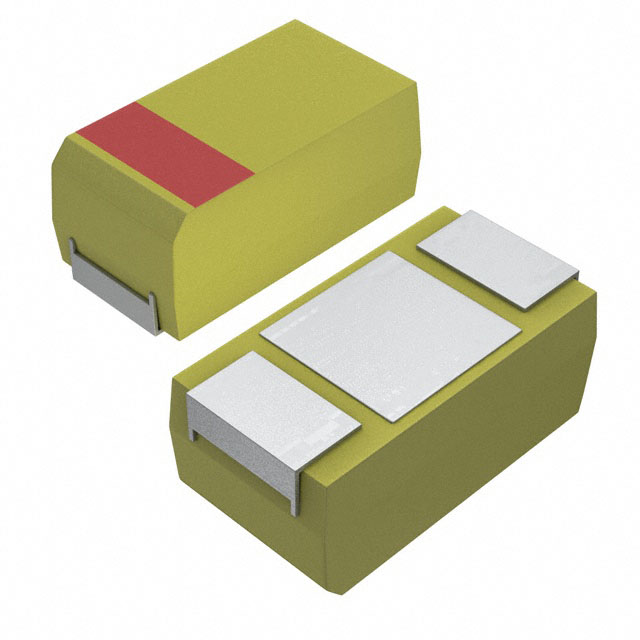

T495C Series

Manufacturer: KEMET

Catalog

CAP, TANTALUM, 3.3UF, 35V, 2312 ROHS COMPLIANT: YES

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Features	Mounting Type	Type	Tolerance	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Capacitance	ESR (Equivalent Series Resistance)	Package / Case	Qualification	Ratings	Grade
KEMET T495C335K035ATE550	3.2 mm	0.126 in	0.236 in	6 mm	General Purpose	Surface Mount	Molded	10 %	35 V	-55 C	125 °C	2000 Hrs	3.3 µF	550 mOhms	2312 (6032 Metric)
KEMET T495C226K016ATA1K5	3.2 mm	0.126 in	0.236 in	6 mm	Automotive	Surface Mount	Molded	10 %	16 V	-55 C	125 °C	2000 Hrs	22 µF	1.5 Ohm	2312 (6032 Metric)	AEC-Q200	AEC-Q200	Automotive
KEMET T495C227M006ATE200	3.2 mm	0.126 in	0.236 in	6 mm	General Purpose	Surface Mount	Molded	20 %	6.3 VDC	-55 C	125 °C	2000 Hrs	220 µF	200 mOhm	2312 (6032 Metric)
KEMET T495C475K035AHE500	3.2 mm	0.126 in	0.236 in	6 mm	General Purpose	Surface Mount	Molded	10 %	35 V	-55 C	125 °C	2000 Hrs	4.7 µF	500 mOhms	2312 (6032 Metric)
KEMET T495C686M016ATE180	3.2 mm	0.126 in	0.236 in	6 mm	General Purpose	Surface Mount	Molded	20 %	16 V	-55 C	125 °C	2000 Hrs	68 µF	180 mOhm	2312 (6032 Metric)
KEMET T495C226K010ATE350	3.2 mm	0.126 in	0.236 in	6 mm	General Purpose	Surface Mount	Molded	10 %	10 V	-55 C	125 °C	2000 Hrs	22 µF	350 mOhm	2312 (6032 Metric)
KEMET T495C157K004ATE250	3.2 mm	0.126 in	0.236 in	6 mm	General Purpose	Surface Mount	Molded	10 %	4 V	-55 C	125 °C	2000 Hrs	150 µF	250 mOhm	2312 (6032 Metric)
KEMET T495C106K016ATE450	3.2 mm	0.126 in	0.236 in	6 mm	General Purpose	Surface Mount	Molded	10 %	16 V	-55 C	125 °C	2000 Hrs	10 µF	450 mOhm	2312 (6032 Metric)
KEMET T495C335M035ATE550	3.2 mm	0.126 in	0.236 in	6 mm	General Purpose	Surface Mount	Molded	20 %	35 V	-55 C	125 °C	2000 Hrs	3.3 µF	550 mOhm	2312 (6032 Metric)
KEMET T495C106K025ATE300	3.2 mm	0.126 in	0.236 in	6 mm	General Purpose	Surface Mount	Molded	10 %	25 VDC	-55 C	125 °C	2000 Hrs	10 µF	300 mOhm	2312 (6032 Metric)
