HEP.2M Series
Manufacturer: LEMO
Beta
⌘K
CONN RCPT FMALE 19POS GOLD SLDR
| Part | Shell Finish | Connector Type | Current Rating (Amps) | Color | Contact Finish - Mating | Contact Material | Shell Size - Insert | Insert Material | Fastening Type | Shielding | Orientation | Shell Material | Mounting Type | Applications | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Features | Mounting Feature | Operating Temperature [Max] | Operating Temperature [Min] | Primary Material | Ingress Protection | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

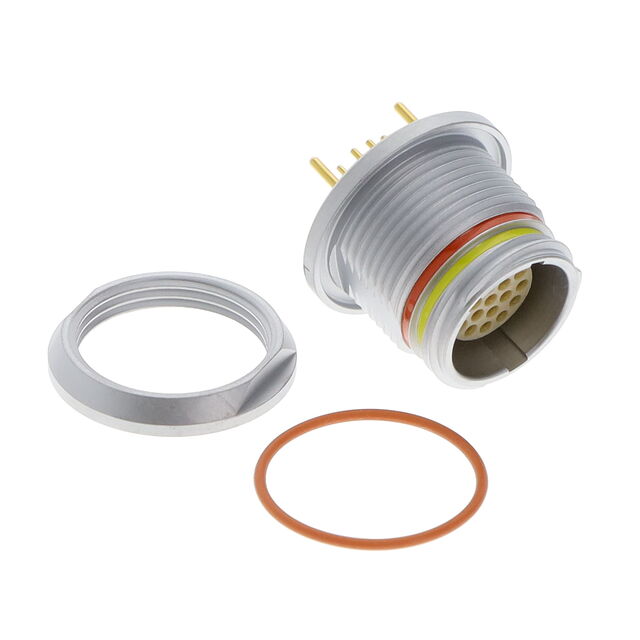

 LEMO | Chrome | Receptacle Female Sockets | 4 A | Silver | Gold | Bronze | 319 | Polyetheretherketone (PEEK) | Threaded | Shielded | P | Brass | Panel Mount Through Hole | Aerospace Automotive Aviation Military | 1.5 Ám | 59 Áin | 19 | Potted | Bulkhead - Front Side Nut | 80 °C | -20 ░C | Metal | IP68 - Dust Tight Waterproof | Solder |

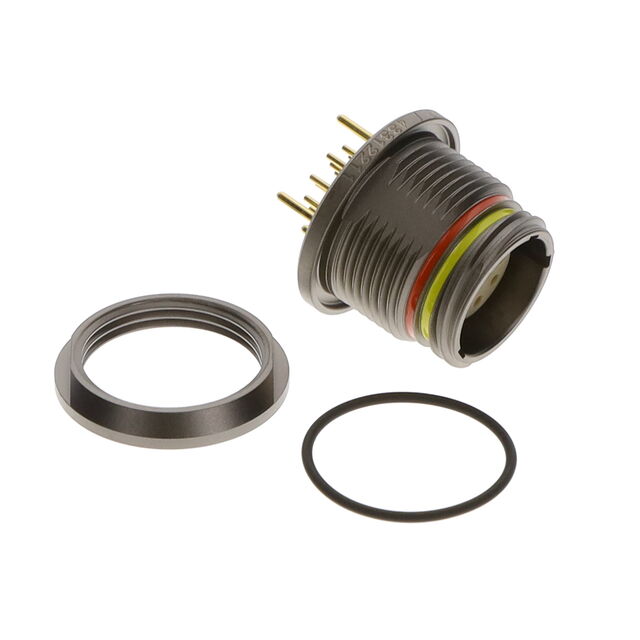

 LEMO | Nickel | Receptacle Female Sockets | 7 A | Gray | Gold | Bronze | 312 | Polyetheretherketone (PEEK) | Threaded | Shielded | P | Aluminum Alloy | Panel Mount Through Hole | Aerospace Automotive Aviation Military | 1.5 Ám | 59 Áin | 12 | Potted | Bulkhead - Front Side Nut | 80 °C | -20 ░C | Metal | IP68 - Dust Tight Waterproof | Solder |

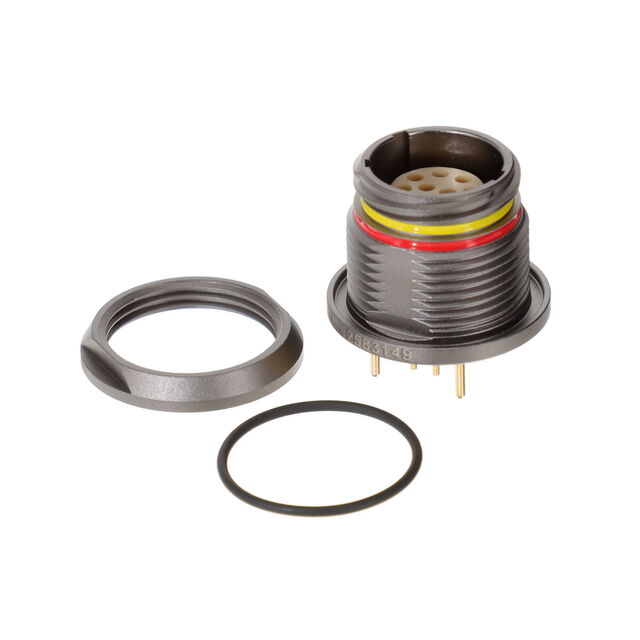

 LEMO | Nickel | Receptacle Female Sockets | 8 A | Gray | Gold | Bronze | 310 | Polyetheretherketone (PEEK) | Threaded | Shielded | P | Aluminum Alloy | Panel Mount Through Hole | Aerospace Automotive Aviation Military | 1.5 Ám | 59 Áin | 10 | Potted | Bulkhead - Front Side Nut | 80 °C | -20 ░C | Metal | IP68 - Dust Tight Waterproof | Solder |

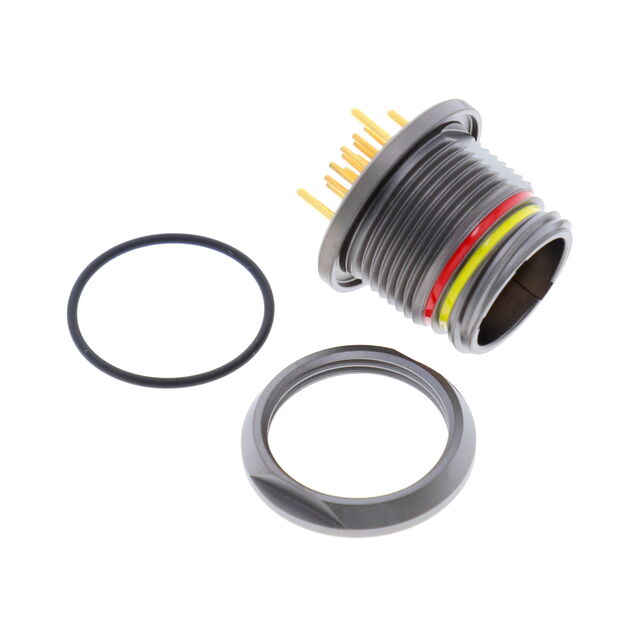

 LEMO | Nickel | Receptacle Female Sockets | 4 A | Gray | Gold | Bronze | 319 | Polyetheretherketone (PEEK) | Threaded | Shielded | P | Aluminum Alloy | Panel Mount Through Hole | Aerospace Automotive Aviation Military | 1.5 Ám | 59 Áin | 19 | Potted | Bulkhead - Front Side Nut | 80 °C | -20 ░C | Metal | IP68 - Dust Tight Waterproof | Solder |
